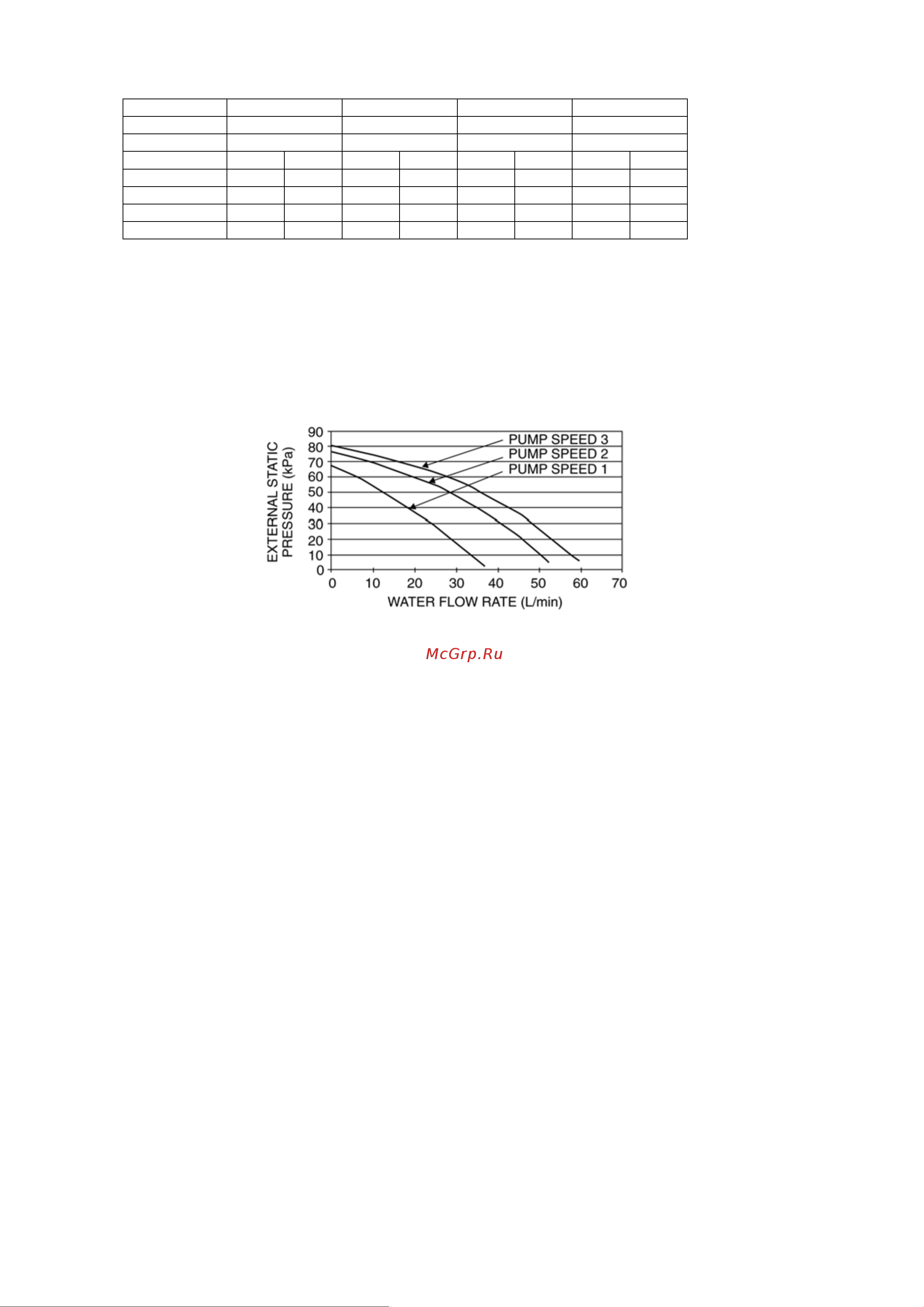

134
18.3 Cooling Capacity Table
MODELS WH-SDC09 WH-SDC12 WH-SDC14 WH-SDC16
IWC 12 12 12 12
LWC 7 7 7 7
Tamb TC IP TC IP TC IP TC IP
16 5.90 1.01 7.65 1.30 8.85 1.50 9.62 1.63
25 7.45 1.59 9.20 2.30 10.00 2.68 10.51 2.85
35 7.00 2.25 10.00 3.55 11.50 4.40 12.20 4.80
43 5.80 2.59 7.60 3.95 9.05 5.01 10.08 5.47
TC: Cooling Capacity (kW)
IP: Power Input (kW)
IWC: Inlet Water Condenser Temperature (°C)
LWC: Leaving Water Condenser Temperature (°C)
Tamb: Ambient Temperature (°C)
18.4 Hydraulic Pump Performance
