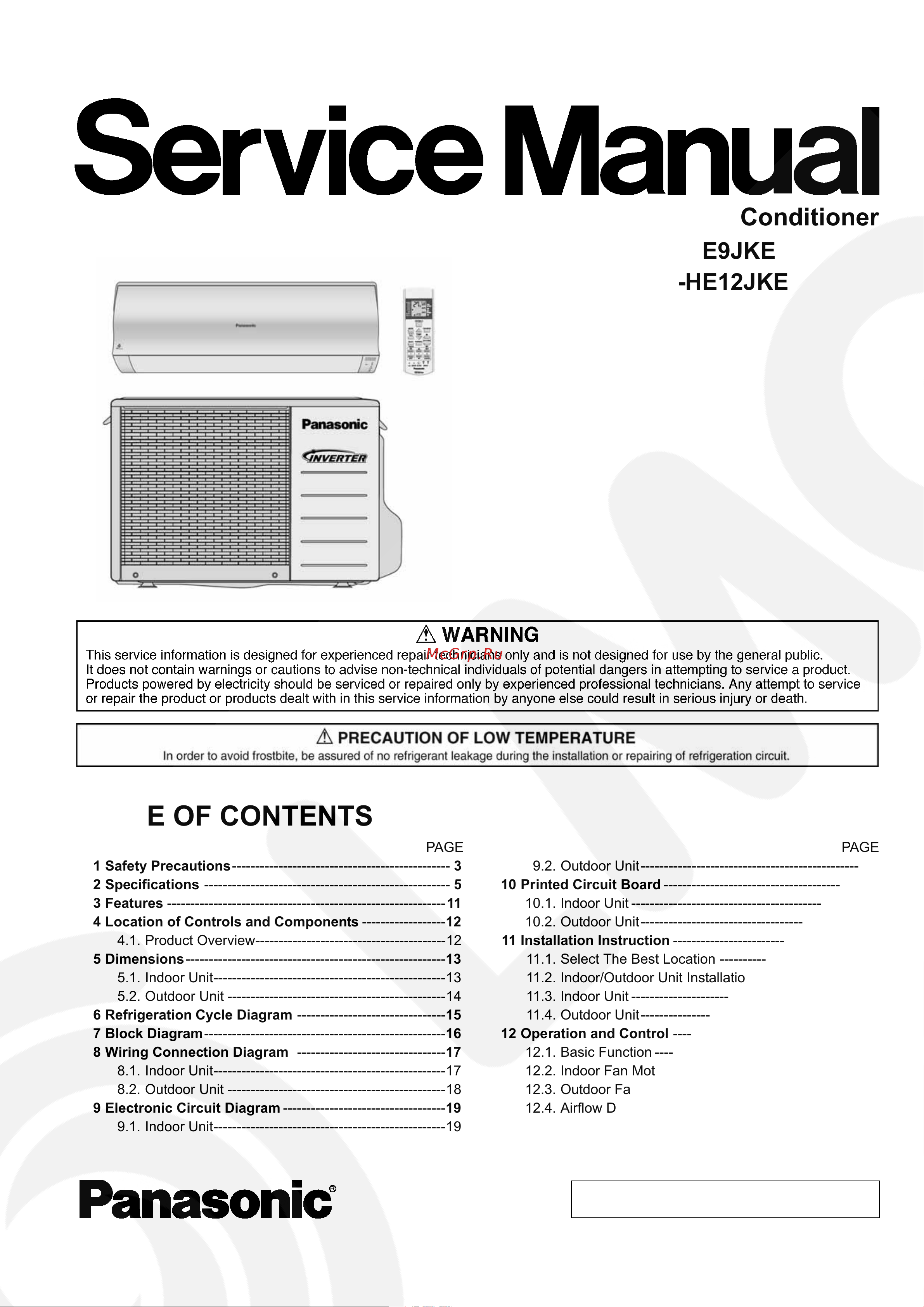

Panasonic CS-HE12JKE Сервис мануал онлайн
© Panasonic HA Air-Conditioning (M) Sdn. Bhd. 2009.
Unauthorized copying and distribution is a violation of law.
Order No. PHAAM0810076C2
Air Conditioner
CS-HE9JKE CU-HE9JKE
CS-HE12JKE CU-HE12JKE
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3
2 Specifications ----------------------------------------------------- 5
3Features------------------------------------------------------------11
4 Location of Controls and Components ------------------12
4.1. Product Overview-----------------------------------------12
5Dimensions--------------------------------------------------------13
5.1. Indoor Unit--------------------------------------------------13
5.2. Outdoor Unit -----------------------------------------------14
6 Refrigeration Cycle Diagram --------------------------------15
7 Block Diagram----------------------------------------------------16
8 Wiring Connection Diagram --------------------------------17
8.1. Indoor Unit--------------------------------------------------17
8.2. Outdoor Unit -----------------------------------------------18
9 Electronic Circuit Diagram -----------------------------------19
9.1. Indoor Unit--------------------------------------------------19
9.2. Outdoor Unit----------------------------------------------- 20
10 Printed Circuit Board ------------------------------------------ 21
10.1. Indoor Unit ------------------------------------------------- 21
10.2. Outdoor Unit----------------------------------------------- 22
11 Installation Instruction ---------------------------------------- 23
11.1. Select The Best Location ------------------------------ 23
11.2. Indoor/Outdoor Unit Installation Diagram ---------- 23
11.3. Indoor Unit ------------------------------------------------- 24
11.4. Outdoor Unit----------------------------------------------- 27
12 Operation and Control ---------------------------------------- 30
12.1. Basic Function -------------------------------------------- 30
12.2. Indoor Fan Motor Operation--------------------------- 31
12.3. Outdoor Fan Motor Operation ------------------------ 32
12.4. Airflow Direction Control-------------------------------- 33
Содержание
- Air conditioner 1
- Cs he9jke cu he9jke cs he12jke cu he12jke 1
- Table of contents 1
- Carry out test run to confirm that no abnormality occurs after the servicing then explain to user the operation care and maintenance as stated in instructions please remind the customer to keep the operating instructions for future reference 3
- Read the following safety precautions carefully before perform any servicing electrical work must be installed or serviced by a licensed electrician be sure to use the correct rating of the power plug and main circuit for the model installed the caution items stated here must be followed because these important contents are related to safety the meaning of each indication used is as below incorrect installation or servicing due to ignoring of the instruction will cause harm or damage and the seriousness is classified by the following indications 3
- Safety precautions 3
- The items to be followed are classified by the symbols 3
- Specifications 5
- Cooling capacities are based on indoor temperature of 27 c dry bulb 80 f dry bulb 19 c wet bulb 66 f wet bulb and outdoor air temperature of 35 c dry bulb 95 f dry bulb 24 c wet bulb 75 f wet bulb 2 heating capacities are based on indoor temperature of 20 c dry bulb 68 f dry bulb and outdoor air temperature of 7 c dry bulb 44 f dry bulb 6 c wet bulb 42 f wet bulb 3 heating low temperature capacity input power and cop measured at 230 v indoor temperature 20 c outdoor 2 1 c 4 heating extreme low temperature capacity input power and cop measured at 230 v indoor temperature 20 c outdoor 7 8 c 5 specifications are subjected to change without prior notice for further improvement 7
- Cooling capacities are based on indoor temperature of 27 c dry bulb 80 f dry bulb 19 c wet bulb 66 f wet bulb and outdoor air temperature of 35 c dry bulb 95 f dry bulb 24 c wet bulb 75 f wet bulb 2 heating capacities are based on indoor temperature of 20 c dry bulb 68 f dry bulb and outdoor air temperature of 7 c dry bulb 44 f dry bulb 6 c wet bulb 42 f wet bulb 3 heating low temperature capacity input power and cop measured at 230 v indoor temperature 20 c outdoor 2 1 c 4 heating extreme low temperature capacity input power and cop measured at 230 v indoor temperature 20 c outdoor 7 8 c 5 specifications are subjected to change without prior notice for further improvement 10
- Features 11
- Location of controls and components 12
- Product overview 12
- Indoor unit 21
- Printed circuit board 21
- Indoor outdoor unit installation diagram 23
- Installation instruction 23
- Select the best location 23
- How to fix installation plate 24
- Indoor unit 24
- Indoor unit installation 24
- To drill a hole in the wall and install a sleeve of piping 24
- Connect the cable to the indoor unit 26
- Connecting the piping 27
- Install the outdoor unit 27
- Outdoor unit 27
- Evacuation of the equipment 28
- Connect the cable to the outdoor unit 29
- Pipe insulation 29
- Basic function 30
- Cooling operation 30
- Heating operation 30
- Internal setting temperature 30
- Operation and control 30
- Thermostat control 30
- Automatic operation 31
- Fan operation 31
- Indoor fan motor operation 31
- Outdoor fan motor operation 32
- Airflow direction control 33
- Horizontal and vertical directions 33
- Vertical louver is controlled by remote control the vertical airflow direction button on the remote controller and by each operation mode as shown in the table below 33
- The vertical louver is closed when the unit is turned off with the remote controller stop position the vertical louver is fully opened and move to the setting position when the unit is turned on with the remote controller the vertical louver remains at open position when the unit is turned off during operation the values in the parentheses are for the models cs he12gke 34
- A purpose to provide quiet cooling operation compare to normal operation 35
- B control condition a quiet operation start condition when quiet button at remote control is pressed quiet led illuminates b quiet operation stop condition 1 when one of the following conditions is satisfied quiet operation stops a powerful button is pressed b stop by off on switch c timer off activates d quiet button is pressed again 2 when quiet operation is stopped operation is shifted to normal operation with previous setting 3 when fan speed is changed quiet operation is shifted to quiet operation of the new fan speed 4 when operation mode is changed quiet operation is shifted to quiet operation of the new mode 5 during quiet operation if timer on activates quiet operation maintains 6 after off when on back quiet operation is not memorised 35
- Horizontal airflow direction control 35
- Quiet operation cooling mode cooling area of dry mode 35
- Powerful operation 36
- Quiet operation heating 36
- Auto restart control 37
- If timer led is blinking there is an abnormality operation occurs 37
- Indication panel 37
- Note if power led is blinking the possible operations of the unit are hot start during deice operation operation mode judgement or on timer sampling 37
- Off timer can be set using remote control the unit with timer set will stop operate at set time 37
- Off timer control 37
- On timer can be set using remote control the unit with timer set will start operate earlier than the setting time this is to provide a comfortable environment when reaching the set on time 60 minutes before the set time indoor at fan speed of lo and outdoor fan motor start operate for 30 seconds to determine the indoor intake air temperature and outdoor air temperature in order to judge the operation starting time from the judgment the decided operation will start operate earlier than the set time as shown below 37
- On timer control 37
- Timer control 37
- When the power supply is cut off during the operation of air conditioner the compressor will re operate within three to four minutes there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be selected randomly after power supply resumes 2 this type of control is not applicable during on off timer setting 37
- C heat operation 38
- 30 seconds forced operation 39
- A overheating prevention control 1 when the ipm temperature rises to 100 c compressor operation will stop immediately 2 compressor operation restarts after 3 minutes the temperature decreases to 95 c 39
- B dc peak current control 1 when electric current to ipm exceeds set value of 20 a the compressor will stop operate then operation will restart after 3 minutes 2 if the set value is exceeded again more than 30 seconds after the compressor starts the operation will restart after 1 minute 3 if the set value exceeded again within 30 seconds after the compressor starts the operation will restart after 2 minutes if this condition repeats continuously for 7 times all indoor and outdoor relays will be cut off 39
- Ipm power transistor prevention control 39
- Once compressor starts the operation it will not stop its operation for 30 seconds 2 however it can be stopped with the remote control or the auto switch on the indoor unit 39
- Protection control 39
- Protection control for all operations 39
- The compressor will not starts for 3 minutes after stop of the operation 2 this control is not applicable if the power supply is cut off and on again or after 4 way valve deices condition 39
- The first 30 minutes of cooling operation a will be applied 39
- Time delay safety control 39
- Total running current control 39
- When the outdoor unit total running current ac exceeds x value the frequency instructed for compressor operation will be decreased 2 if the running current does not exceed x value for 5 seconds the frequency instructed will be increased 3 however if total outdoor unit running current exceeds y value compressor will be stopped immediately for 3 minutes 39
- Compressor overheating prevention control 40
- Low frequency protection control 1 40
- Low frequency protection control 2 40
- Low pressure prevention control gas leakage detection 40
- Cooling overload control 41
- Freeze prevention control 41
- Outdoor air temperature control 41
- Protection control for cooling 41
- Intake air temperature control 42
- Outdoor air temperature control 42
- Overload protection control 42
- Protection control for heating operation 42
- Auto off on button 43
- Servicing mode 43
- Clock button 44
- Remote control button 44
- Reset ac 44
- Reset rc 44
- Set button 44
- Refrigeration cycle system 45
- Troubleshooting guide 45
- Carry out the measurements of pressure electric current and temperature fifteen minutes after an operation is started 46
- Relationship between the condition of the air conditioner and pressure and electric current 46
- Breakdown self diagnosis function 47
- Self diagnosis function three digits alphanumeric code 47
- Error codes table 48
- Note o frequency measured and fan speed fixed the memory data of error code is erased when the power supply is cut off or press the auto switch until beep sound heard following by pressing the check button at remote control although operation forced to stop when abnormality detected emergency operation is possible for certain errors refer to error codes table by using remote control or auto switch at indoor unit however the remote control signal receiving sound is changed from one beep to four beep sounds 48
- H11 indoor outdoor abnormal communication 49
- Self diagnosis method 49
- H12 indoor outdoor capacity rank mismatched 50
- H14 indoor intake air temperature sensor abnormality 51
- H15 compressor temperature sensor abnormality 52
- H16 outdoor current transformer open circuit 53
- H19 indoor fan motor dc motor mechanism locked 54
- H23 indoor pipe temperature sensor abnormality 55
- H25 e ion air purifying system abnormal 56
- H27 outdoor air temperature sensor abnormality 57
- 0 h28 outdoor pipe temperature sensor abnormality 58
- 1 h30 compressor discharge temperature sensor abnormality 59
- 2 h33 unspecified voltage between indoor and outdoor 60
- 3 h58 patrol sensor abnormality 61
- 4 h97 outdoor fan motor dc motor mechanism locked 62
- 5 h98 indoor high pressure protection 63
- 6 h99 indoor freeze prevention protection cooling or soft dry 64
- 7 f11 4 way valve abnormality 65
- 8 f90 power factor correction protection 66
- 9 f91 refrigeration cycle abnormality 67
- 0 f93 compressor rotation failure 68
- 1 f95 cooling high pressure abnormality 69
- 2 f96 ipm overheating 70
- 3 f97 compressor overheating 71
- 4 f98 input over current detection 72
- 5 f99 output over current detection 73
- Checking the power transistor never touch any live parts for at least 10 minutes after turning off the circuit breaker if unavoidable necessary to touch a live part make sure the power transistor s supply voltage is below 50v using the tester for the uvw make measurement at the faston terminal on the board of the relay connector 73
- Malfunction caused dc peak due to compressor failure dc peak due to defective power transistor s dc peak due to defective outdoor unit pcb 73
- Malfunction decision conditions during operation of cooling and heating when an output over current 20 a is detected by checking the current that flows in the inverter dc peak sensing circuitry 73
- Troubleshooting 73
- Disassembly and assembly instructions 74
- Indoor electronic controller cross flow fan and indoor fan motor removal procedure 74
- Lift to open the horizontal vane gently remove the 2 caps and 2 screws at the bottom of discharge vane fig 74
- Remove the front panel by pressing lever arm with finger fig 74
- To remove front grille 74
- Removal of control board complete 75
- Removal of pcb 76
- Removal of fan motor and cross flow fan 77
- Removal of air swing motors for vertical and horizontal louvers 81
- Removal of terminal board complete 81
- Disassembly of outdoor unit 82
- Removal of cabinet top plate and cabinet front plate 82
- Removal of control cover and terminal cover 82
- Removal of control board 83
- Removal of control box 83
- Removal of propeller fan and fan motor 84
- Technical data 85
- Cs he12jke cu he12jke 93
- Cs he9jke cu he9jke 93
- Sensible capacity chart 93
- Exploded view and replacement parts list 94
- Indoor unit 94
- Note all parts are supplied from phaam malaysia vendor code 00029488 95
- Outdoor unit 96
- Note all parts are supplied from phaam malaysia vendor code 00029488 o marked parts are recommended to be kept in stock 97
- Phaam printed in malaysia sfth0905 00 97
