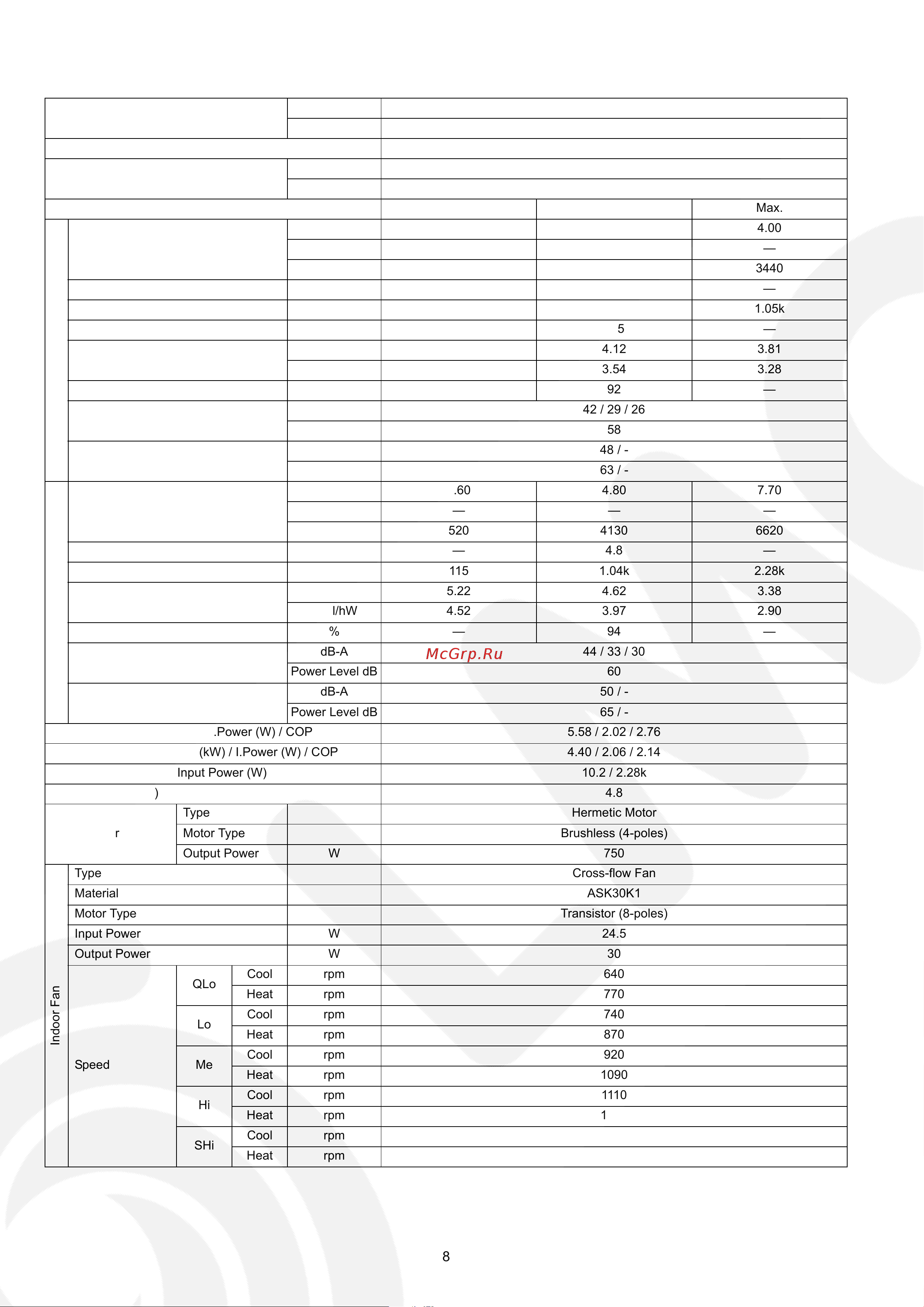

8
MODEL
INDOOR CS-HE12JKE
OUTDOOR CU-HE12JKE
Performance Test Condition EUROVENT
Power Supply
Phase, Hz Single, 50
V 230
Min. Mid. Max.
Cooling
Capacity
kW 0.60 3.50 4.00
BTU/h — — —
Kcal/h 520 3010 3440
Running Current A — 4.0 —
Input Power W 120 850 1.05k
Annual Consumption kWh — 425 —
EER
W/W 5.00 4.12 3.81
Kcal/hW 4.33 3.54 3.28
Power Factor % — 92 —
Indoor Noise (H / L / QLo)
dB-A 42 / 29 / 26
Power Level dB 58
Outdoor Noise (H / L)
dB-A 48 / -
Power Level dB 63 / -
Heating
Capacity
kW 0.60 4.80 7.70
BTU/h — — —
Kcal/h 520 4130 6620
Running Current A — 4.8 —
Input Power W 115 1.04k 2.28k
COP
W/W 5.22 4.62 3.38
Kcal/hW 4.52 3.97 2.90
Power Factor % — 94 —
Indoor Noise (H / L / QLo)
dB-A 44 / 33 / 30
Power Level dB 60
Outdoor Noise (H / L)
dB-A 50 / -
Power Level dB 65 / -
Low Temp. : Capacity (kW) / I.Power (W) / COP 5.58 / 2.02 / 2.76
Extr Low Temp. : Capacity (kW) / I.Power (W) / COP 4.40 / 2.06 / 2.14
Max Current (A) / Max Input Power (W) 10.2 / 2.28k
Starting Current (A) 4.8
Compressor
Type Hermetic Motor
Motor Type Brushless (4-poles)
Output Power W 750
Indoor Fan
Type Cross-flow Fan
Material ASK30K1
Motor Type Transistor (8-poles)
Input Power W 24.5
Output Power W 30
Speed
QLo
Cool rpm 640
Heat rpm 770
Lo
Cool rpm 740
Heat rpm 870
Me
Cool rpm 920
Heat rpm 1090
Hi
Cool rpm 1110
Heat rpm 1310
SHi
Cool rpm 1210
Heat rpm 1310
