Panasonic CS-QE12NKE / CU-QE12NKE [18/117] Outdoor unit
![Panasonic CS-QE12NKE / CU-QE12NKE [18/117] Outdoor unit](/views2/1832431/page18/bg12.png)
18

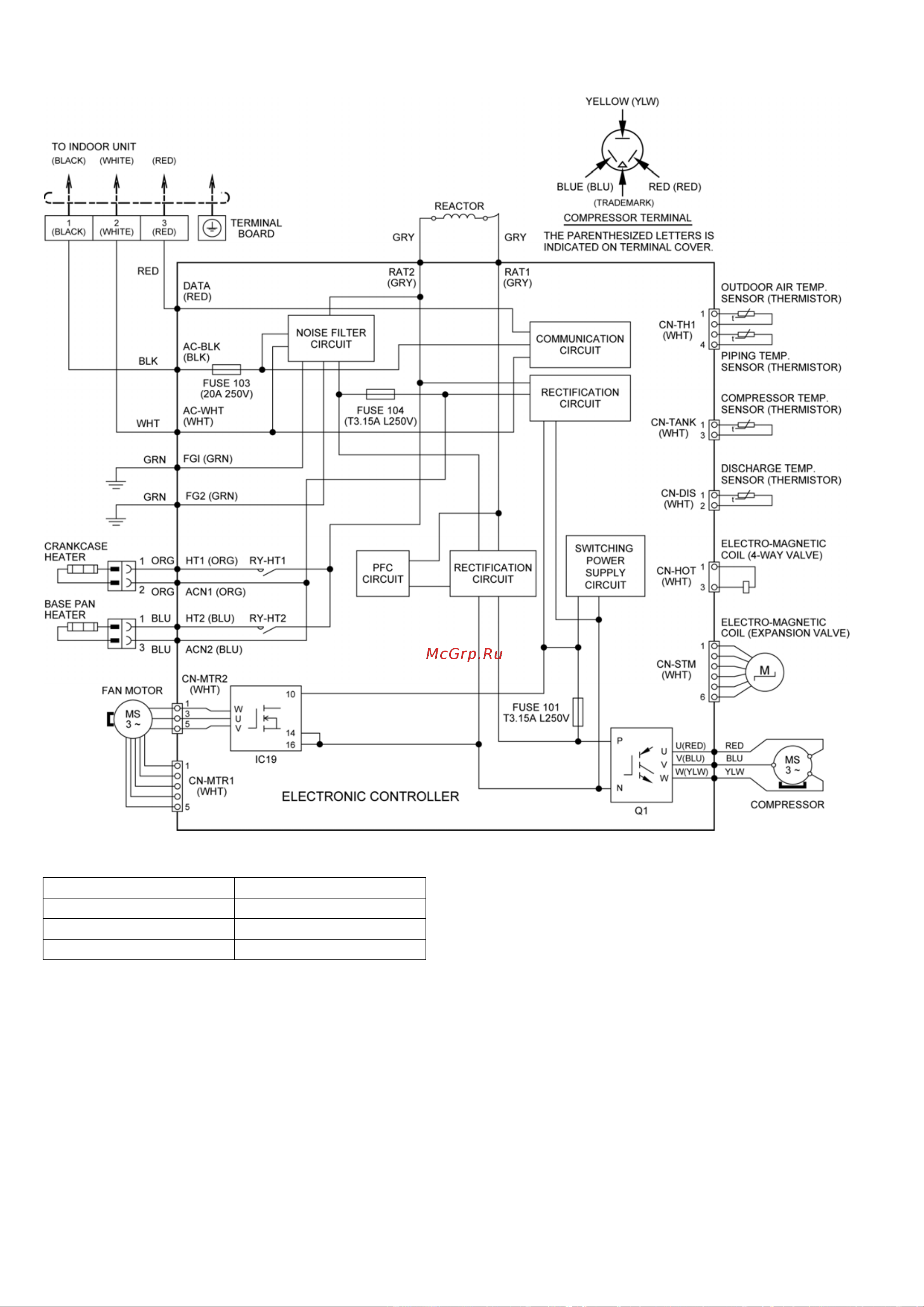

8.2 Outdoor Unit
Resistance of Compressor Windings
CONNECTION 5RD132XBE21
U - V 1.897Ω
U - W 1.907Ω
V - W 1.882Ω
