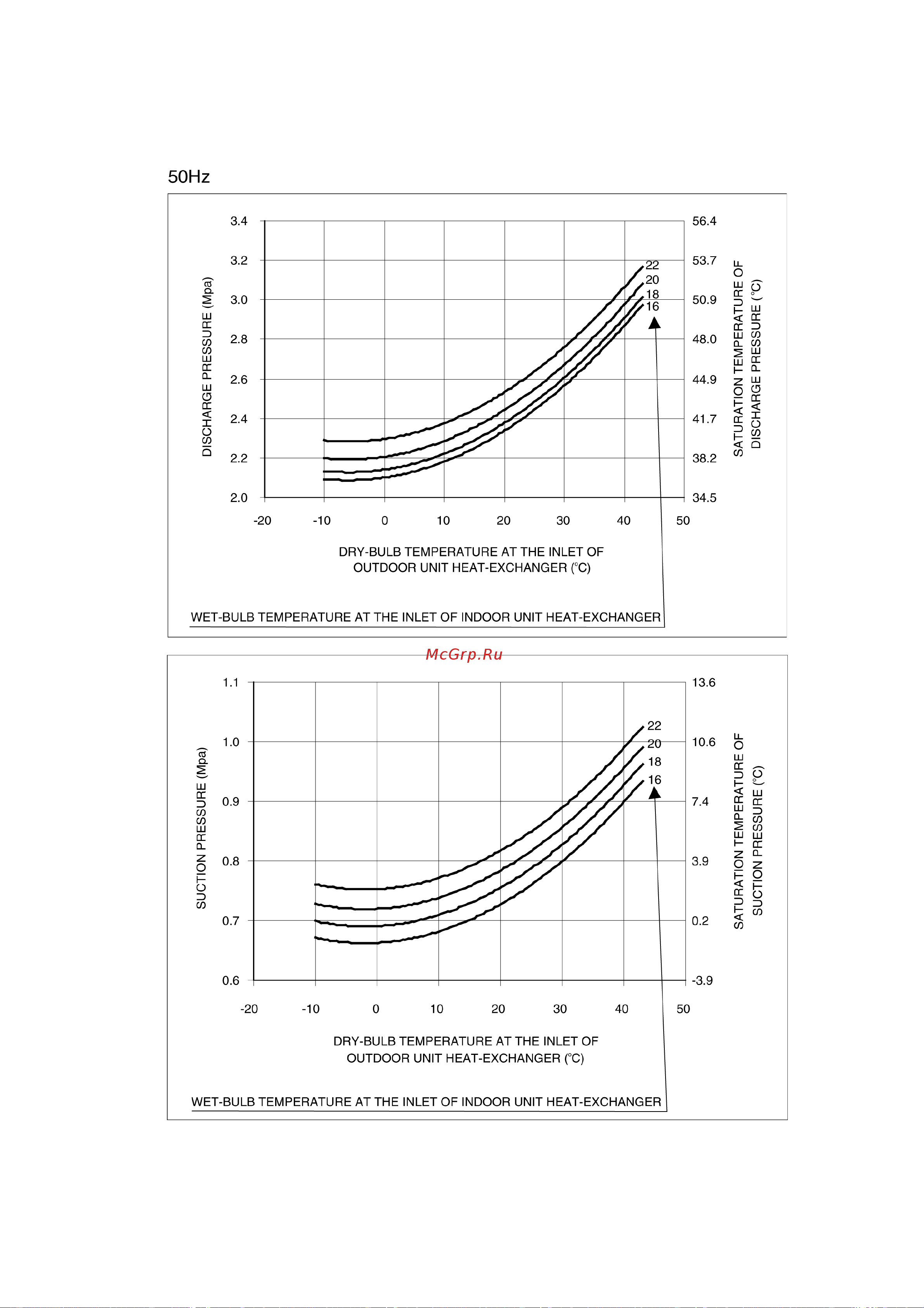

13.3. Discharge and suction pressure
13.3.1. Saturation temperature of discharge and suction pressure
COOLING
103
