Panasonic CS-F43DD2E5 / CU-B43DBE8 [5/145] A brand new control method using the latest in technology

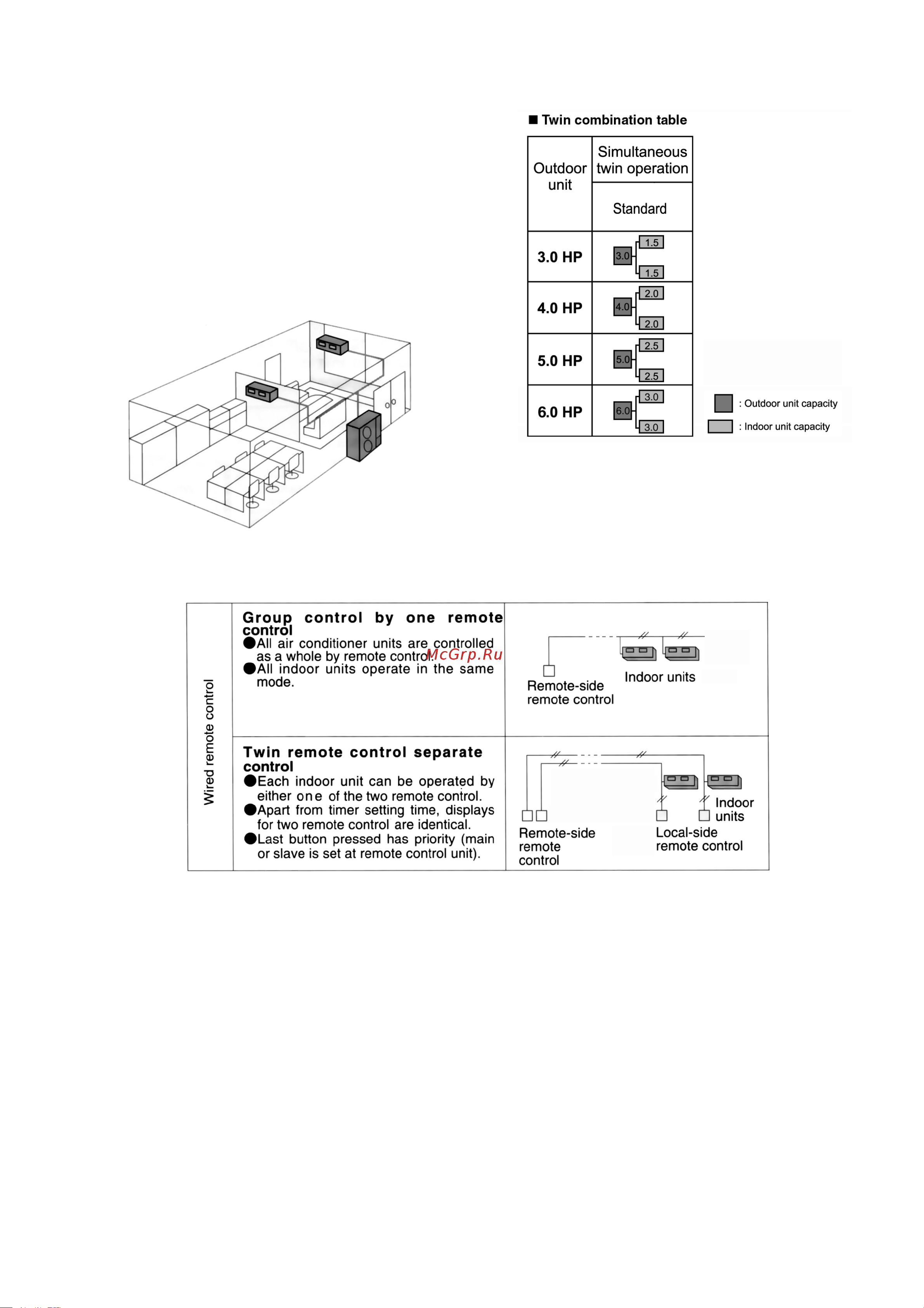

2.3.1. Twin operation

• Simultaneous air conditioning of wide spaces and corners is

possible. Indoor units of same horsepowers and models

can even be used in combination.

• Master unit and slave-units can be set automatically in twin

systems. No address setting is necessary.

• Multiple indoor units can be operated simultaneously with a

single remote control. Note that individual operation is not

possible.

2.3. A brand-new control method using the latest in technology

2.3.2. Group control equipment
