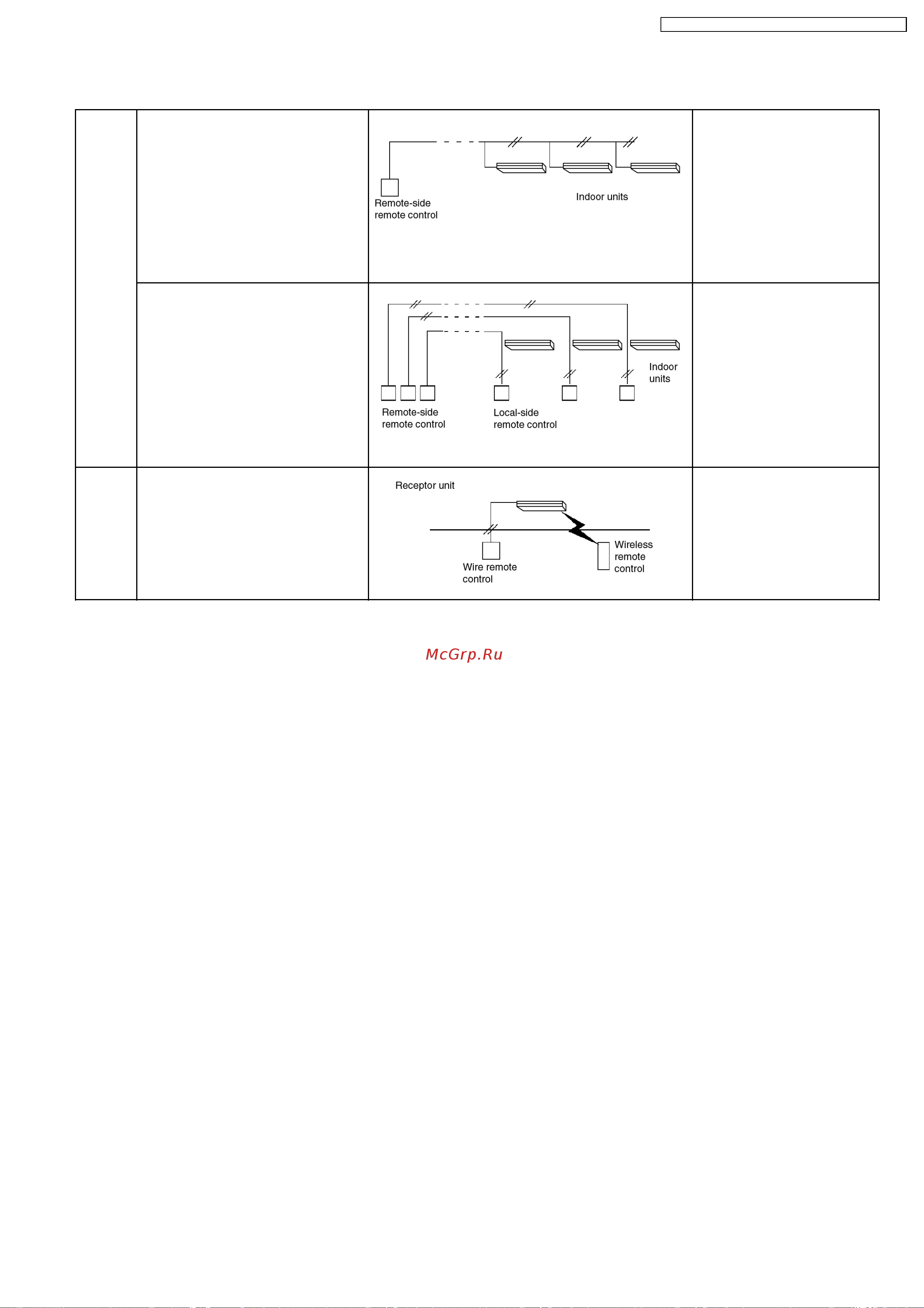

2.12. Group Control Equipment
Wired
remote
control
Group control by one remote
control
•
• •
•
All air conditioner units are
controlled as a whole by remote
control.
•
• •
•
All indoor units operate in the
same mode.
•
• •
•
A maximum of 16 units can be
connected together (sequental
starting)
[Remote side]
•
• •
•
Optional wired remote
control CZ-RD513C
[Local side]
Not needed
Twin remote control separate
control
•
• •
•
Each indoor unit can be operated
by either one of the two remote
control.
•
• •
•
Apart from timer setting time,
displays for two remote control are
identical.
•
• •
•
Last button pressed has priority
(main or slave is set at remote
control unit).
[Remote side]
•
• •
•
Optional wired remote
control
[Local side]
•
• •
•
Optional wired remote
control CZ-RD513C
Common
control
Common control / group
•
• •
•
Operation is possible using either
wired or wireless remote control
unit.
•
• •
•
Last button pressed has priority.
•
• •
•
Optional wired remote
control and wireless
remote control
Wired CZ-RD513C
Wireless CZ-RL513T
11
CS-F24DTE5 CU-L24DBE5 / CS-F28DTE5 CU-L28DBE5
