Panasonic CS-F28DTE5 / CU-L28DBE5 [7/108] Low noise outdoor units
![Panasonic CS-F28DTE5 / CU-L28DBE5 [7/108] Low noise outdoor units](/views2/1832410/page7/bg7.png)
[Product features]

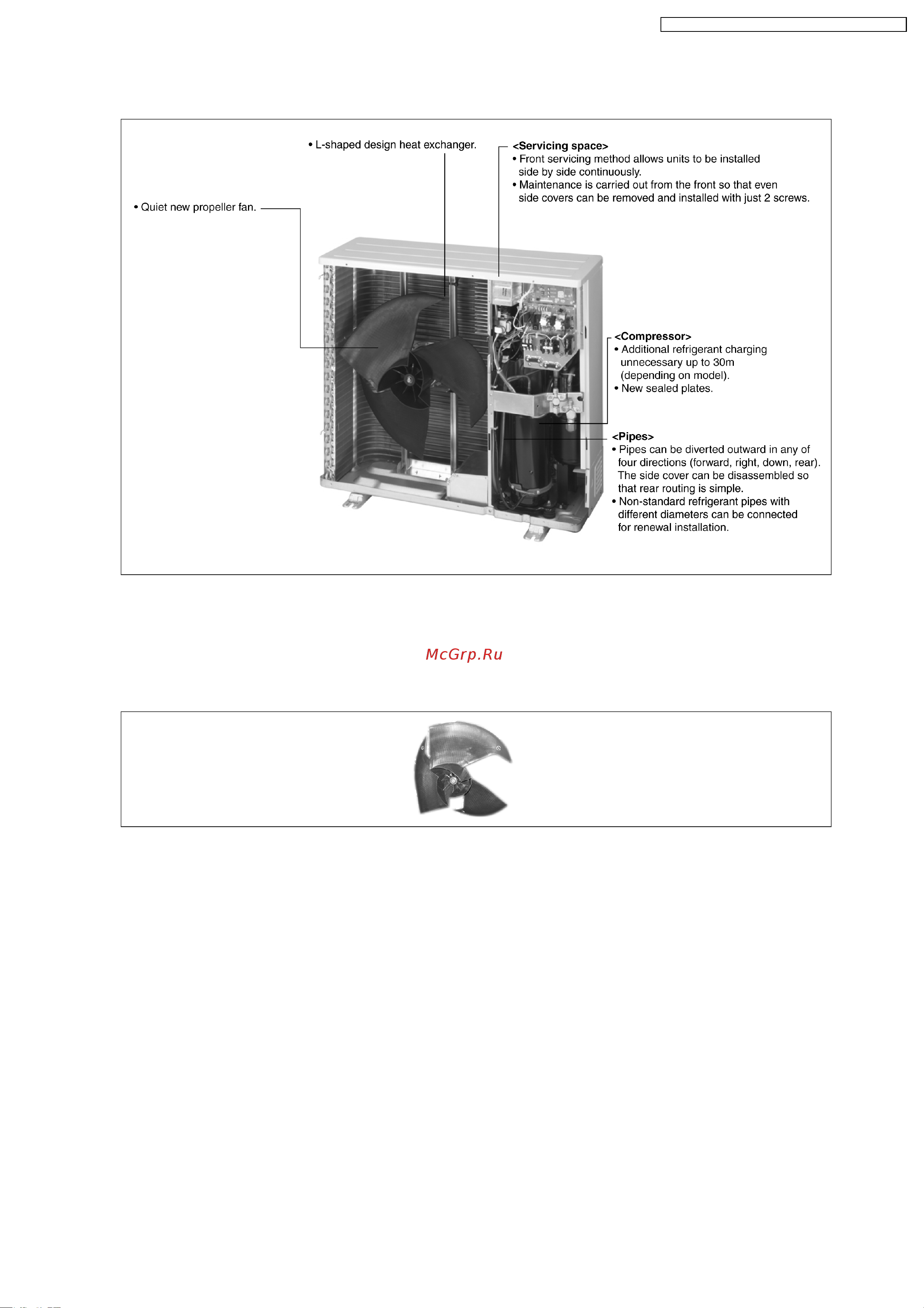

2.7. Low-noise outdoor units
2.7.1. Low-noise design improves in surrounding areas
1. The noise-suppressing winglet fan is a result of new research into vane design theory. The unique curved shape suppresses
the generation of vortexes, thus reduces air flow noise.
2. The adoption of double-orifice rings reduces air passage resistance.
3. Strengthening of the noise insulation materials in the compressor and the sealing-in of mechanical noise allows vibration noise
to be greatly enclosed and suppressed.
4. The heat exchanger has an L-shaped design to allow air to flow more smoothly.
5. Noise is automatically reduced further during night time operation with lower outdoor air temperatures.
7
CS-F24DTE5 CU-L24DBE5 / CS-F28DTE5 CU-L28DBE5
