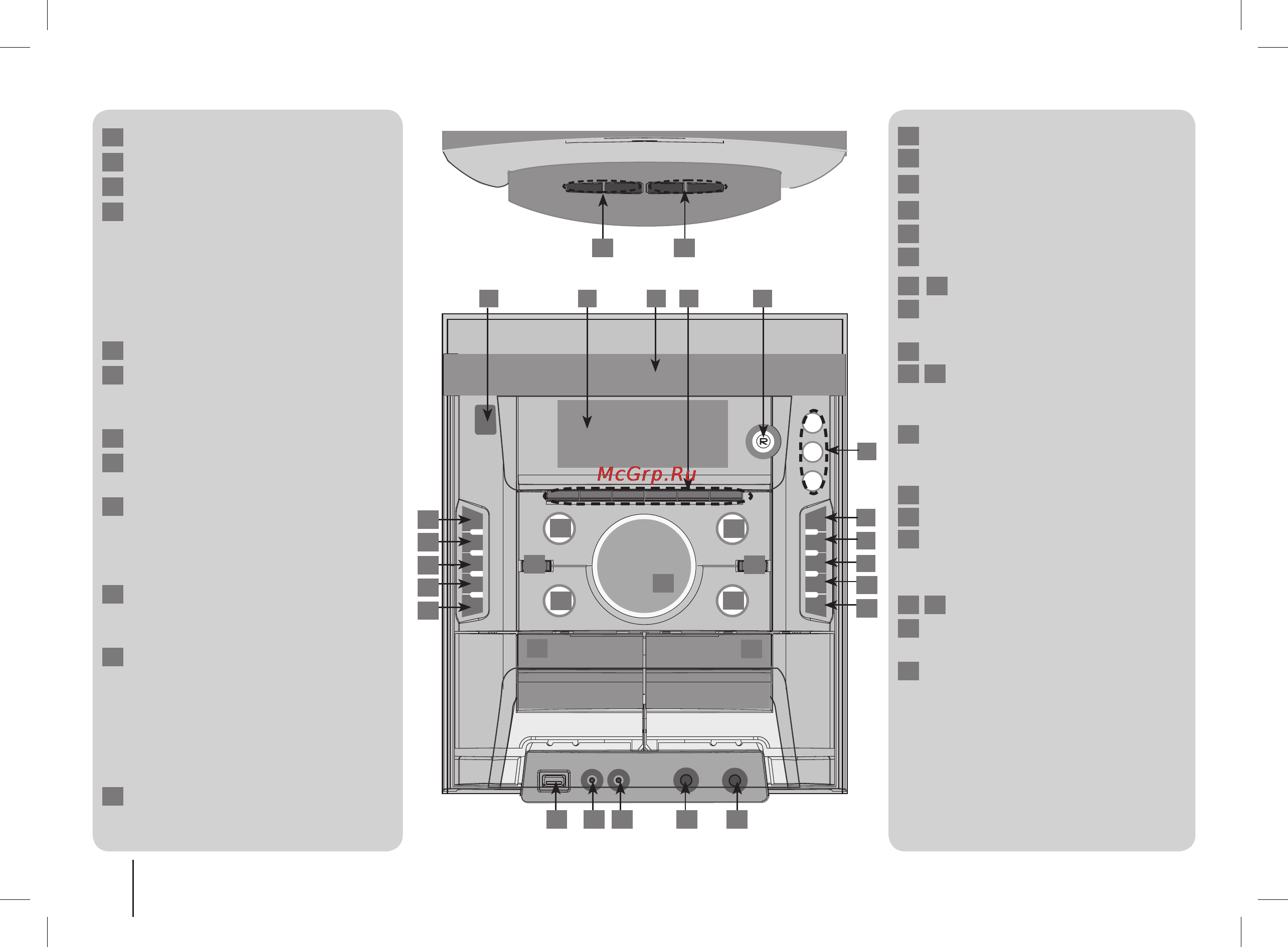

LG MDS714 [6/24] Main unit
![LG MDS714 [6/24] Main unit](/views2/1083647/page6/bg6.png)
1
1/\ Turn ON/ OFF.
2
Display window
3
Disc tray
4
- z/\\ Recording/Pauses
- ./>
REWIND or FAST FORWARD
Auto Tuning/ SCAN/ Setting clock
- b/B PRESET
FORWARD/ REVERSE PLAY
- x STOP/CLEAR
5
USB direct recording
6
PRO EQ
BASS (100 Hz)/ MIDDLE (1 KHz)/
TREBLE (10 KHz)
7
CD OPEN
8
DISC SKIP
Choose a desired disc.
9
DUBB. Recording from tape to tape.
CD SYNC. CD to Tape Synchronized.
ST./MO. To improve the FM reception
on TUNER.
10
SET Confirms the settings.
(TIMER/ CLOCK/ PRO EQ)
CD II Pauses
11
REV. MODE
Scroll through a selection of cassette
playing options.
DEMO In power off state to
demonstrate the function on display
window. To cancel it, press 1/\ or
this button again.
12
AUX/PORT.
Auxiliary device/ Portable in.
6
Main unit
6
7
8
13
Selects TUNER function.
14
Selects TAPE function.
15
Selects DVD/CD function.
16
Selects USB function.
17
PRO EQ
18
Volume control
19
20
Cassette Door 1, 2
21
TIMER
(
Use your player as an alarm clock.)
22
CLOCK (
See setting the Clock )
23
24
EQ./LG EQ
You can choose fixed sound
impression.
25
XDSS plus
Reinforce the treble, bass and
surround effect.
26
USB connector
27
PHONES Headphone jack
28
PORT. IN For connecting a portable
device and playing it through this
system’s speakers.
29
30
MIC 1, 2
31
ECHO VOL. U/u
Adjust microphone echo volume.
32
MIC VOL. U/u
Adjust microphone volume.
9
1 2 43 5
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26 27 28 29 30
31 32
