10
- Before starting to assemble the device, disconnect the grease fil-
ter to facilitate its installation.
- If there is no plug on the cable, install a plug designed to work
with the load indicated on the characteristics table. If the device
is equipped with a plug, then install the device in such a way that
the plug is accessible.
- In the case of direct connection to the power grid, a multi-pole
switch with a contact gap of at least 3 mm, designed for the
desired load and meeting current standards, must be placed be-
tween the device and the network.

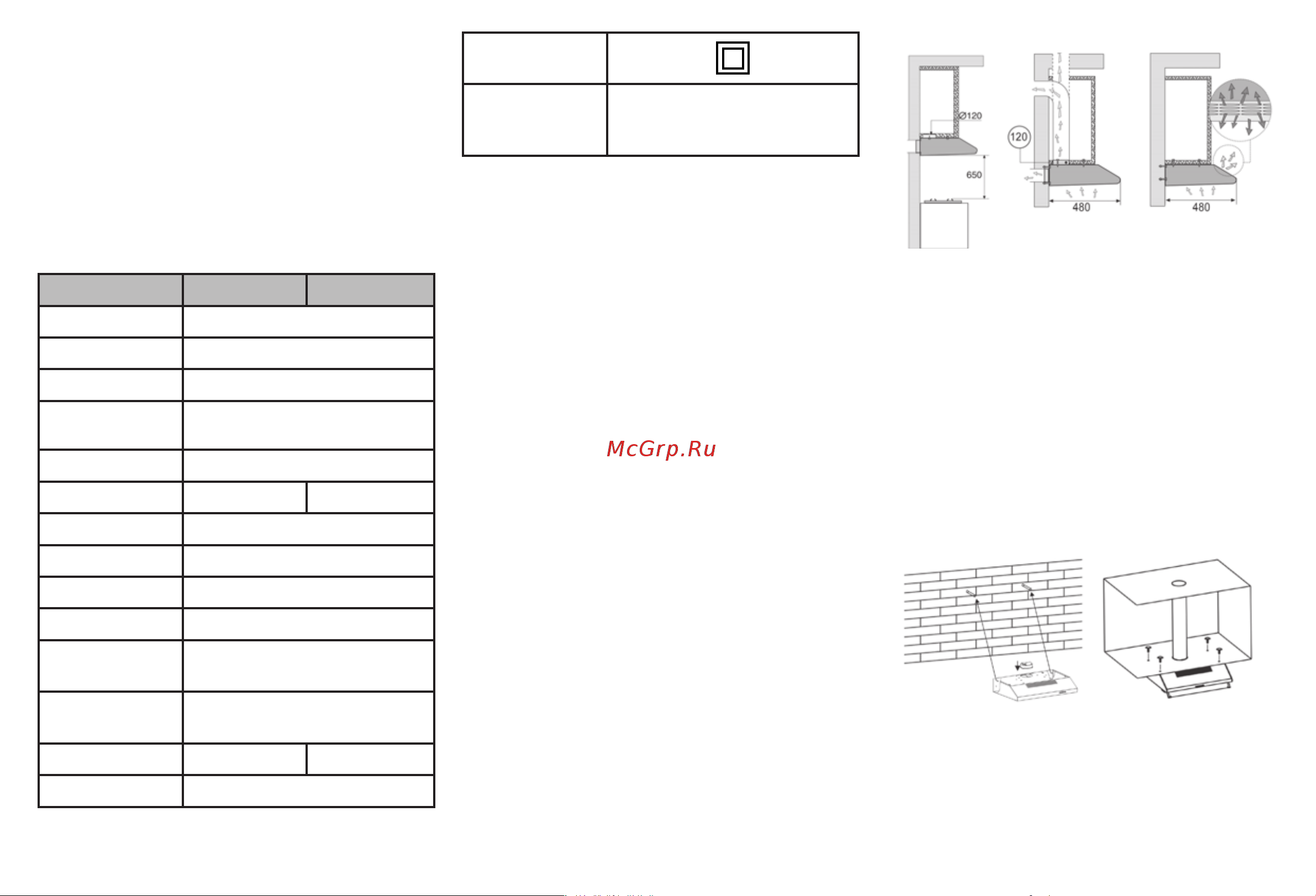

2. TECHNICAL SPECIFICATION
MODEL СТ-1801-50 СТ-1801-60
Rated voltage 220-240 В ~50 Гц
Number of engines 1
Lighting 1,5 W x 1 pcs
Number of filters for
fat absorption
1
Number of speeds 3
Width (mm) 495 595
Depth (mm) 480
Height (mm) 95
Duct diameter (mm) 120
Capacity (m
3
/h) 350
Engine power
consumption (W)
80
Total power
consumption (W)
81,5
Net Weight (kg) 4,3 4,8
Operating mode air extraction / recirculation
Energy protection
class
Noise level 1 speed - 45 dB
2 speed - 48 dB
3 speed - 53 dB
3. COMPLETENESS AND DESCRIPTION OF THE DEVICE
- Hood assembly - 1 pc.
- Lamp - 1 pc.
- Plastic anchor - 6 pcs.
- Self-tapping screw for fixing the hood to the wall - 6 pcs.
- Air outlet plug - 1 pc.
- Flange/check valve - 1 pc.
- A lobe for mounting on a flange (for performing the function of a
check valve by a flange) - 2 pcs.
- User Manual - 1 pc.
The device has 2 ventilation holes. One is located at the top, the other
at the back. Both holes can be used by you if necessary. A flange is
attached to the device, to which the smoke extraction tube is con-
nected, and a plug covering an unused vent.
CONTROL PANEL
The control panel is equipped with mechanical buttons. With their
help, you can set one of the three operating speeds, as well as turn
on the backlight.
CIRCULATION MODE
The hood can operate in circulation mode. In this case, the air will not
flow outside the room, but will exit through the ventilation holes on
the front panel of the hood.
4. WORKING PROCEDURE
Before installing the hood, make sure that:
- the distance from the bottom surface of the hood is at least 65 cm
from the heating plane of the electric furnace or 75 cm from the
heating plane of the gas furnace;
- the length of the electric cord is sufficient to connect the hood
to the mains;
- nothing will damage the electric cord during further operation;
- there is a possibility of duct equipment.
Before starting to assemble the device, disconnect the grease filter
to facilitate its installation.
The hood removes smoke into the atmosphere through the outer wall
of the building or through an existing ventilation shaft. For this pur-
pose, it is necessary to purchase a sliding non-flammable chimney
that complies with current regulations and connect it to the flange.
The hood can be mounted in several ways.
WALL MOUNTING
Measure the distance on the wall for mounting the hood. Drill two
holes with a diameter of 8 mm, as shown in Figure 1. Make sure that
the anchors and screws included in the package are suitable for the
type of wall on which the hood will be mounted. Install the anchors,
tighten the screws. Remove the protective film from the hood, then
fig. 1 fig. 2
