STANDARD PARTS
2‐35
T16 9008148 (5−2013)
356136 − NA

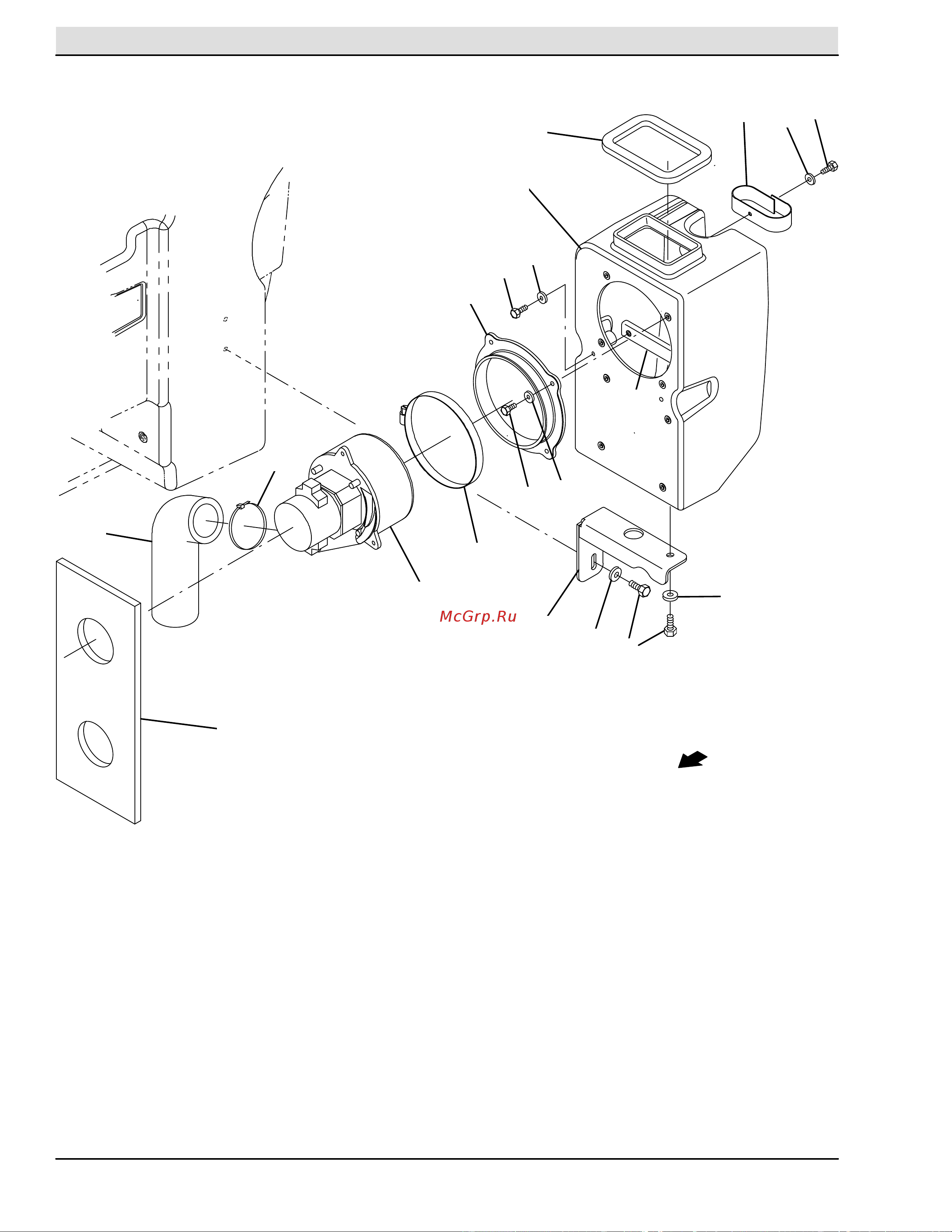

Fig. 17 − Recovery Tank Group
Ref. Part No. Serial Number Description Qty.
1 1057404 (000000− ) Tank, Recvy, Rm−Cptl, Trimmed [T16] 1
2 9008031 (000000− ) Cover, Tank, Rcvry, Afmkt [T16] 1
3 9008429 (000000− ) Bumper, Rear, Rh, Afmkt [T16] 1
4 1037822 (000000− ) Filter, Panl, Dust, 2.0 X 06.1 X 07.6 1
5 9008678 (000000−024744 ) Plate, Cover, W/Label, Afmkt 1
5 9008738 (000000−024744 ) Plate, Cover, W/Label, Afmkt, TJ (Japan Only) 1
6 1057955 (000000−024744 ) Gasket, Cover, Fltr 1
7 1056611 (000000−024744 ) Cover, Access, Fltr 1
8 1066436 (000000−024744 ) Screw, Pan, Phl, 10−14 X 1.00, F/ Plstc 12
9 1064629 (000000−024744 ) Retainer, Seal, Fltr 1
10 1066430 (000000−024744 ) Seal, Afmkt, Bulb, Dual, 0.30G, 02Ft 1
11 1066433 (000000− ) Seal, Afmkt, Bulb, Dual, 0.30G, 08Ft 1
12 1055319 (000000− ) Bracket, Mtg, Cover, Recvy Tank 2
13 1020341 (000000− ) Screw, Hex, M8 X 1.25 X 20, Ss, Sems 8
14 1057214 (000000− ) Plate, Arm, Prop 1
15 360460 (000000− ) Sleeve, P/M, 0.34b 0.63d 0.4l, Ss / Oil 1
16 1017218 (000000− ) Washer, Flat, 0.32b 1.00d .12, Ss 8
17 12333 (000000− ) Screw, Hex, M8 X 1.25 X 25, Ss, Nl 1
18 1071399 (000000− ) Sleeve, P/M, Flng, 0.33b 0.75/0.50d 0.8l 1
19 59658 (000000− ) Screw, Hex, M8 X 1.25 X 35, Nl, Ss 1
20 385685 (000000− ) Sensor, Level, Liq, 14vdc 01a .62−11 1
21 1019285 (000000− ) Bracket, Protector, Float Switch 1
22 1056068 (000000− ) Tray, Debris, 11.0l 1
23 1066720 (000000− ) Sleeve, P/M, 0.32b 0.44d 0.2l [430ss] 2
24 1071389 (000000− ) Screw, Pan, Phl, M8 X 1.25 X 20, Ss 2
25 1060269 (000000− ) Hose Assy, Drain, 2.00id X 33.9l, Blk 1
26 1067656 (000000− ) Clamp, Hose, Wormdrive, 3.25−4.00d, .50w 1
27 1056267 (000000− ) Bracket, Mtg, Hose 1
28 15675 (000000− ) Screw, Hex, M8 X 1.25 X 16, Ss 1
29 41141 (000000− ) Washer, Lock, Int−Ext, 0.31 4
30 1055820 (000000− ) Bracket, Mtg, Bmpr 3
31 1055852 (000000− ) Plate, Mtg, Bmpr 1
32 1055938 (000000− ) Angle, Mtg, Bmpr 1
33 09740 (000000− ) Screw, Hex, M8 X 1.25 X 20, Ss 7
34 1067964 (000000− ) Fastener, 25.0 [Hook & Loop] 1
35 1066063 (000000− ) Plug, Hole, Rnd, 0.25h 0.43l, Brb, Nyl 6
36 1052724 (000000− ) Bracket, Sppt, Tank, Rh 1
37 09010 (000000− ) Screw, Hex, M8 X 1.25 X 25, Ss 2
38 1054823 (000000− ) Angle, Mtg, Tank 1
39 1068092 (000000− ) Hose, Vacuum, 1.75id X 073.6l, 2cuff 1
