![Tennant T16 90C (с управлением сидя) [9/182] Fig 1 replacement brushes scrub head](/img/pdf.png)
Tennant T16 90C (с управлением сидя) [9/182] Fig 1 replacement brushes scrub head
![Tennant T16 90C (с управлением сидя) [9/182] Fig 1 replacement brushes scrub head](/views2/1840178/page9/bg9.png)
STANDARD PARTS
2‐3
T16 9008148 (5−2014)
356157

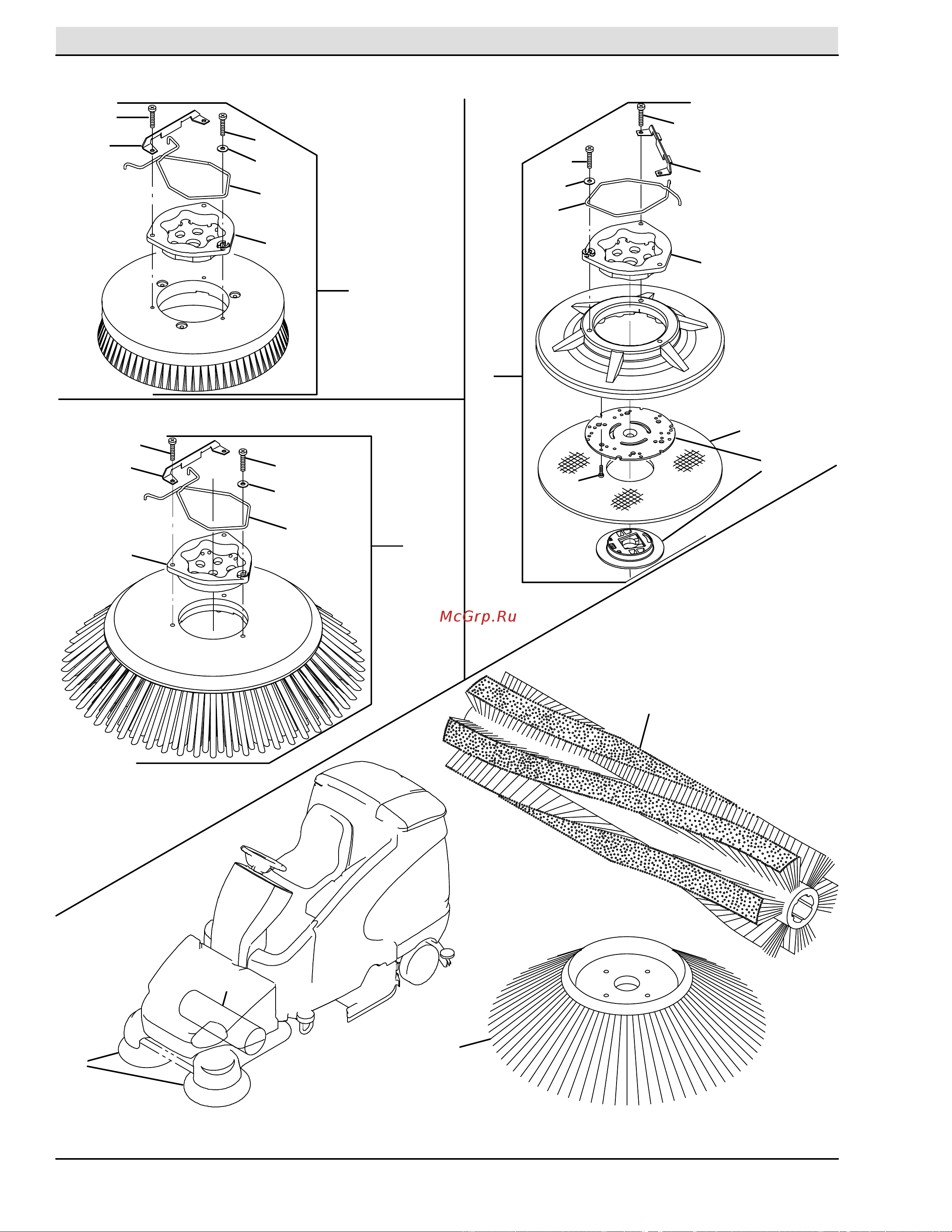

Fig. 1 − Replacement Brushes, Scrub Head
Ref. Part No. Serial Number Description Qty.
1 1053893 (000000− ) Brush, Scb, 35l, 20sr,Polypropylene 2
1 1053894 (000000− ) Brush, Scb, 35l, 20sr, Heavy Duty Polypropylene 2
1 1053895 (000000− ) Brush, Scb, 35l, 20sr, Polyester 2
1 1062578 (000000− ) Brush, Scb, 35l, 20sr, Super Abrasive 2
o
2 11773 (000000− ) Brush Assy, Disk, Scb, 18.0d, Nylon 2
Y
3 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
Y
4 24299 (000000− ) Bracket, Retainer, Spring 1
Y
5 01684 (000000− ) Washer, Flat, 0.27b 0.69d .05, Ss 1
Y
6 32746 (000000− ) Screw, Pan, Phl, M6 X 1.00 X 35, Ss 3
o
2 11771 (000000− ) Brush Assy, Disk, Scb, 18.0d, Polypropylene 2
Y
3 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
Y
4 24299 (000000− ) Bracket, Retainer, Spring 1
Y
5 01684 (000000− ) Washer, Flat, 0.27b 0.69d .05, Ss 1
Y
6 32746 (000000− ) Screw, Pan, Phl, M6 X 1.00 X 35, Ss 3
o
2 11772 (000000− ) Brush Assy, Disk, Scb, 18.0d, Super Abrasive 2
Y
3 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
Y
4 24299 (000000− ) Bracket, Retainer, Spring 1
Y
5 01684 (000000− ) Washer, Flat, 0.27b 0.69d .05, Ss 1
Y
6 32746 (000000− ) Screw, Pan, Phl, M6 X 1.00 X 35, Ss 3
o
7 397918 (000000− ) Driver Assy, Pad, 18.0d 2
Y
8 397978 (000000− ) Disk, Driver, Pad, W/ Face, 18.0d 1
Y
9 15539 (000000− ) Hub, Drive, Brush, Disk, 3hole 5.8bc[6t] 1
Y
10 14838 (000000− ) Spring, Wir, 0.16d, Brush Retaining 1
Y
11 24299 (000000− ) Bracket, Retainer, Spring 1
Y
12 370095 (000000− ) Device, Centering, Clip On, Tl [Gf Pp] 1
Y
13 09198 (000000− ) Screw, Pan, Phl, M4 X 0.70 X 35, Ss 3
Y
14 41579 (000000− ) Washer, Flat, 08, Ss 3
Y
15 01684 (000000− ) Washer, Flat, 0.27b 0.69d .05, Ss 1
Y
16 32746 (000000− ) Screw, Pan, Phl, M6 X 1.00 X 35, Ss 3
17 11777 (000000− ) Pad, Stripping, 18.0d, Brown[1pick=1pad] 2
17 370093 (000000− ) Pad, Stripping, 18.0d, Blk [1pick=1pad] 2
17 11778 (000000− ) Pad, Scb, 18.0d, Blue [1pick=1pad] 2
17 11780 (000000− ) Pad, Buff, 18.0d, Red [1pick=1pad] 2
17 11781 (000000− ) Pad, Polish, 18.0d, White [1pick=1pad] 2
17 1051029 (000000− ) Pad, Surf Prep, 18.0d [Mar,1pick =1pad] 2
