Audio Connection to Optional

Equipment

Connect the DVD player to your optional equipment

for audio output.

Amplifier equipped with 2-channel analog stereo

or Dolby Pro Logic ll / Pro Logic: Connect the left

and right AUDIO OUT jacks on the DVD player to the

audio left and right IN jacks on your amplifier,

receiver, or stereo system, using the audio cables (A).

Amplifier equipped with 2-channel digital stereo

(PCM) or audio / video receiver equipped with a

multi-channel decoder (Dolby Digital™, MPEG 2,

or DTS): Connect one of the DVD Player’s DIGITAL

AUDIO OUT jacks (COAXIAL X) to the corresponding

jack on your amplifier. Use an optional digital

(COAXIAL X) audio cable.

Digital Multi-channel sound

A digital multi-channel connection provides the best

sound quality. For this you need a multi-channel audio

/ video receiver that supports one or more of the

audio formats supported by your DVD player such as

MPEG 2, Dolby Digital and DTS. Check the receiver

manual and the logos on the front of the receiver.

Notes:

• If the audio format of the digital output does not match

the capabilities of your receiver, the receiver produces

a strong, distorted sound or no sound at all.

• Six Channel Digital Surround Sound via a digital

connection can only be obtained if your receiver is

equipped with a Digital Multi-channel decoder.

Manufactured under license from Dolby

Laboratories. “Dolby”, “Pro Logic”, and

the double-D symbol are trademarks of

Dolby Laboratories.

DTS and DTS Digital Out are trademarks

of Digital Theater Systems, Inc.

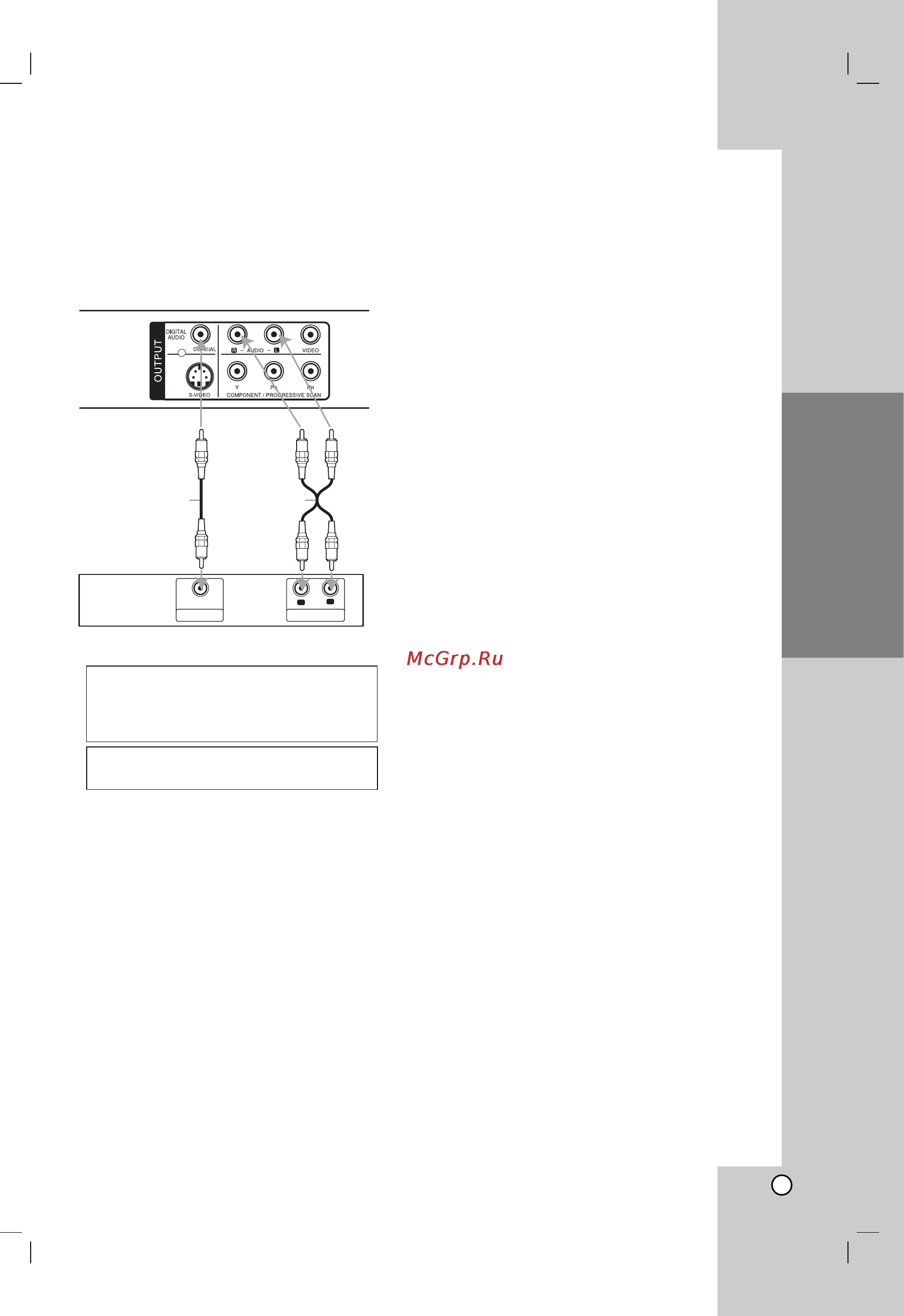

AUDIO INPUTDIGITAL INPUT

COAXIAL

Amplifier (Receiver)

Rear of DVD player
