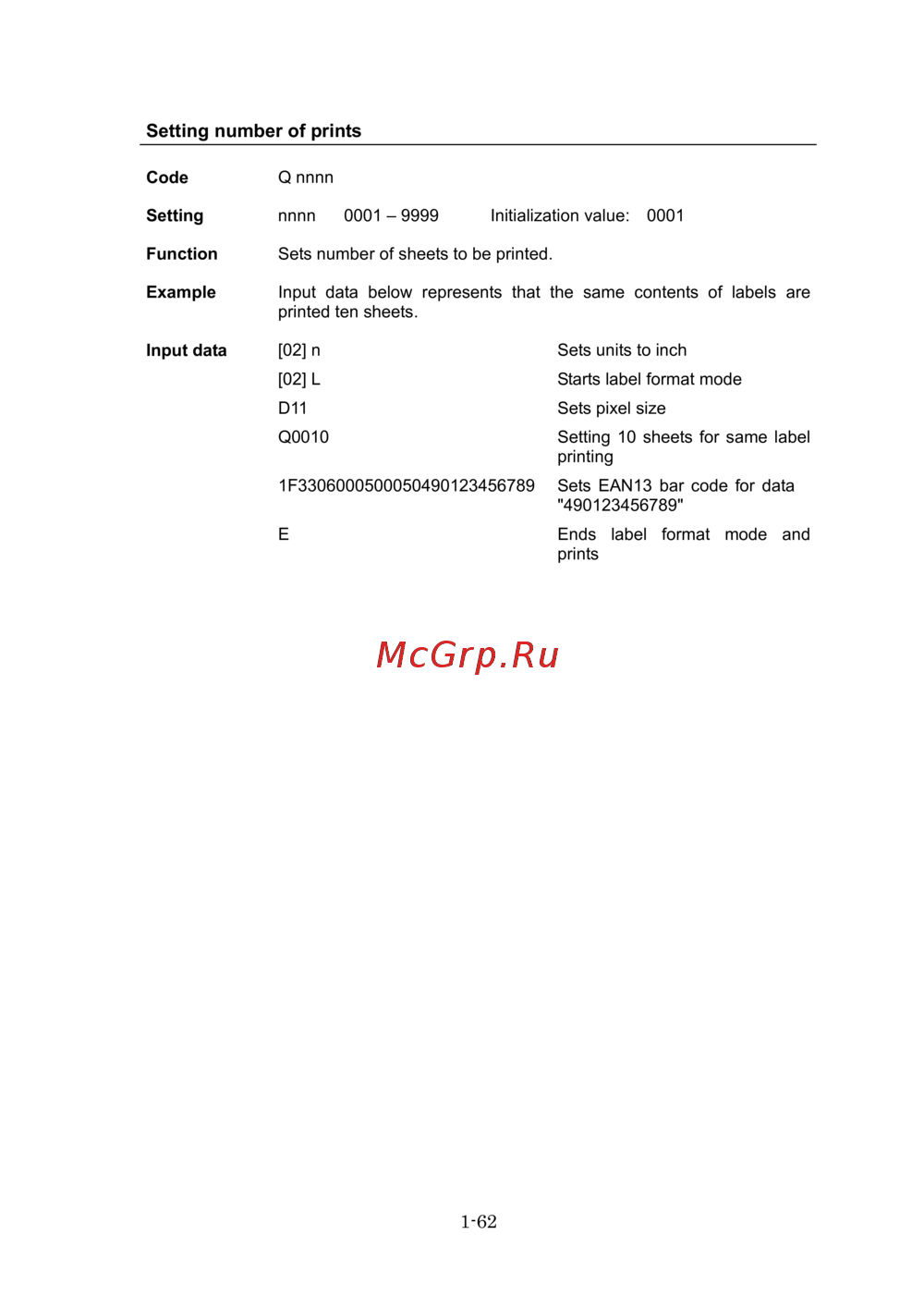

Setting number of prints

Code

Q nnnn

Setting

nnnn 0001 – 9999 Initialization value: 0001

Function

Sets number of sheets to be printed.

Example

Input data below represents that the same contents of labels are

printed ten sheets.

Input data

[02] n Sets units to inch

[02] L Starts label format mode

D11 Sets pixel size

Q0010 Setting 10 sheets for same label

printing

1F3306000500050490123456789 Sets EAN13 bar code for data

"490123456789"

E Ends label format mode and

prints
