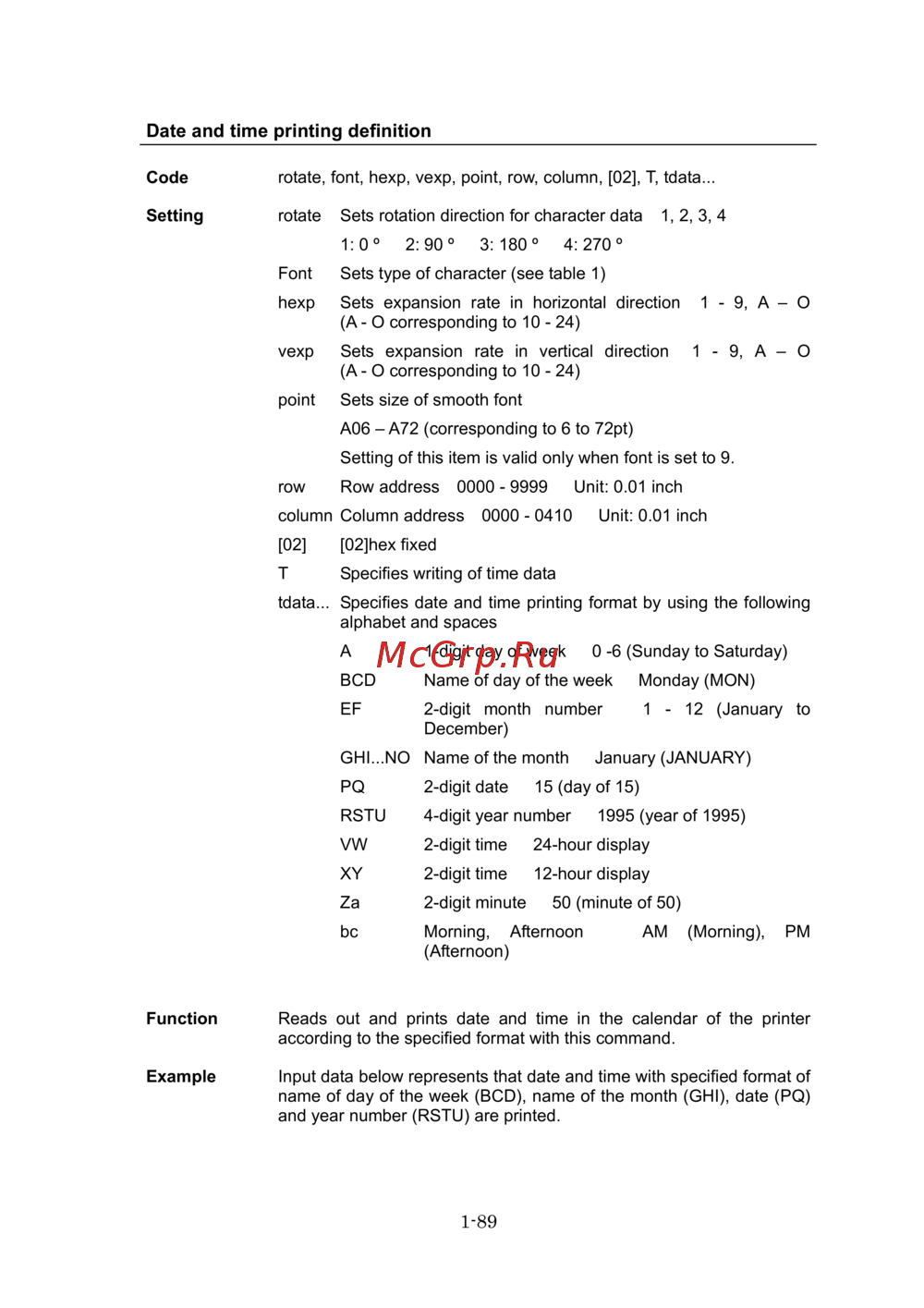

Date and time printing definition
Code
rotate, font, hexp, vexp, point, row, column, [02], T, tdata...
Setting
rotate Sets rotation direction for character data 1, 2, 3, 4
1: 0 º 2: 90 º 3: 180 º 4: 270 º
Font Sets type of character (see table 1)
hexp Sets expansion rate in horizontal direction 1 - 9, A – O
(A - O corresponding to 10 - 24)
vexp Sets expansion rate in vertical direction 1 - 9, A – O
(A - O corresponding to 10 - 24)
point Sets size of smooth font
A06 – A72 (corresponding to 6 to 72pt)
Setting of this item is valid only when font is set to 9.
row Row address 0000 - 9999 Unit: 0.01 inch
column Column address 0000 - 0410 Unit: 0.01 inch
[02] [02]hex fixed
T Specifies writing of time data
tdata... Specifies date and time printing format by using the following
alphabet and spaces
A 1-digit day of week 0 -6 (Sunday to Saturday)
BCD Name of day of the week Monday (MON)
EF 2-digit month number 1 - 12 (January to
December)
GHI...NO Name of the month January (JANUARY)
PQ 2-digit date 15 (day of 15)
RSTU 4-digit year number 1995 (year of 1995)
VW 2-digit time 24-hour display
XY 2-digit time 12-hour display
Za 2-digit minute 50 (minute of 50)
bc Morning, Afternoon AM (Morning), PM
(Afternoon)
Function
Reads out and prints date and time in the calendar of the printer
according to the specified format with this command.
Example
Input data below represents that date and time with specified format of
name of day of the week (BCD), name of the month (GHI), date (PQ)
and year number (RSTU) are printed.
