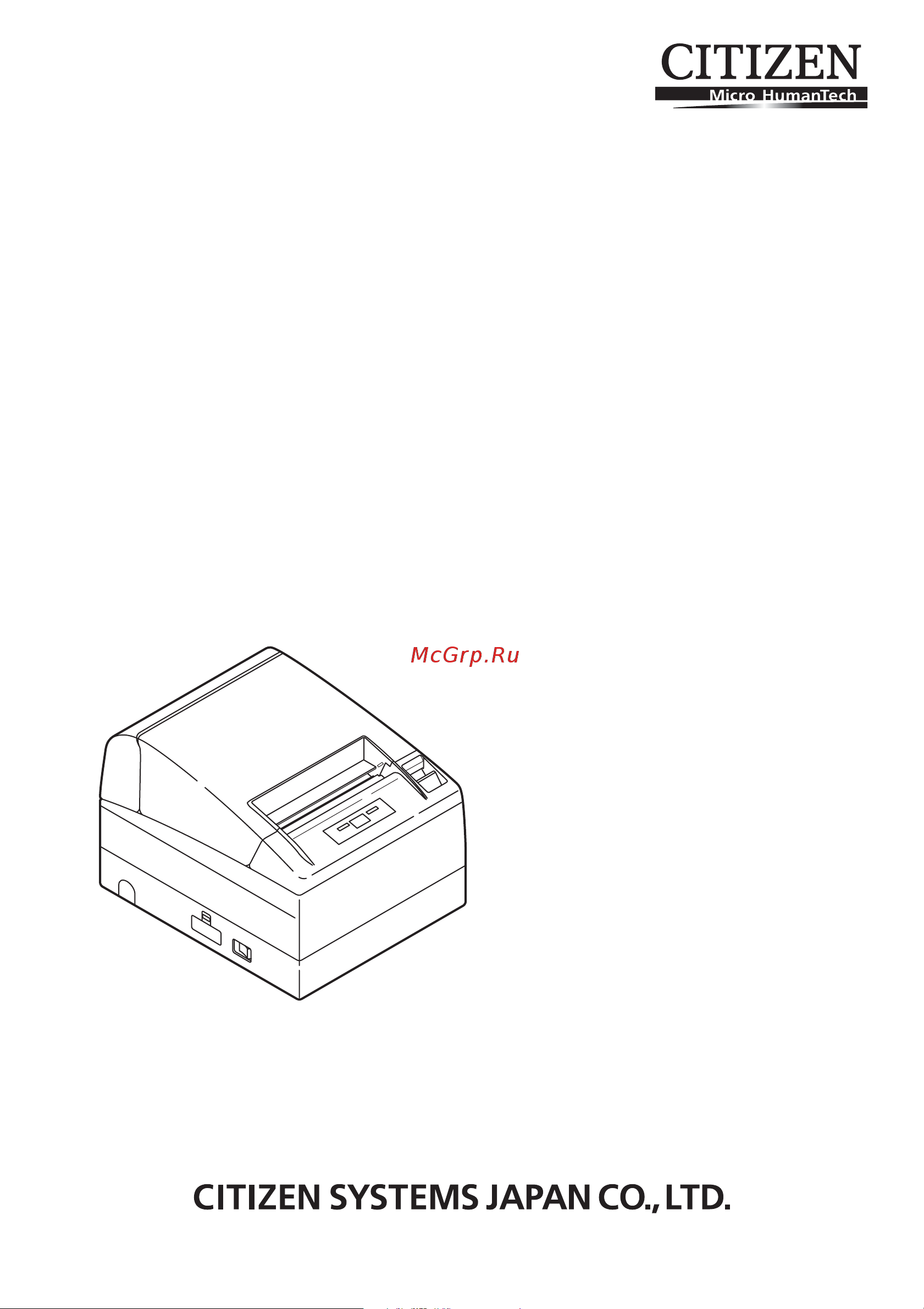

Citizen CT-S4000 Руководство по эксплуатации онлайн
LINE THERMAL PRINTER
MODEL CT-S4000/CT-S4000DC
CT-S4000L/CT-S4000DCL
CT-S4000M/CT-S4000DCM
User’s Manual
Содержание
- Line thermal printer 1
- User s manual 1
- Weee mark 2
- Declaration of conformity 3
- General precautions 4
- Caution 5
- Safety precautions 5
- Warning 5
- Which should be strictly observed 5
- Precautions on printer installation 6
- Warning 6
- Caution 7
- Precautions in handling the printer 8
- Warning 8
- Caution 9
- Caution 10
- Daily maintenance 10
- Explanation of printer parts 2 11
- General outline 11
- Maintenance and troubleshooting 1 11
- Other 6 11
- Preparation 5 11
- The table of contents 11
- Features 12
- General outline 12
- Ct s4000 rs e bk 13
- Model classification 13
- Printer 1 ac power cord 1 for ct s4000 ct s4000l ct s4000m cd rom 1 sample paper roll 1 roll partition 1 screw 1 quick start guide 1 13
- The printer models are classified by the following designation method 13
- Unpacking 13
- When unpacking the printer confirm that the following are provided 13
- Basic specifications 14
- Explanation of printer parts 15
- Printer appearance 15
- Other built in functions 17
- Printer cover inside 17
- Ac power type built in power supply 18
- Caution 18
- Connecting the ac power cord 18
- Dc power supply type 18
- Preparation 18
- Avoid locating the interface cable in places which may cause tripping or falling 19
- Caution 19
- Confirm that the power switch is off and connect the interface cable orient the interface cable terminal correctly and insert it into the interface connector 19
- Connecting interface cables 19
- For serial interface cable use the one with the following connection 19
- Pin 25 pin cable 9 pin 25 pin cable 19
- When disconnecting the cable always hold the connector be careful not to insert the usb interface cable into the cash drawer kick out connector 19
- 1 connector pin configuration 2 electrical characteristics 1 driving voltage 24 vdc 20
- Caution 20
- Confirm that the power switch is off 2 confirm the top and bottom of the cash drawer cable connector and insert it into the cash drawer kick out connector at the back of the printer 3 screw the cash drawer s ground wire to the body of the printer 20
- Connecting the cash drawer 20
- Do not connect any other device than the specified cash drawer to the cash drawer kick out connector also do not connect a telephone line 20
- Driving current approx 1a max shall not exceed 510 ms 3 drsw signal signal levels l 0 to 0 v h 3 to 5 v 3 drsw signal drsw signal status can be tested with the dle eot gs a or gs r command or at pin 34 on the parallel interface port 4 drive circuit printer side 20
- No output is produced while printing the cash drawers 1 and 2 cannot be driven simultaneously a solenoid used for the cash drawer should be of 24 ω or more the output current should be kept at 1a or less otherwise breakdown or burning could occur 20
- 58 mm is only for label supporting model 21
- At the time of shipment the printer is set for horizontal installation to install the printer vertically or on the wall the following adjustments are required 21
- Caution 21
- Installing the printer 21
- Partition for paper roll 21
- The printer can be installed horizontally vertically and on the wall 21
- 57600 and 115200 bps can also be selected by a command etc 22
- As for the setting of the serial interface it gives priority to the setting of the memory switch rather than the dip switch as the factory default consult with the dealer where the printer was purchased when the change of the dip switch setting is necessary 22
- Caution 22
- Selecting baud rate 22
- Setting dip switch 22
- The dip switch is present on the serial interface board the function of each switch is as shown below 22
- Adjusting the paper near end sensor 23
- Caution 23
- Lightly push in the paper near end sensor unit 2 move the paper near end sensor unit to the right and left while keeping to press it the position to be set varies in accordance with the setting of the printer horizontal or vertical or diameter of the paper roll as shown in the following figure 23
- Paper remaining differs by the type of paper roll used the external diameter of the paper roll is only for reference when a paper end error is detected incorrectly during using a paper roll with a honey comb type core move the sensor position to the larger number 23
- Caution 24
- Maintenance and troubleshooting 24
- Removing jammed paper 24
- See 5 manual setting of memory switch 24
- Setting replacing the paper roll 24
- Warning 24
- Caution 25
- If the print head or platen is dirty clear printing is not available or fault may occur if paper dust or the like is present on the sensor protection sheet label paper or blackmark paper may not be detected correctly periodic cleaning in accordance with the following procedure is recommended 25
- Periodic cleaning 25
- Caution 26
- Hexadecimal dump printing 26
- Self printing 26
- Black mark detection error in black mark mode when black mark cannot be detected even if a certain amount of paper feed is carried out for black mark detection a black mark detection error occurs if black detection continues more than the specified period a no paper condition is assumed and the same error as no paper is indicated 27
- Error indication 27
- Paper label detection error if detection is not available even with paper feeding of given amount for detecting space between labels or label paper error led blinks in this case adjust the sensor in the paper sensor adjustment mode if no detection occurs even after the sensor adjustment replace the label paper if replacing label paper is not effective for detection the sensor etc may be faulty degraded contact the service representative 27
- Waiting for paper label cutting if the gs ff command is executed under the condition that auto cutter operation is disabled memory switch 2 2 is off label paper is ejected and error led blinks when the feed switch is pressed under this circumstance paper returns to the starting position of printing and error led goes off 27
- If the cutter blade remains protruded due to paper jam or for any abnormality opening the paper cover may be disabled in this case do not open the paper cover forcibly insert a phillips screwdriver size 1 into the cutter lock releasing feed hole and turn it in the direction of arrow clockwise 28
- Lighting and blinking status of each error including the above is shown below 28
- When the paper cover cannot be opened 28
- When you find that both ends of the blade reached the lowest position stop turning the screwdriver open the cover and follow the procedure of removing jam or other cause of trouble 28
- Caution 29
- Do not use the following type of paper roll paper with folds paper with bent corners paper pasted or glued to the core in wound paper roll print side in 29
- External views and dimensions 29
- Printing paper 29
- Use the print paper shown in the following table or the paper with equivalent quality 29
- A label paper l 30
- Caution 30
- Label paper cannot be used with the model supporting blackmark ct s4000m ct s4000dcm 30
- Pay attention to the following when using auto cutter otherwise a cutter lock or a cutter failure may occur set the cut length of paper to 25 mm or more when using label paper cut the gap between labels liner sheet do not cut the label paper tack paper adusting the paper sensor must be carried when the type of liner is changed 30
- When using label paper with ct s4000l and ct s4000dcl refer to the following use the following paper or the equivalent paper 30
- B black mark paper bm paper 31
- Black mark printed on the reverse 31
- Caution 31
- Cut position 31
- In the case of the operation that the printer cuts the paper the top margin will be changed by the setting of the memory switch 4 8 it is 6 mm at 0 off and 12mm at 1 on in the case of the operation that the printer does not cut the paper the top margin is 6 mm 31
- Paper feeding direction 31
- Pcs value of black mark must be 0 or more when using the black mark paper consider the margin of 2 mm for the print position against the standard position and 5 mm for print length refer to the above drawing for the printable area and have enough margings specified in the marks e and g if the print data size is out of the printable area the printer should skip to next page 31
- Printable area 31
- Unit mm 31
- Manual setting of memory switch 32
- Memory switches can be set manually or by a command for manual setting refer to the next page the function of each memory switch is shown in the following table the white on black characters are factory setting 32
- Manual setting of memory switch memory sw 33
- The memory switch can be selected changed or written by the combination of three actions pressing the feed button pressing and holding the feed button and opening or closing the printer cover 33
- Adjusting paper sensor 35
- Adjusting paper sensor l m 35
- Selecting paper type 35
- Selecting paper type l m 35
- Caution 37
- Full cutting label paper 37
- Full cutting label paper l 37
- When full cutting the label paper with the printer installed horizontally be sure that the guide plate is mounted on the paper exit of the printer cover this guide plate was set to the printer at the time of factory shipment the guide plate prevents cut paper from dropping in the printer 37
