Connecting to a TV

TV Connect

The below connection method can help you to enjoy the high quality movie, music and photo.

The standard connection uses the AV cable.

The best connection uses the HDMI cable.

Note: HDMI and Toslink (Optical) cables are sold separately.

A/V OUT (Standard Denition)

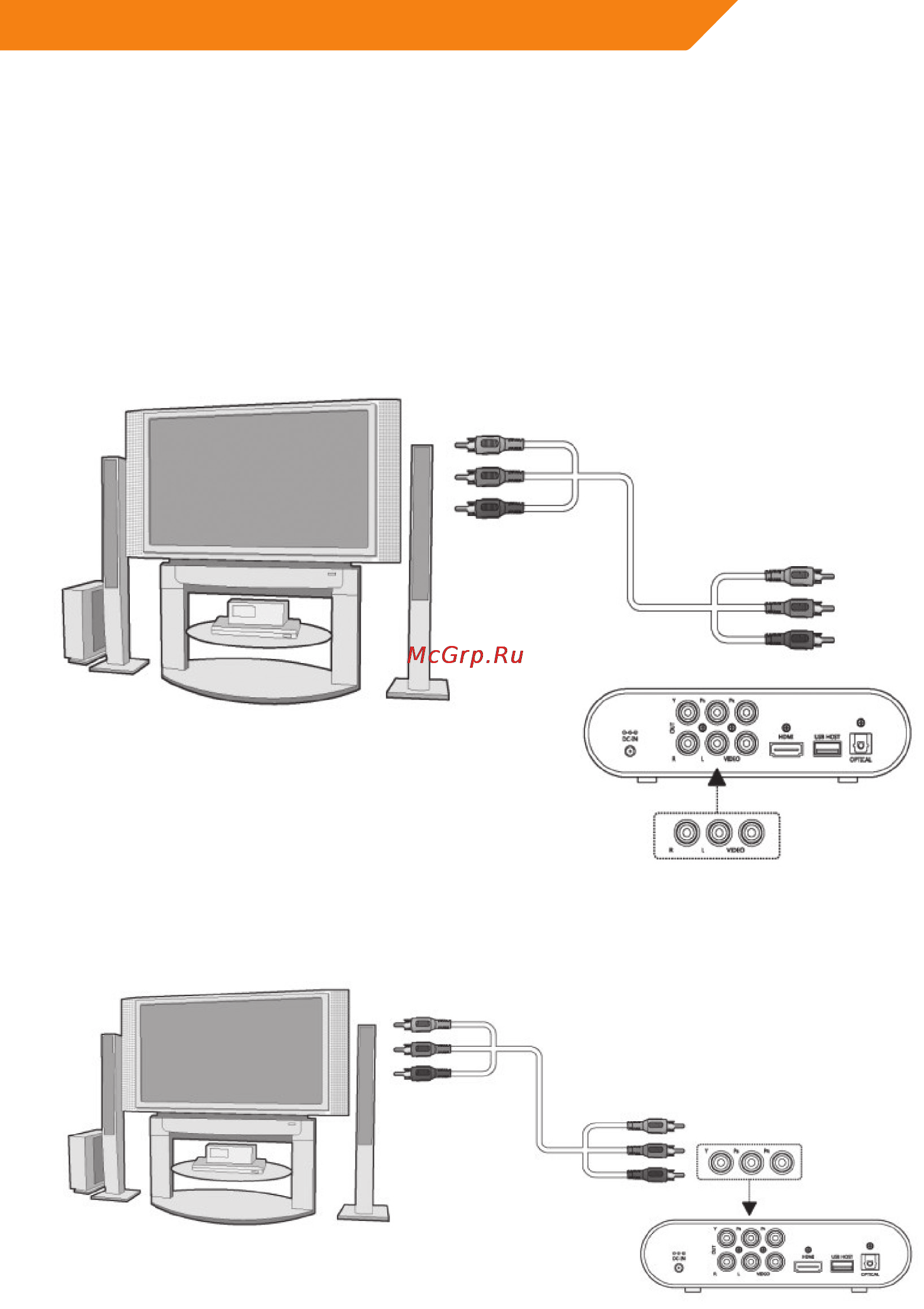

(1) Follow the picture and plug in the 3 color connector to the player’s A/V OUT jack;

(2) Follow the picture and plug in the 3 color connector to the TV’s A/V IN jack.

(3) Select the appropriate TV input source.

y/Pb/Pr Component OUT

(1) Follow the picture and plug in the 3 color connector to the player’s Y/Pb/Pr jack;

(2) Follow the picture and plug in the 3 color connector to the TV’s Y/Pb/Pr jack.

Y/Pb/Pr cable connection only output video, you will need AV cable or S/PDIF (coaxial or optical) cable for audio output.
