Viper DSU12 [4/9] Dsu12 dsu15 circuit connection diagram
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Viper DSU12 [4/9] Dsu12 dsu15 circuit connection diagram

Viper DSU12 [4/9] Dsu12 dsu15 circuit connection diagram
5
Ｐroduct Specification Parameter (Ｆ10)
Model
No
．
Capacity
(L)
Votage
(V)
Frequency
(Hz)
Power
(W)
Vacuum
(
mmH2O)
Air Flow
(ltr/min)
Weight
(Kg)
Size
(LxWxH)mm
8
220
～
240
50/60
880
2200
1834
72
5.0
340x325x325
１０
220
～
240
50/60
880
2200
1834
72
5.2
340x325x340
１２
220
～
240
50/60
880 2200
1834
73
5.4
371x357x355
１５
220
～
240
50/60
880 2200
1834
73
5.6
371x357x370
M
~
SW
ITCH
BLACK
BLAC
K
BROWN
BLUE
POWER CORD
220~240V
50/60Hz
M
~
SW
ITCH
BLACK
BLAC
K
BROWN
BLUE
POWER CORD
220~240V
50/60Hz
EC
O
PCBA
ECO
SWITCH
DSU8
/DSU10

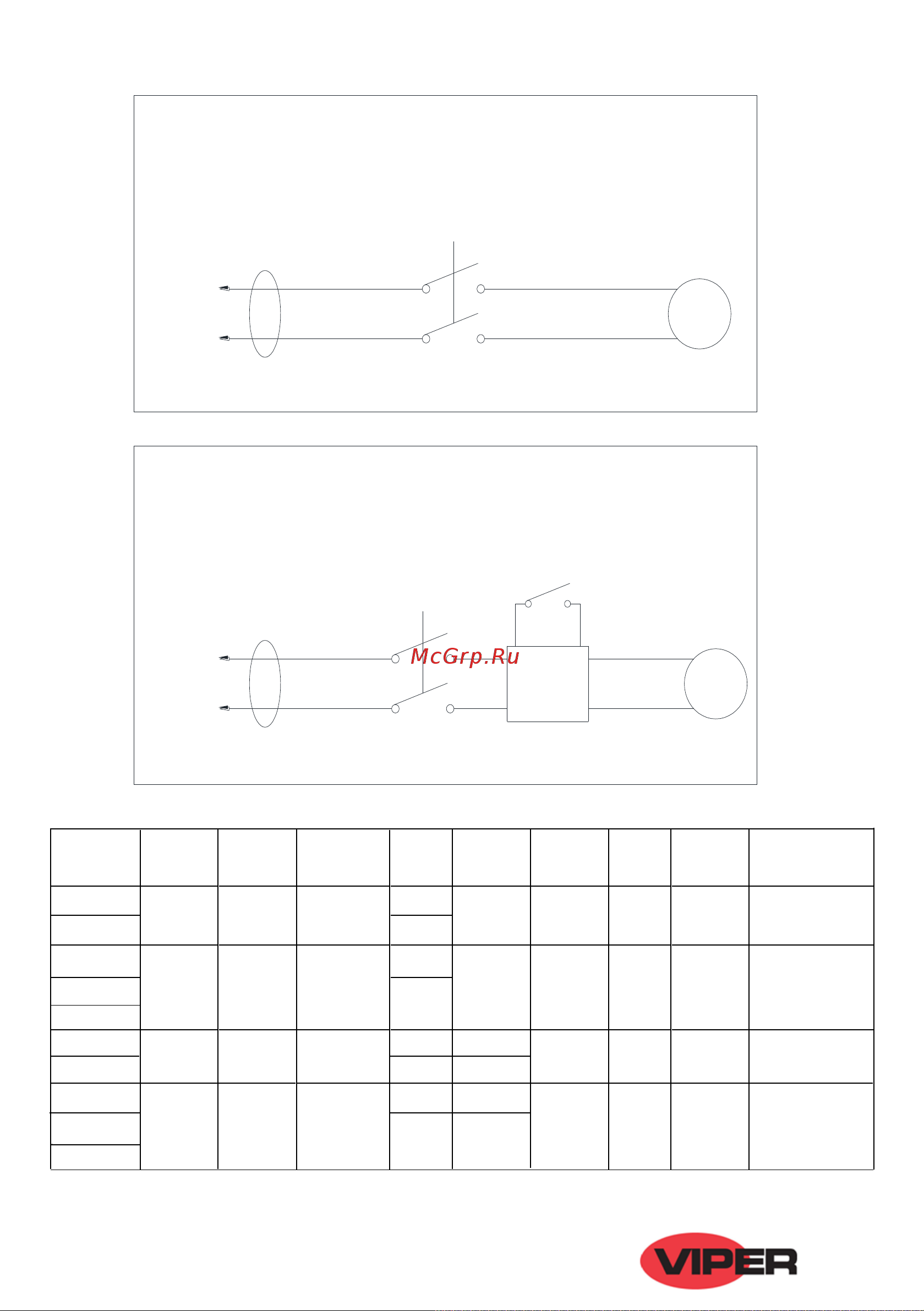

Circuit Connection Diagram
DSU12/DSU15
Circuit Connection Diagram
F8
F9
DSU8-AP
DSU10-AP
DSU12-AP
DSU15-AP
DSU8-EU/UK
DSU10-EU/UK
DSU12-EU/UK
DSU15-EU/UK
1000
1200
2300
1200
1000
2300
DSU10
DSU15
