Goclever DVB-T 400 INTERNET TV [4/41] Installation

Installation

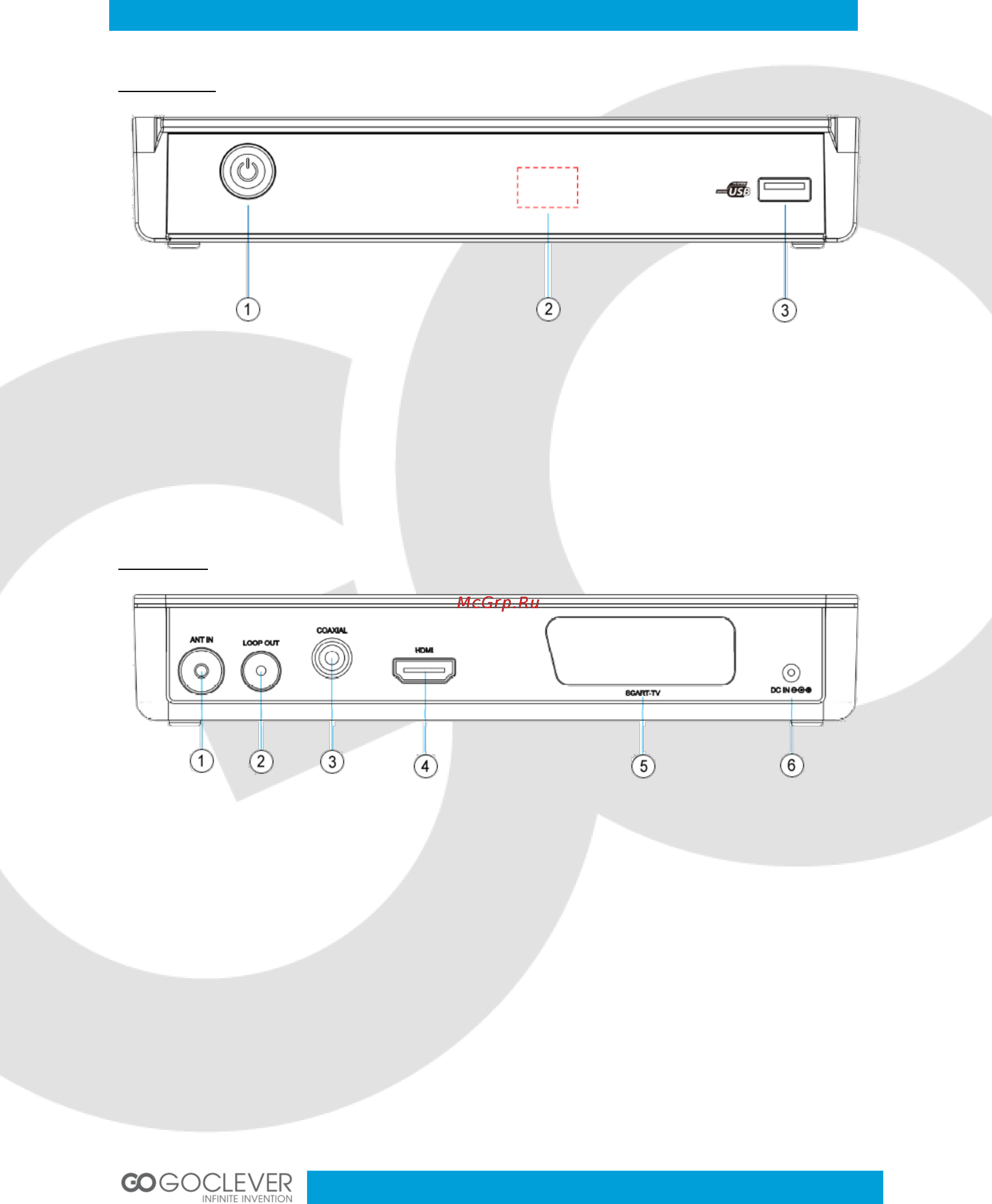

Front panel

1. POWER BUTTON: Use to indicate the power state of the Set Top Box.

2. REMOTE CONTROL SENSOR: Use to receive the signal from the Remote Control.

3. USB: For software upgrade and media playback.

Rear panel

1. ANT IN: This socket connects to your external Aerial.

2. RF LOOP: This socket will feed the RF signal to either your TV or another video system.

3. COAXIAL: For digital audio output for connection to an amplifier (or TV).

4. HDMI: High definition audio and video output used to connect to a HDMI device.

5. SCART-TV: Connects to the TV using a TV SCART cable.

6. DC IN: main power supply.
