For connection, keep the speaker cables as short as

possible. Do not bundle or roll up the excess part of the

cables. If the connections are faulty, no sound will be heard

from the subwoofer or the speakers, or both of them. Make

sure that the + and – polarity markings of the speaker

cables are observed and set correctly. If these cables are

reversed, the sound will be unnatural and lack bass.

Do not let the bare speaker wires touch each other, because

this could damage the subwoofer or the amplifier, or both of

them.

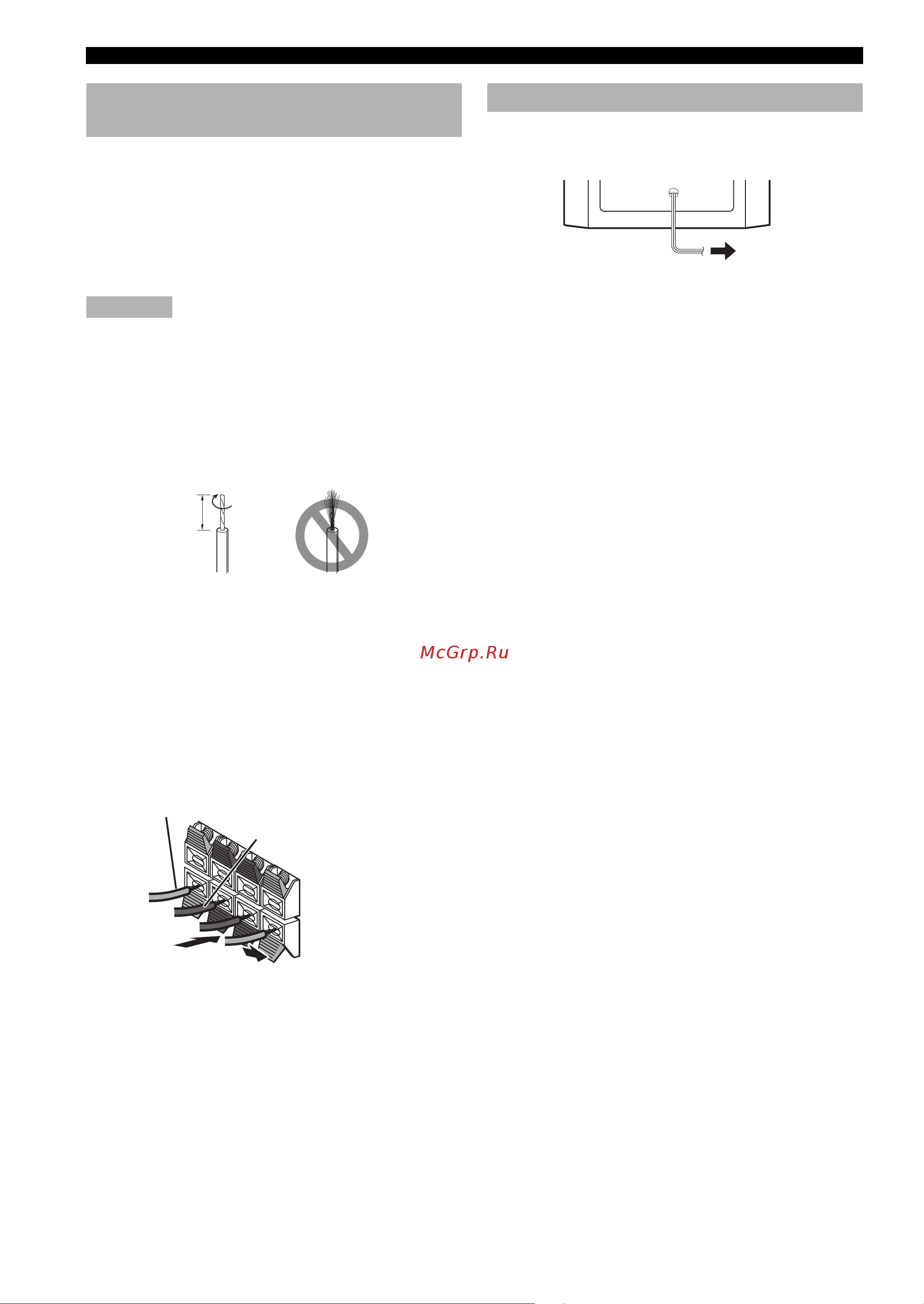

■ Before connecting

Remove the insulation coating at the extremity of each

speaker cable by twisting the coating off.

■ How to connect:

1 Press and hold the terminal’s tab, as shown in the

figure.

2 Insert the bare wire.

3 Release your finger from the tab to allow it to lock

securely on the cable’s wire end.

4 Test the firmness of the connection by pulling lightly

on the cable at the terminal.

After all connections are completed, plug in the subwoofer

and other audio/video components to the AC outlet.

CONNECTIONS

Connecting to the INPUT 1/OUTPUT

terminals of the subwoofer

Caution

Good

No Good

10 mm

(3/8”)

Note: Do not insert the

insulation coating into

the hole. The sound

may not be produced.

Black: negative (

–

)

Red: positive (+)

Plug in the subwoofer to the AC outlet

To AC outlet
