getting to know your miniDV camcorder

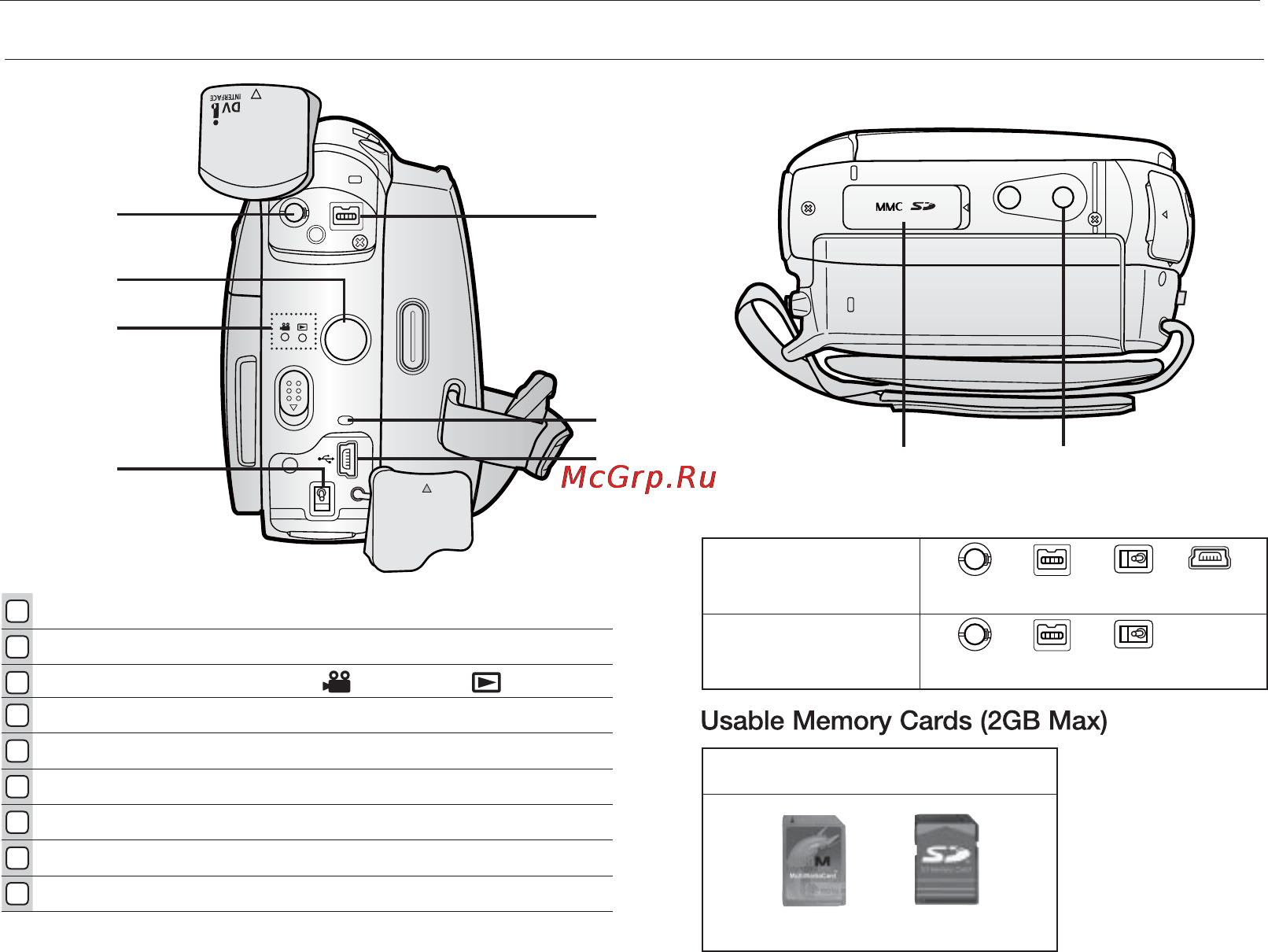

REAR & BOTTOM VIEW
1
AV jack
2
MODE button
3
Mode indicator (Camera ( ) / Player ( ) mode)
4
DC IN Jack
5
DV (IEEE1394) jack
6
Charging (CHG) indicator
7
USB jack (VP-D395i only)
8
Memory card slot (VP-D395i only)
9
Tripod receptacle
10_ English
Jacks
VP-D395i
AV DV DC IN USB
VP-D391( i )/D3910/
D392( i )
AV DV DC IN
VP-D395i only
MMC/SD
AV
MODE
DC IN
DV
POWER
CHG
