18_ English
BASIC MINIDV CAMCORDER OPERATION
Turning the miniDV camcorder on and off
You can turn the camcorder on or off by sliding the POWER switch downward.
Slide the POWER switch repeatedly to toggle the power on or off.
Setting the operating modes
•
Set the operation mode by adjusting the MODE button and Select switch
(VP-D395i only) before operating any functions.
1. Press the MODE button to set Camera( ) or Player( ).
Each press of the MODE button toggles between the Camera ( ) mode
and Player ( ) mode.
2. Set the Select switch to CARD or TAPE. (VP-D395i only)
- Camera mode ( ): To record movie or photo images on a tape. ➥page 19
- Player mode ( ): To play movie or photo images on a tape. ➥page 19
- M.Cam mode ( ): To record movie or photo images on memory card.
➥page 20
- M.Player mode ( ): To play movie or photo images on memory card.
➥page 20
• The operating modes are determined by the position of the MODE button and Select switch (VP-D395i only).
•

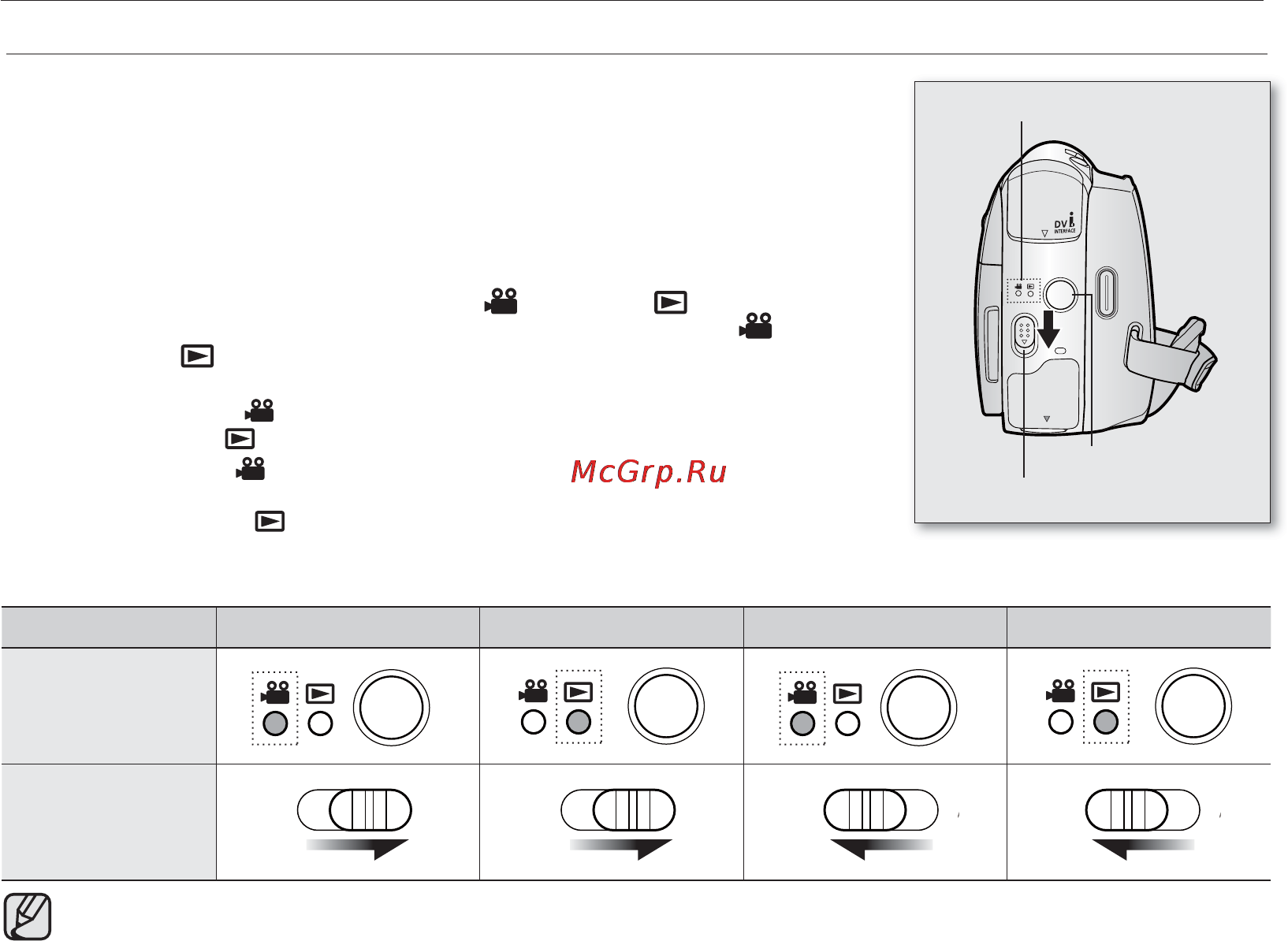

Mode Name Camera Mode Player Mode M.Cam Mode M.Player Mode
MODE button
tvkl
tvkl
tvkl
tvkl
Select switch
(VP-D395i only)
{h w ljh y k {h w ljh y k {
hw
{{
l
hwljh y k {
hw
{{
l
hwljh y k
preparation
M.Cam Mode : Memory Camera Mode
M.Player Mode : Memory Player Mode
The M.Cam Mode and the M.Player Mode are only available on the models, (VP-D395i only).
•
•
AV
MODE
DC IN
DV
POWER
CHG
MODE button
POWER switch
Mode indicator
