Notebook PC E-Manual

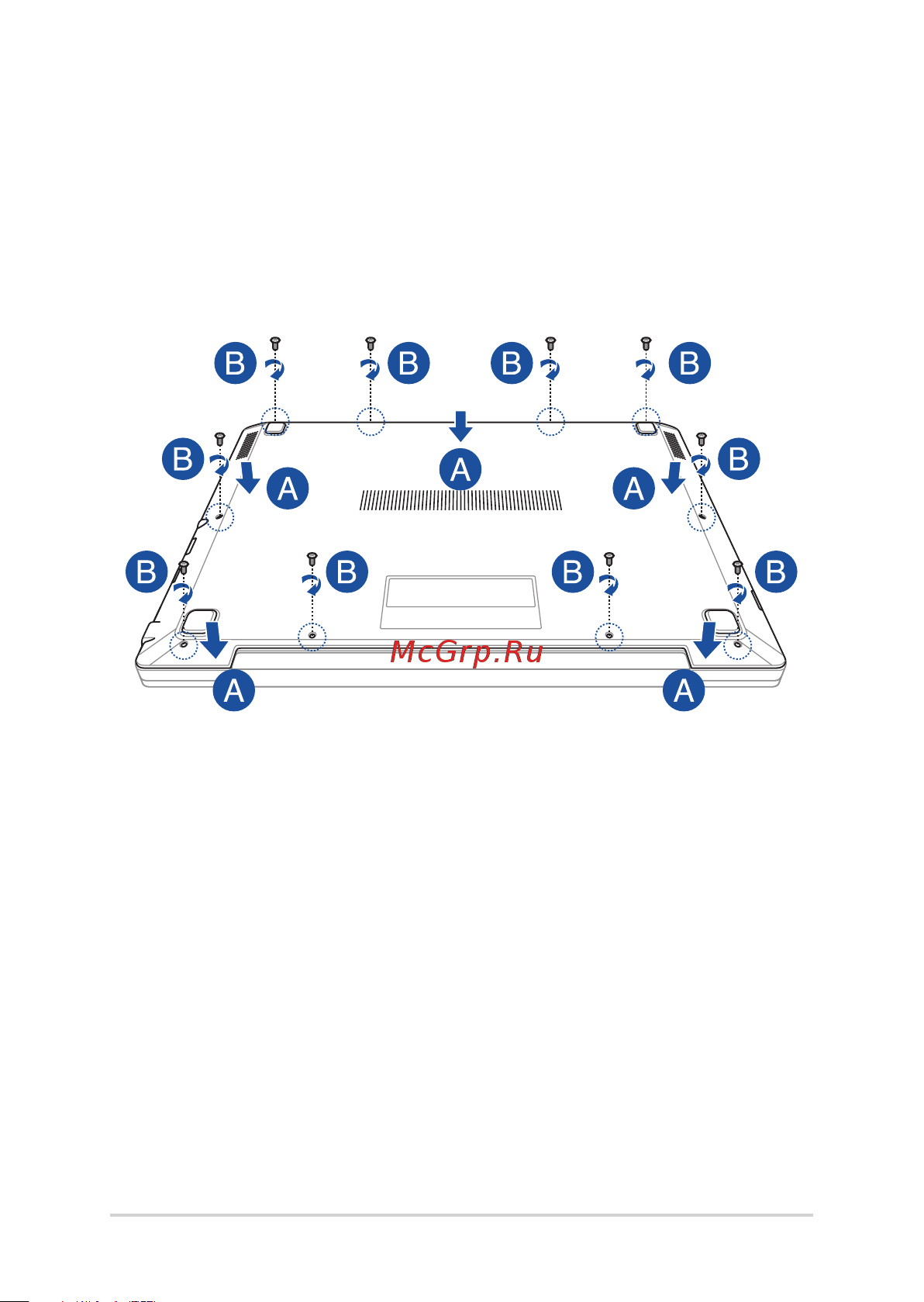

To reattach the compartment cover:

A. Align and reattach the cover of the compartment.

B. Secure the cover using the screws you removed earlier.
