Asus PRO P5440FA-BM1136T [72/104] Removing the compartment cover

Notebook PC E-Manual

Removing the compartment cover

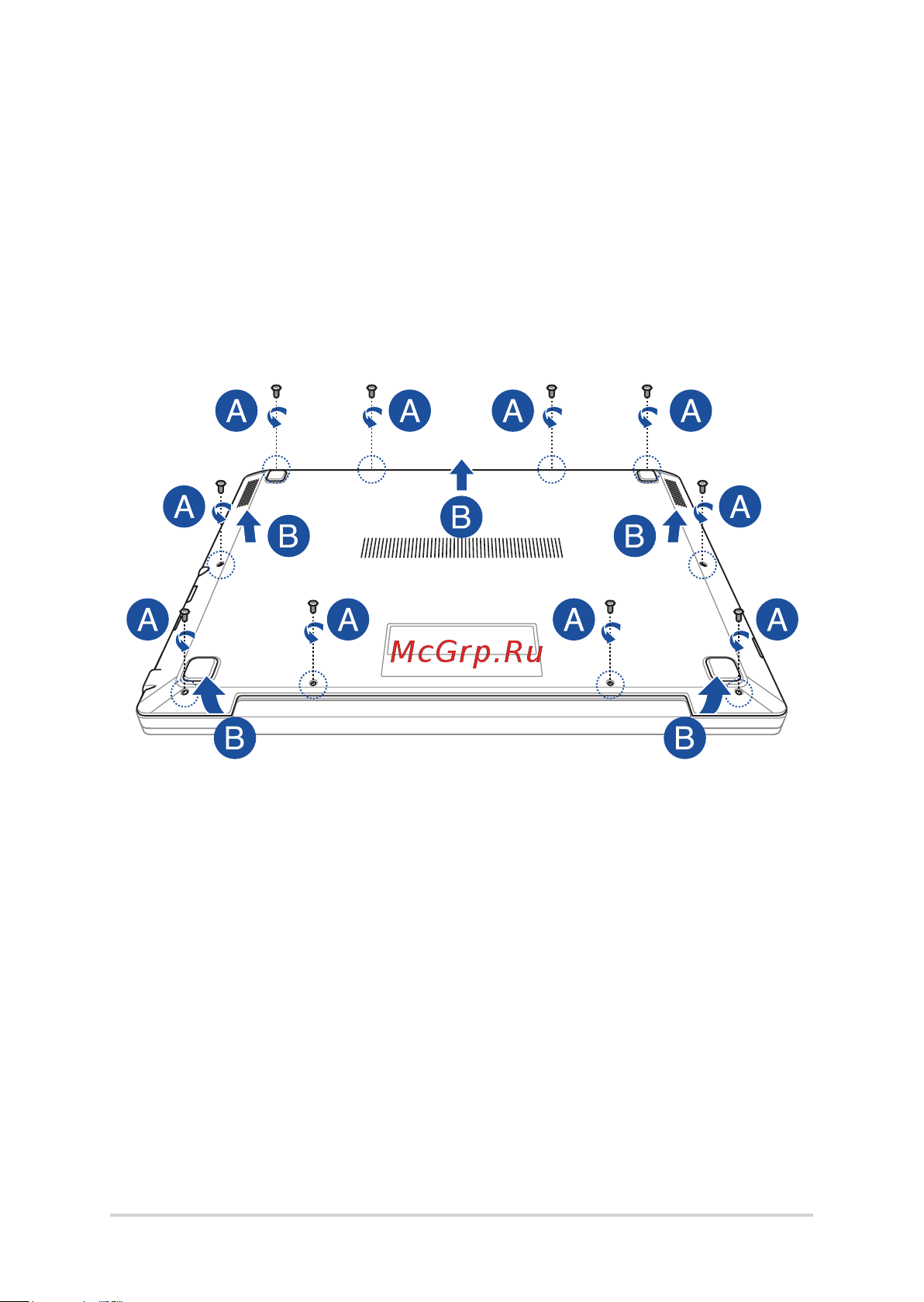

A. Remove the screws from the Notebook PC’s compartment cover.

B. Pull out the compartment cover and remove it completely from

your Notebook PC.
