Notebook PC E-Manual

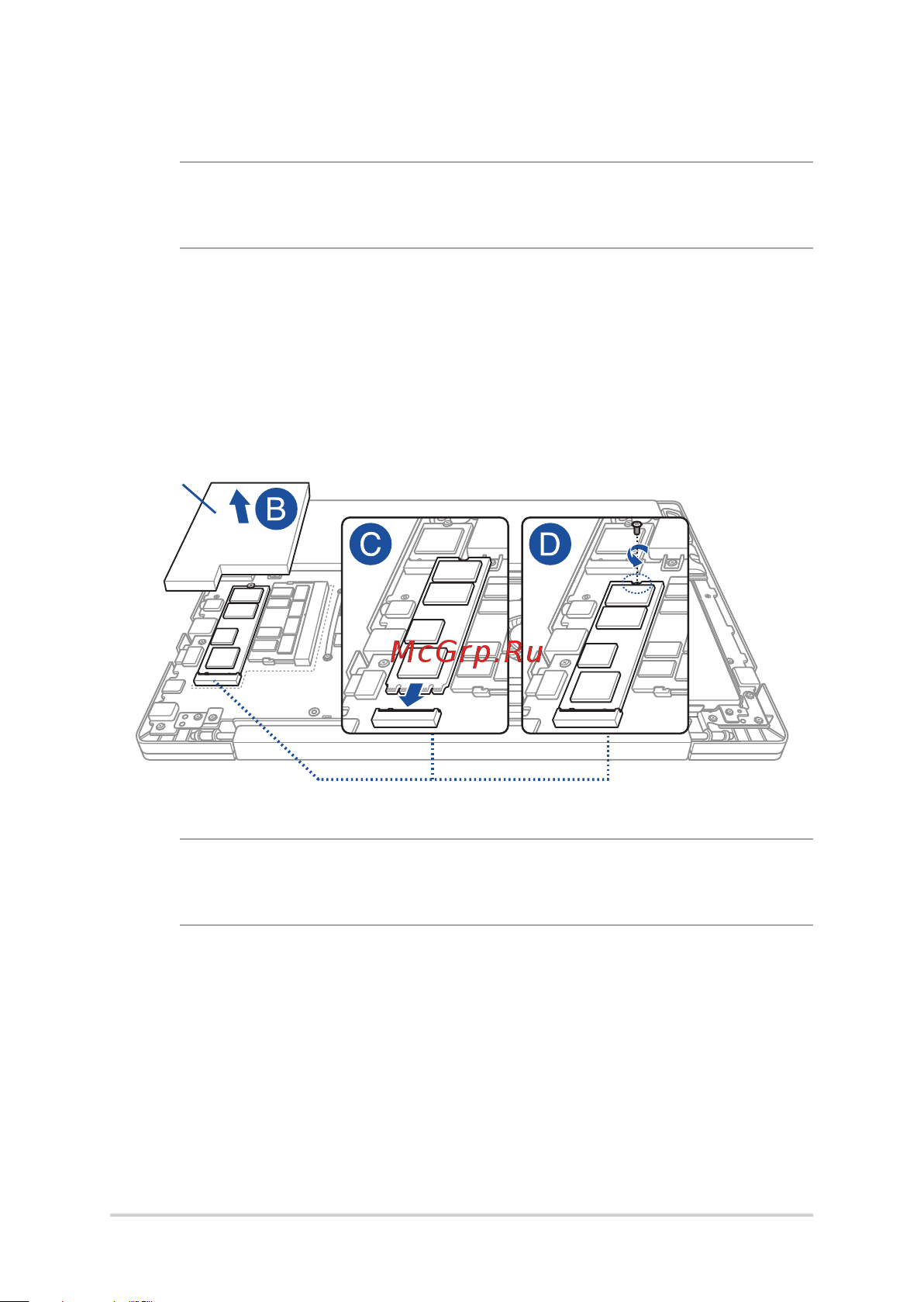

A. Remove the compartment cover.

NOTE: For more details, refer to the Removing the compartment cover

section in this manual.

B. Remove the SDD cover.

C. Align and insert the M.2 card into its card module slot.

D. Secure the M.2 card in place using the bundled screw.

SSD cover

NOTE: The M.2 2280 slot supports M.2 PCIe X4 SSD. Transfer rate of this

slot may vary per components.
