Notebook PC E-Manual

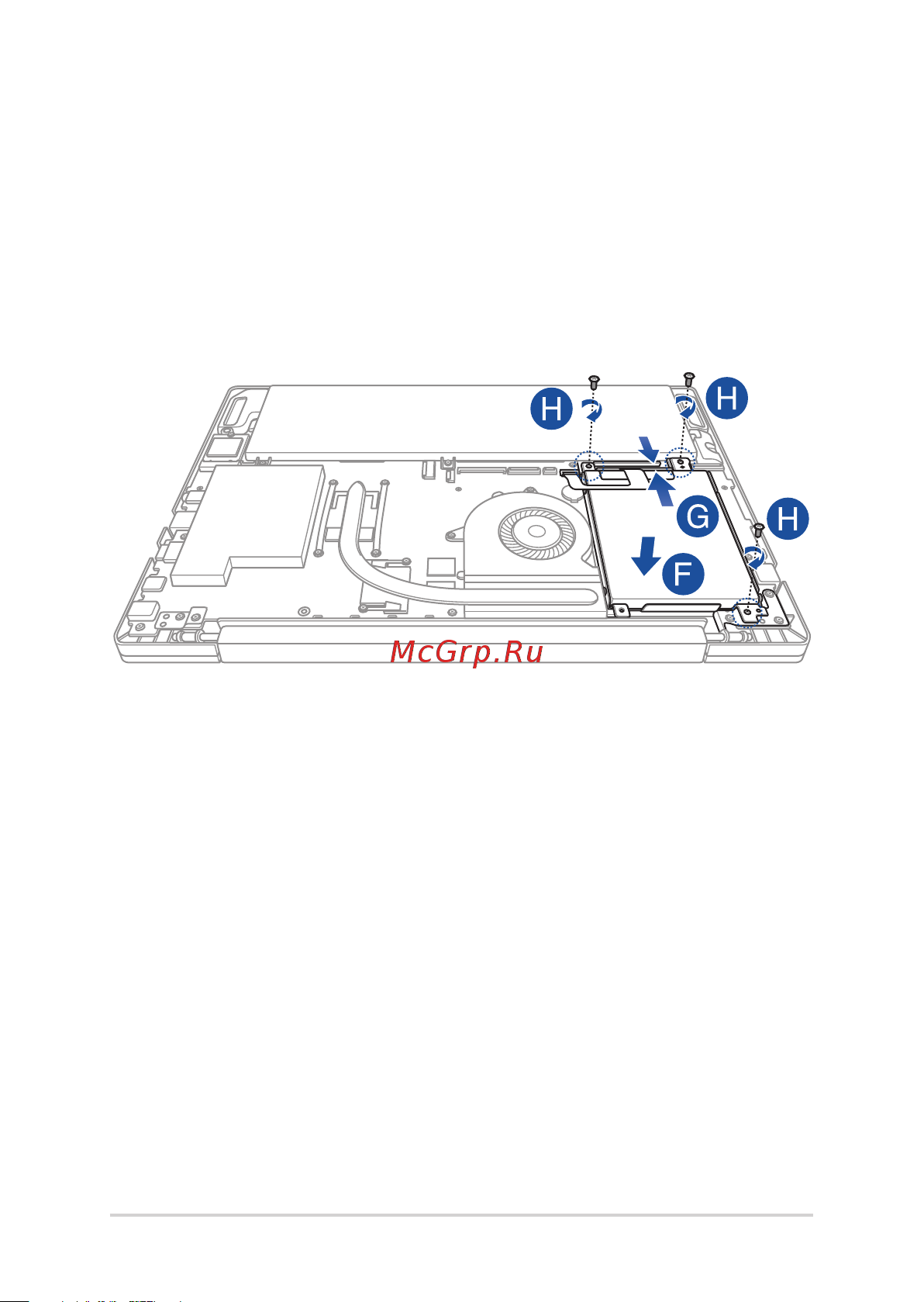

F. Replace the HDD bay back in the compartment with the HDD

connector aligned with the Notebook PC’s HDD port.

G. Push the HDD bay until it connects with the Notebook PC.

H. Secure the HDD bay with the screws you removed earlier.
