Dell Optiplex 3280-9896 [11/96] Table 1 optiplex 3280 all in one screw list

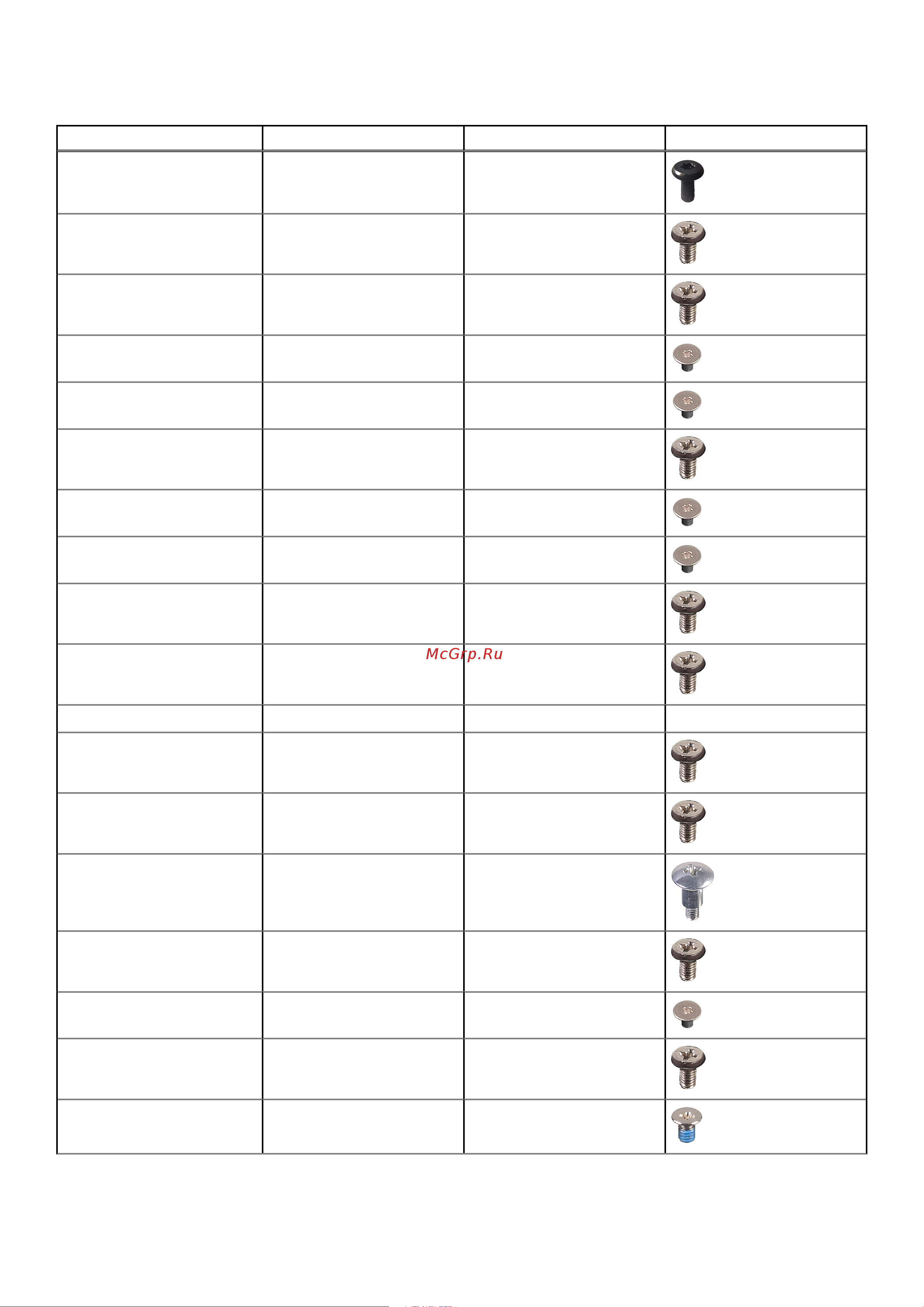

Table 1. OptiPlex 3280 All-in-One screw list

Component Screw type Quantity Screw image

Cable cover—optional M3x9 1

System-board shield M3x5 5

Bottom cover M3x5 4

M.2 2230 solid-state drive M2x2.5 1

M.2 2280 solid-state drive/

Intel Optane memory

M2x2.5 1

System fan M3x5 3

Wireless-card shield M2x2.5 2

Wireless card M2x2.5 1

Camera assembly M3x5 2

Camera door M3x5 2

Heat sink—UMA Captive screws 5

Rear-I/O bracket M3x5 4

System board M3x5 7

Speakers M3 4+7.1xZN 4

Power-button board M3x5 1

Microphones M2x2.5 2

Side I/O-board shield M3x5 2

Side-I/O board M2.5x3.5 2

Removing and installing components 11
