Dell Alienware Aurora R12 R12-4878 [11/108] Table 1 screw list

● Plastic scribe

Screw list

NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then

place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is restored when

the component is replaced.

NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when replacing a

component.

NOTE: Screw color may vary with the configuration ordered.

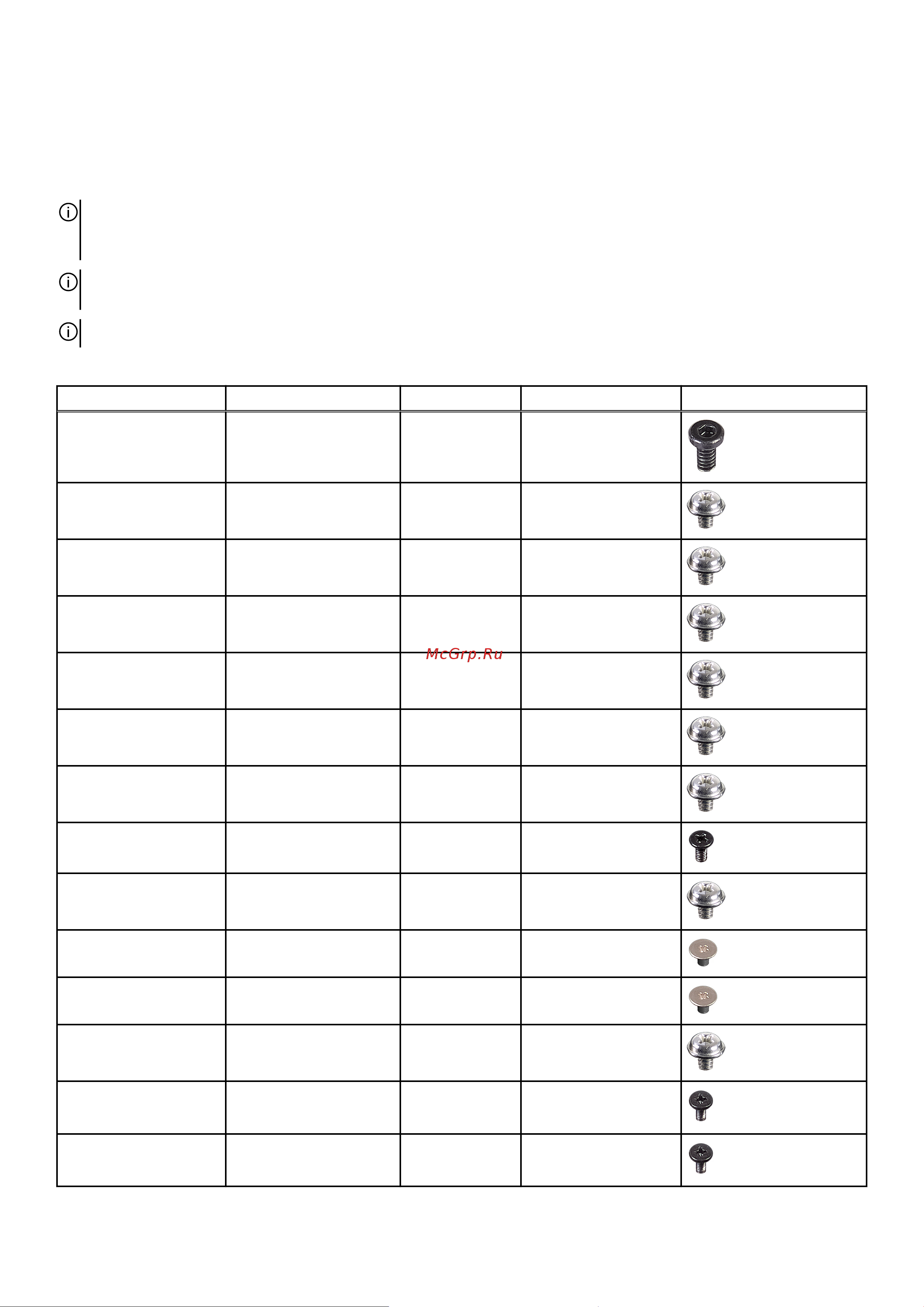

Table 1. Screw list

Component Secured to Screw type Quantity Screw image

Side-panel release latch Chassis 6-32x12-7L 1

2.5-inch hard-drive cage Chassis #6-32 2

3.5-inch hard-drive cage Chassis #6-32 2

Power-supply unit

bracket

Power-supply unit cage #6-32 2

Power-supply unit Chassis #6-32 4

Right tron-light board Chassis #6-32 4

Radiator and fan

assembly

Radiator and fan cage #6-32 4

Antennas Chassis M3x4t 4

Top bezel Chassis #6-32 4

Solid-state drive System board M2x2.5 1

Wireless card System board M2x2.5 1

Cable-management

panel

Chassis #6-32 2

Front-panel light-board Front bezel M2x4 4

Power button module Front bezel M2x4 2
