English | 21
Bosch Power Tools 1 609 92A 33B | (17.6.16)
Mounting/Replacing the Application Tool/Accessory
(GOP 30-28)
If required, remove an already mounted application tool/
accessory.
For removing the application tool/accessory, loosen the
screw 6 with the hex key 7 and remove the application
tool/accessory.
Mount the requested application tool/accessory (e.g. plunge
cut saw blade 5) in such a manner on the tool holder 4 that the
offset faces downward (see illustration on the graphics page;
marking on the application tool/accessory is readable from
above).
Turn the application tool/accessory to a position favourable
for the respective job, and allow it to engage into the cams of
the tool holder 4. 12 different positions are possible, each
offset by 30°.
Fasten the application tool/accessory with bolt 6. Tighten the
bolt with hex key 7 until the spring washer of the bolt faces
flush against the application tool/accessory.
Check the tight seating of the application tool/accessory.
Incorrect or not securely fastened application tools/accesso-
ries can come loose during operation and pose a hazard.
Mounting/Replacing the Application Tool/Accessory
(GOP 40-30/GOP 55-36)
If required, remove an already mounted application tool/ac-
cessory.
To do so, open the SDS lever 12 all the way. The application
tool/accessory will be ejected.
Mount the requested application tool/accessory (e.g. plunge
cut saw blade 5) in such a manner on the tool holder 4 that the
offset faces downward (see illustration on the graphics page;
marking on the application tool/accessory is readable from
above).
HM-Riff sanding
finger
Wood,
Paint
Sanding wood or paint in hard to reach areas without
sanding paper;
example: sanding off paint between shutter louvres,
sanding wooden floors in corners
HM-Riff plunge cut
saw blade
Fibreglass,
Mortar,
Wood
Plunge cuts in severely abrasive materials;
example: routing thin mosaic tiles
HCS universal joint
cutter
Expansion joints,
Putty,
Insulation materials (rock
wool)
Cutting and separating soft materials;
example: cutting silicone expansion joints or putty
BIM plunge cut saw
blade, wood and
metal
Softwood,
Hardwood,
Veneered panels,
Plastic-laminated panels,
Non-hardened nails and
screws
Fast, deep plunge cuts in wood and metal;
example: quick cutting of wood containing nails, deep
plunge cuts in laminated panels and precise shortening of
door frames
TC plunge cut saw
blade, metal
Stainless steel (Inox),
Screws and nails,
Epoxy resin,
Glass fibre reinforced
plastics,
Fibreglass,
Plasterboard,
Porous concrete
Fast, deep plunge cuts in severely abrasive materials or
metal;
example: fast cutting of kitchen front covers, easy cutting
through hardened screws, nails and stainless steel
BIM plunge cut saw
blade, wood and
metal
Wood,
Abrasive wooden
materials,
Plastics,
Hardened nails and
screws,
Non-ferrous metal pipes
Fast, deep plunge cuts in wood, abrasive wooden materials
and plastics;
example: fast cutting of non-ferrous metal pipes and pro-
files with smaller dimensions, easy cutting of non-hardened
nails, screws and steel profiles with smaller dimensions
HCS plunge cut saw
blade, wood
Softwood,
Dowels,
Tenons,
Furniture components
Fast, deep separating and plunge cuts; also for sawing
close to edges in corners and hard to reach areas;
example: deep plunge cut in softwood for installing a
ventilation grid

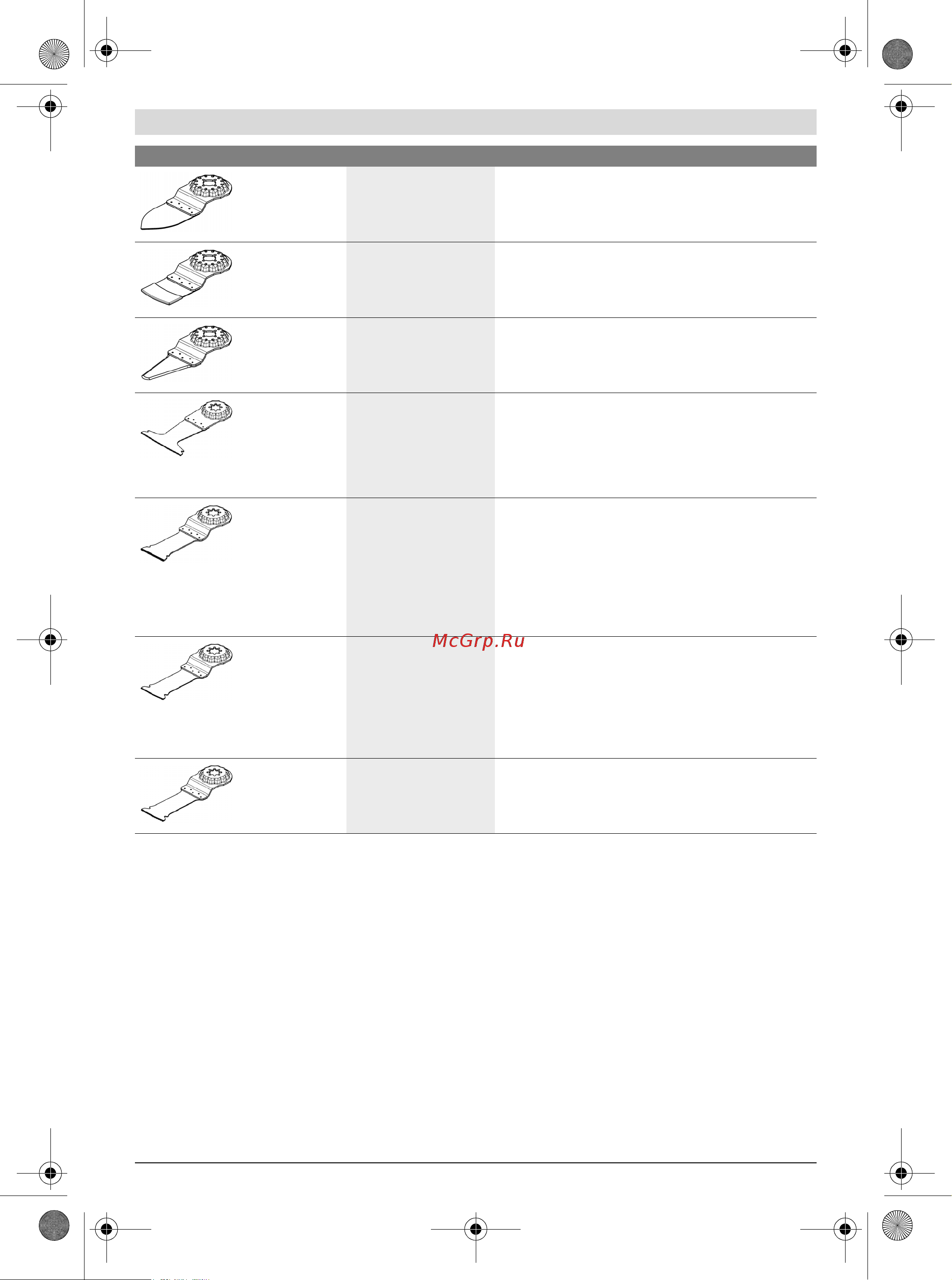

Accessory Material Application
OBJ_BUCH-2566-002.book Page 21 Friday, June 17, 2016 1:16 PM
