with the button (24) and indicated with the indicators
(21) «LOW, MID, HIGH».
•
To switch the fan off press the «ON/OFF» button (25).
•
You may change the position of the motor unit (9) of the fan
in accordance with the required air flow angle in the verti
-
cal position, the fan slope angle is set manually. To change
the fan slope angle press with a slight effort on the motor
unit (9) upwards or downwards. Clicking while the fan is
being tilted is normal.
•
Insert the power plug into the socket, you will hear a
sound signal.
•
Press the «ON/OFF» button (28) on the remote control
(26), the air flow mode indicator (19) «SLP» (red) and the
blades rotation speed indicator (21) «LOW» will light up
on the control panel (10), and the fan will start operating.
•
By pressing the «SPEED» button (30) again you may set
the required blades rotation speed of the fan, the light
indicators (19) on the control panel (10) inform about the
selected speed:
–
«LOW» – low air flow speed
–
«MID» – medium air flow speed
–
«HIGH» – high air flow speed.
•
Press the «OSC» button (31) on the remote control (26)
to switch the 90° oscillation operation mode of the fan on,
the indicator (18) will light up on the control panel (10). To
switch this function off or to set the unit body rotation in
the desired direction press the «OSC» button (31) again.
•
Consequently press the «MODE» button (29) on the
remote control (26) to select the air flow mode. You may
choose three operation modes, the operation modes are
indicated with a change of the «SLP» indicator’s (19) color
on the control panel (10):
–
«NORMAL» – simple ventilation, the «SLP» indicator (19)
glows red; the blades rotation speed mode is selected
with the button (30) and indicated with the indicators
(21) «LOW, MID, HIGH» on the control panel (10).
–
«NATURE» – natural wind, the «SLP» indicator (19) is off;
natural wind imitation mode, the air flow speed is chaoti
-
cally changing: from soft breeze to strong gust of wind.
–
«SLEEP» – calming wind, the «SLP» indicator (19) glows
green; the air flow speed is changing in cycles, con
-
stantly increasing and decreasing.
–
«NORMAL» – simple ventilation, the «SLP» indicator (19)
glows red; the blades rotation speed mode is selected
with the button (30) and indicated with the indicators
(21) «LOW, MID, HIGH» on the control panel (10).
•
Select the operation time of the automatic switch-off timer
by consequently pressing the «TIMER» button (27) on the
remote control (26), the light indicators (20) on the control
panel (10) will inform about the set operation time. You can
set the fan operation time from 0.5 hours to 7.5 hours (with
0.5 hours setting step).To switch the timer off press the
«TIMER» button (27) repeatedly until all the indicators (20)
on the control panel (10) go out.
•
To switch the fan off press the «ON/OFF» button (28).
Using the remote control (26)
To use the remote control (RC) (26) open the battery compart
-
ment lid (32) and insert 2 «AAA» batteries (not supplied with
the unit) into the battery compartment strictly following the
polarity, close the battery compartment lid (32).
If you do not use the unit for a long time, remove the batteries
from the battery compartment of the remote control (26).
Note:
–
Replace the batteries in the remote control (26) in time,
to avoid damage of the remote control (26) do not allow
leaking of batteries.
–
Every pressing of the control panel (26) buttons is accom-
panied by a sound signal.
•
Insert the power plug into the socket, you will hear a
sound signal.
•
Press the «ON/OFF» button (28) on the remote control
(26), the air flow mode indicator (19) «SLP» (red) and the
blades rotation speed indicator (21) «LOW» will light up
on the control panel (10), and the fan will start operating.
•
By pressing the «SPEED» button (30) again you may set
the required blades rotation speed of the fan, the light
indicators (19) on the control panel (10) inform about the
selected speed:
–
«LOW» – low air flow speed
–
«MID» – medium air flow speed
–
«HIGH» – high air flow speed.
•
Press the «OSC» button (31) on the remote control (26)
to switch the 90° oscillation operation mode of the fan on,
the indicator (18) will light up on the control panel (10).
To switch this function off or to set the unit body rota-
tion in the desired direction press the «OSC» button (31)
again.
•
Consequently press the «MODE» button (29) on the
remote control (26) to select the air flow mode. You may
choose three operation modes, the operation modes are
indicated with a change of the «SLP» indicator’s (19) color
on the control panel (10):
–
«NORMAL» – simple ventilation, the «SLP» indicator (19)
glows red; the blades rotation speed mode is selected
with the button (30) and indicated with the indicators
(21) «LOW, MID, HIGH» on the control panel (10).
–
«NATURE» - natural wind, the «SLP» indicator (19) is off;
natural wind imitation mode, the air flow speed is chaoti
-
cally changing: from soft breeze to strong gust of wind.
–
«SLEEP» – calming wind, the «SLP» indicator (19) glows
green; the air flow speed is changing in cycles, con
-
stantly increasing and decreasing.
–
«NORMAL» – simple ventilation, the «SLP» indicator (19)
glows red; the blades rotation speed mode is selected
with the button (30) and indicated with the indicators
(21) «LOW, MID, HIGH» on the control panel (10).
•
Select the operation time of the automatic switch-off
timer by consequently pressing the «TIMER» button (27)
on the remote control (26), the light indicators (20) on
the control panel (10) will inform about the set operation
time. You can set the fan operation time from 0.5 hours to
7.5 hours (with 0.5 hours setting step).To switch the timer
off press the «TIMER» button (27) repeatedly until all the
indicators (20) on the control panel (10) go out.
•
To switch the fan off press the «ON/OFF» button (28).
MAINTENANCE AND CARE
•
Before cleaning the fan switch it off by pressing the
«ON/OFF» button (25) on the control panel (10) or the
«ON/OFF» button (28) on the remote control (26) and
unplug it.
•
Do not use abrasive cleaners and solvents to clean
the unit.
•
Clean the motor unit (9) with a slightly damp cloth, and
then wipe it dry.
•
If you need to clean the blades (4), unscrew the nut on the
ring (3), remove the ring (3), remove the front grid (1), and
then wipe the blades with a slightly damp cloth.
•
Install the front grid (1) and the ring (3) back to its place.
•
You may clean the fan blades with a vacuum cleaner using
a proper attachment.
•
Do not immerse the motor unit (9) of the fan into water or
any other liquids. Make sure that no liquids get into the
motor unit (9) of the fan to avoid its damage and prevent
risk of electric shock.
Storage
–
Unplug the fan and clean it.
–
Disassemble the fan, if needed.
–
Remove the ring (3), the front grid (1), unscrew the
blade clamp (2) by turning it clockwise, remove the
blades (4), unscrew the fixing nut of the rear grid (5) and
remove the grid (6).
–
Unscrew the clamp (11) and remove the motor unit (9) from
the telescopic bar (12).
–
Unscrew 4 nuts and remove the telescopic bar (12) from
the supports (15).
–
Pack the fan into the original package and put it away for
storage in a dry cool place away from children.
DELIVERY SET
Motor unit – 1 pc.
Front grid – 1 pc.
Clamp ring with the screw and nut – 1 pc.
Blade clamp – 1 pc.
Blades – 1 pc.
Rear grid – 1 pc.
Telescopic bar with clamp and decorative
panel – 1 pc.
Supports – 2 pcs.
Screw – 4 pcs.
Remote control – 1 pc.
Instruction manual – 1 pc.
TECHNICAL SPECIFICATIONS
Power supply: 220-240 V ~ 50-60Hz
Rated input power: 55 W
Blades diameter: 40 cm (16»)
RECYCLING
For environment protection do not throw out the unit and the
batteries (if included), do not discard the unit and the batter
-
ies with usual household waste after the service life expiration;
apply to specialized centers for further recycling.
The waste generated during the disposal of the unit is subject
to mandatory collection and consequent disposal in the
prescribed manner.
For further information about recycling of this product apply
to a local municipal administration, a disposal service or to the
shop where you purchased this product.
The manufacturer preserves the right to change design,
structure and specifications not affecting general princi
-
ples of the unit operation without a preliminary notifica-
tion due to which insignificant differences between the
manual and product may be observed. If the user reveals
such differences, please report them via e-mail info@vitek.ru
for receipt of an updated manual.
Service life of the fan is 3 years
Guarantee
Details regarding guarantee conditions can be obtained from
the dealer from whom the appliance was purchased. The bill
of sale or receipt must be produced when making any claim
under the terms of this guarantee.
This product conforms to the EMC Directive
2014/30/EU and to the Low Voltage Directive
2014/35/EU.
2 3
STAND FAN VT-1949 W
The fan is intended for artificial ventilation of the room.

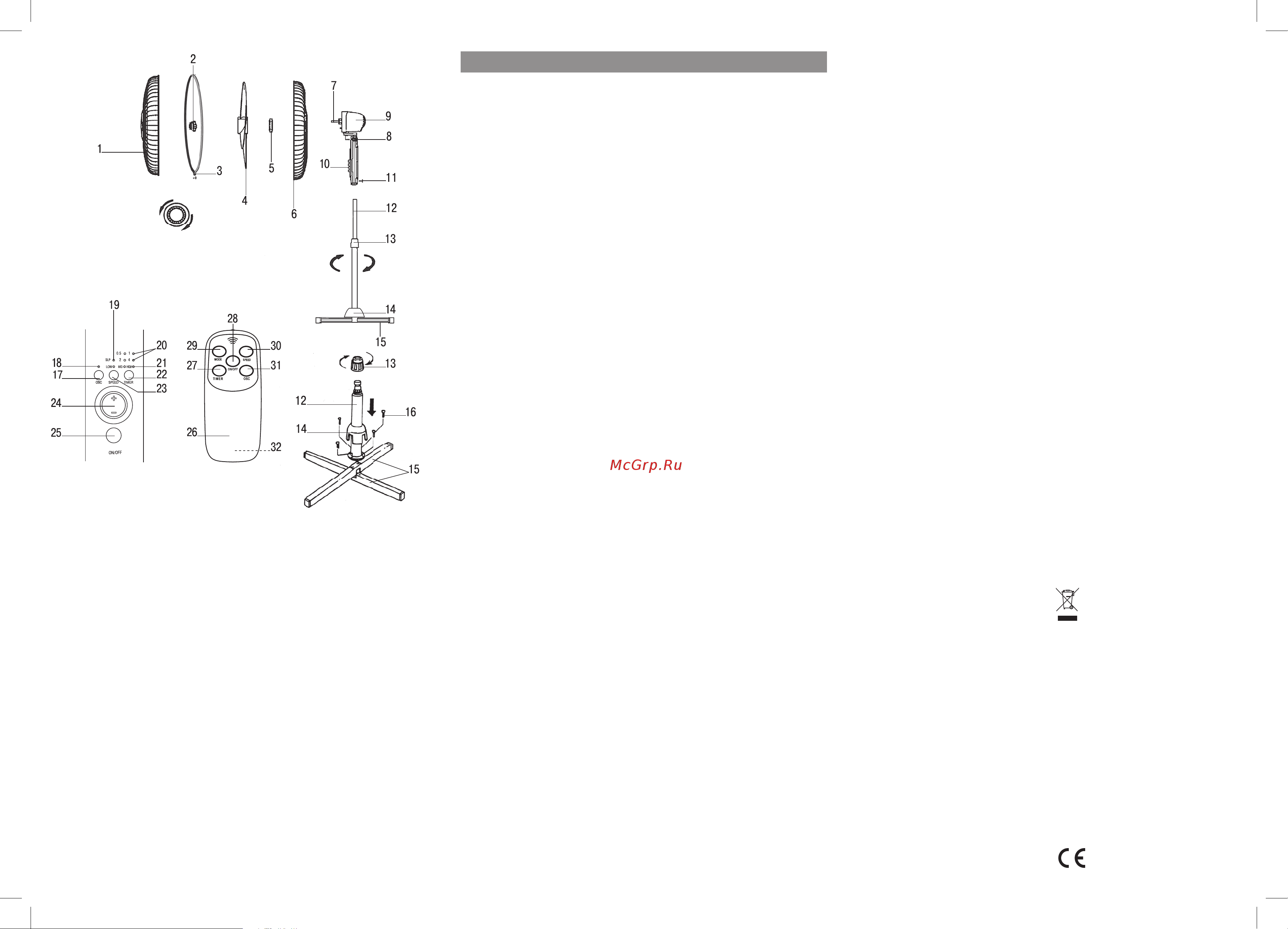

Description
1.
Front safety grid
2.
Blade clamp
3.
Clamp ring with screw and nut
4.
Blades
5.
Rear grid fastening nut
6.
Rear grid with carrying handle
7.
Motor axis
8.
Slope angle adjuster
9.
Motor unit
10.
Control panel
11.
Motor unit clamp
12.
Telescopic bar
13.
Telescopic bar clamp
14.
Decorative panel
15.
Supports
16.
Fastening screws
Control panel (10)
17.
«OSC» rotation mode button
18.
Rotation mode power indicator «OSC»
19.
Air flow mode indicator «SLP»
20.
Automatic switch-off timer operation time indicators
«0,5-1-2-4»
21.
Blades rotation speed indicators «LOW, MID, HIGH»
22.
«TIMER» timer operation time selection button
23.
Speed operation mode selection button «SPEED»
24.
Operation mode setting button
25.
Fan on/off button «ON/OFF»
Remote control (26)
27. «TIMER» timer operation time selection button
28. «ON/OFF» button
29. «MODE» air flow mode selection button
30. Speed operation mode selection button «SPEED»
31. «OSC» rotation mode button
32. Battery compartment lid
SAFETY MEASURES
Before using the electrical appliance, read this instruction
manual carefully, and keep it for further reference.
Use the unit for intended purposes only, as specified in this
manual. Mishandling the unit can lead to its breakage and
cause harm to the user or damage to his/her property.
•
Before switching the unit on for the first time, make sure
that your home mains voltage corresponds to unit oper
-
ating voltage.
•
Before using the unit, examine the power cord closely and
make sure that it is not damaged. If you find that the power
cord is damaged, do not use the unit.
•
Do not use the fan outdoors.
•
Place the unit on a flat, dry and steady surface away from
sources of heat or open flame.
•
Do not use the unit near containers filled with water, next to
a kitchen sink, in wet basements or near a swimming pool.
•
Do not immerse the fan, power cord and power plug into
water or any other liquids.
•
Do not touch the unit body and the power plug with
wet hands.
•
If the fan falls into water, unplug it before touching it and
only then you may take the fan out of water. Apply to the
nearest authorized service center for testing or repairing
the unit at the contact addresses given in the warranty cer
-
tificate and on the website www.vitek.ru.
•
Make sure that the power cord does not contact with hot
surfaces and sharp furniture edges.
•
Do not switch the unassembled fan on.
•
Do not insert any foreign objects into the openings of the
fan protective grids to avoid injuries or unit damage.
•
Do not touch the rotating blades during the fan operation.
•
Do not place the fan near curtains or house plants.
•
It is not recommended to stay under the air flow coming
from the fan for a long time (especially for children and
elderly people).
•
Do not leave the operating unit unattended.
•
Unplug the fan before cleaning and when you do not use
the unit or before moving it to a new place.
•
When unplugging the fan, pull the plug but not the cord.
•
Clean the unit regularly.
•
Do not leave children unattended to prevent using the
unit as a toy.
•
For children safety reasons do not leave polyethylene
bags, used as packaging, unattended.
ATTENTION! Do not allow children to play with polyethylene
bags or packaging film. Danger of suffocation!
•
Do not allow children to touch the unit body and the power
cord during the unit operation.
•
The unit is not intended for usage by physically or mentally
disabled persons (including children) or by persons lack
-
ing experience or knowledge if they are not under supervi-
sion of a person who is responsible for their safety or if they
are not instructed by this person on the usage of the unit.
•
Do not use the fan if the blades, power cord or power
plug are damaged, if the fan works improperly, after it was
dropped or was damaged in some other way.
•
Do not attempt to repair the unit. Do not disassemble the
unit by yourself, if any malfunction is detected or after it
was dropped, unplug the unit and apply to any authorized
service center at the contact addresses given in the war
-
ranty certificate and on the website www.vitek.ru.
•
Transport the unit in the original package.
•
Keep the unit in a dry cool place out of reach of children
and disabled persons.
THE UNIT IS INTENDED FOR HOUSEHOLD USE ONLY, ITS
COMMERCIAL USAGE AND USAGE IN PRODUCTION AREAS
AND WORK SPACES IS PROHIBITED.
BEFORE THE FIRST USE
After unit transportation or storage at low temperature
keep it for at least three hours at room temperature
before switching on.
Fan assembling
•
Unpack the unit and remove any stickers that can prevent
its operation.
•
Check the unit for damages, do not use it in case of
damages.
•
Set the supports (15) crosswise on a flat dry surface.
•
Set the telescopic bar (12) on the supports (15) and fix it
with four fastening screws (16).
•
Unscrew and remove the clamp (13) by rotating it counter-
clockwise, set the decorative panel (14) on the telescopic
bar (12). Set the clamp (13) back to its place by turning it
clockwise for several times.
•
Extend the bar (12) to the desired height and fix it by
tightening the clamp (13) with a slight effort as you turn
it clockwise.
•
Install the motor unit (9) on the telescopic bar (12) until
bumping and fix it with the clamp (11), do not apply exces
-
sive effort when screwing the clamp of the motor unit (11).
•
Set the rear grid (6) on the motor unit (9) matching the
guides on the motor unit (9) with the corresponding open
-
ings on the grid (6). The carrying handle on the rear grid (6)
should be turned upwards.
•
Fix the rear grid (6) on the motor unit (9) with the plastic nut
(5) by screwing it clockwise until bumping.
•
Put the blades (4) on the motor axis (7) matching the
groove on the blades with the clamp on the motor axis
and fix them with the plastic clamp (2) rotating it counter
-
clockwise and holding the blades (4) with your free hand.
•
Set the nut and the fixing screw into the clamp ring (3)
sockets.
•
Match the front grid (1) and the rear grid (6), fix them with
the clamp ring (3) and tighten up the clamp ring (3) by
turning the fixing screw tight.
Note! For easy assembling of the fan grids first install the
clamp ring (3) on the rear grid (6) and tighten up the fasten
-
ing screw slightly. Install the bottom part of the front grid (1)
on the clamp ring (3). Then press the bottom part of the front
grid (1) to the clamp ring (3) and squeezing both grids on the
both sides install the grid (1) under the clamp ring (3). Tighten
the fastening screw (4).
•
The fan is ready for operation.
USAGE
•
Before using the unit for the first time, make sure that
the voltage in your mains corresponds to the unit oper
-
ating voltage.
•
Insert the power plug into the socket, you will hear a
sound signal.
Note: every pressing of the control panel buttons (17, 22, 23,
24, 25) is accompanied by a sound signal.
•
Press the «ON/OFF» button (25), there will be a sound sig-
nal, the air flow mode indicator (19) «SLP» (red) and the
blades rotation speed indicator (21) «LOW» will light up,
and the fan will start operating.
•
Press upper or lower part of the button (24) again to select
the blades rotation speed; the light indicators (21) inform
about the selected blades rotation speed:
–
«LOW» – low air flow speed
–
«MID» – medium air flow speed
–
«HIGHT» – high air flow speed.
•
Press the «OSC» button (17) to switch the 90° oscilla-
tion operation mode of the fan on, the indicator (18)
will light up.
•
To stop the rotation mode, press the «OSC» button (17)
again, the indicator (18) will go out.
•
Automatic switch-off timer operation time is selected
by the «TIMER» button (22), the light indicators (20) will
inform about the set time. You can set the fan operation
time from 0.5 hours to 7.5 hours (with 0.5 hours set
-
ting step).
•
To switch the timer off press the «TIMER» button (22)
repeatedly until all the indicators (20) go out.
•
Consequently press the «SPEED» button (23) to select the
air flow mode. You may choose three operation modes, the
operation modes are indicated with a change of the «SLP»
indicator’s (19) color:
–
«NORMAL» – simple ventilation, the «SLP» indicator (19)
glows red; the blades rotation speed mode is selected
with the button (24) and indicated with the indicators
(21) «LOW, MID, HIGH».
–
«NATURE» - natural wind, the «SLP» indicator (19) is off;
natural wind imitation mode, the air flow speed is chaoti
-
cally changing: from soft breeze to strong gust of wind.
–
«SLEEP» - calming wind, the «SLP» indicator (19) glows
green; the air flow speed is changing in cycles, con
-
stantly increasing and decreasing.
–
«NORMAL» – simple ventilation, the «SLP» indicator (19)
glows red; the blades rotation speed mode is selected
ENGLISH
IM VT-1949.indd 1 01.11.2018 14:52:04
Содержание
Похожие устройства
- Midea MC-BL201 Руководство по эксплуатации
- Midea MC-BL202 Руководство по эксплуатации
- Midea MC-BL1005 Руководство по эксплуатации
- LG TW7000DS Руководство по эксплуатации
- Timberk swh se1 15 vu Руководство по эксплуатации
- Timberk swh se1 10 vo Руководство по эксплуатации
- Timberk swh se1 10 vu Руководство по эксплуатации
- Gorenje GW641X Инструкция по эксплуатации
- Gorenje GW641MB Инструкция по эксплуатации
- Gorenje G641X Инструкция по эксплуатации
- Gorenje GW641W Инструкция по эксплуатации
- Атлант СМА-60 У 87-000 Руководство по эксплуатации
- Gorenje BO715E10BG Руководство по эксплуатации
- Gorenje BO735E20BG-M Руководство по эксплуатации
- Gorenje BO735E20WG-M Руководство по эксплуатации
- Gorenje G641CLB Руководство по эксплуатации
- Gorenje G641CLI Руководство по эксплуатации
- Gorenje GT641W Руководство по эксплуатации
- Gorenje GT641B Руководство по эксплуатации
- Gorenje GW641INI Инструкция по эксплуатации
