6HR 34/3
6HR 34/4
6HR 34/5
6HR 34/7
6HR 34/6
6HR 34/8
6HR 34/9
6HR 34/11
6HR 34/13
6HR 34/16
6HR 34/19
6HR 34/22
6HR 34/27
η = 75%
50
67

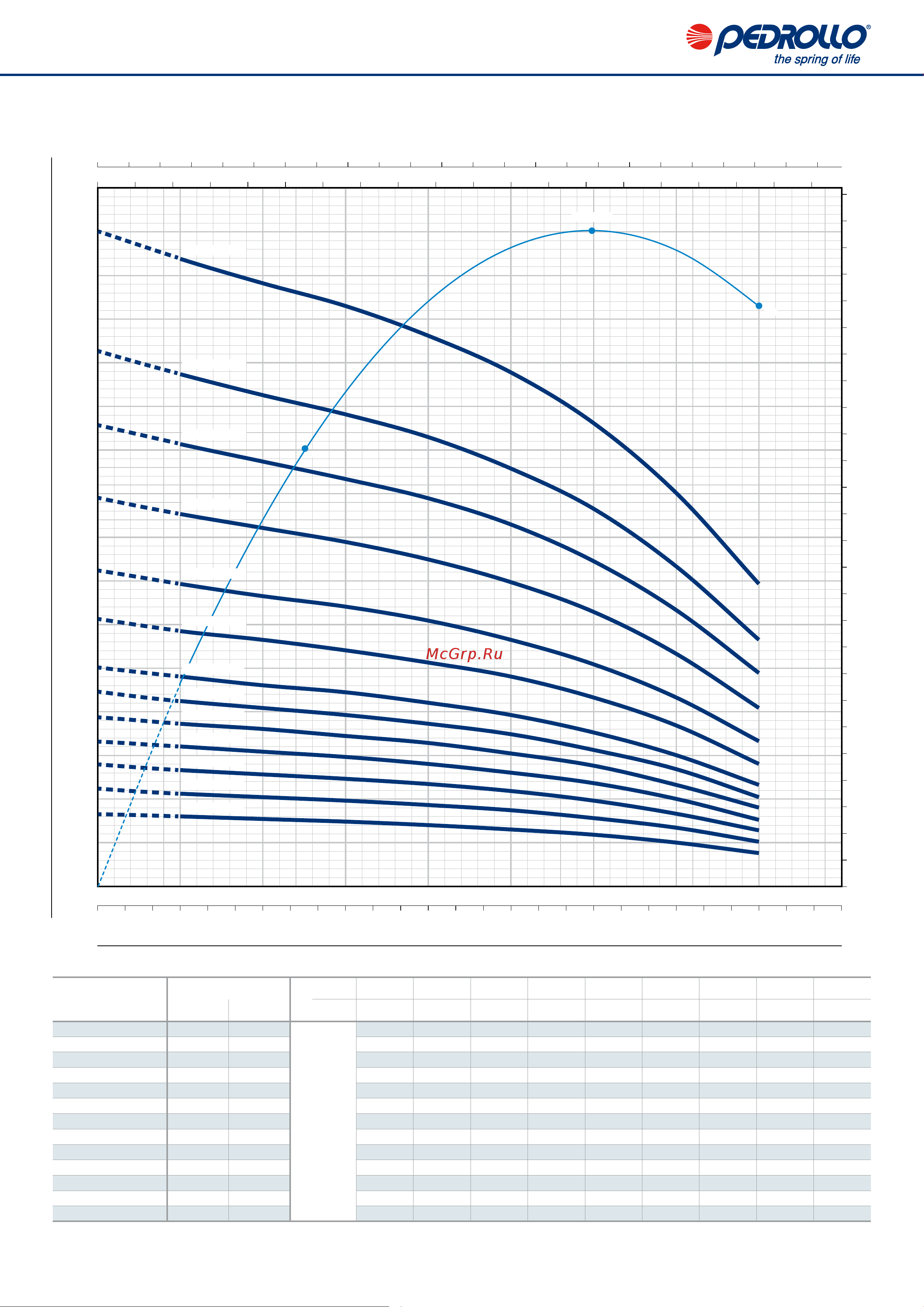

CHARACTERISTIC CURVES AND PERFORMANCE DATA 50 Hz n= 2900 min
MODEL POWER (P)
Q
m³/h 0 6 12 18 24 30 36 42 48
Three-phase kW HP
l/min 0 100 200 300 400 500 600 700 800
6HR34/3 4 5.5
H
metres
41.5 40 38.5 37 35 32.5 29.5 25 19
6HR34/4 5.5 7.5
55.5 53 51 49 46.5 43.5 39 33.5 25.5
6HR34/5 7.5 10
69.5 66.5 64 61.5 58.5 54.5 49 41.5 32
6HR34/6 9.2 12.5
83 80 77 74 70 65 59 50 38
6HR34/7 11 15
97 93 90 86 82 76 69 58 45
6HR34/8 11 15
111 106 102 98 93 87 78 67 51
6HR34/9 13 17.5
(1)
125 120 115 111 105 98 88 75 58
6HR34/11 15 20
153 146 141 135 128 120 108 92 70
6HR34/13 18.5 25
181 173 166 160 152 141 127 108 83
6HR34/16 22 30
222 213 205 197 187 174 157 133 102
6HR34/19 26 35
(2)
264 253 243 233 222 207 186 158 122
6HR34/22 30 40
306 293 281 270 257 239 216 183 141
6HR34/27 37 50
375 359 345 332 315 294 265 225 173
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
(1) Pump tted with a 20 HP motor
(2) Pump tted with a 40 HP motor
Flow rate Q
4
Head H (metres)
4
6HR34 | 50 Hz
