Pedrollo 6HR 54/13 - HYD [3/8] Characteristic curves and performance data 50 hz n 2900 min 1
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Pedrollo 6HR 54/13 - HYD [3/8] Characteristic curves and performance data 50 hz n 2900 min 1

Pedrollo 6HR 54/6 - HYD [3/8] Characteristic curves and performance data 50 hz n 2900 min 1
314
6HR44
0 100 200 300 400 500 600 700 800 900 1000
0
25
50
75
100
125
150
175
200
225
250
275
300
325
350
0
100
200
300
400
500
600
700
800
900
1000
1100
0 50 100 150 200 250
0 50 100 150 200
0 10 20 30 40 50 60
US g.p.m.
Imp g.p.m.
feet
l/min
m³/h
η = 78%
50
68
6HR44/3
6HR44/4
6HR44/5
6HR44/6
6HR44/7
6HR44/9
6HR44/10
6HR44/12
6HR44/15
6HR44/18
6HR44/20
6HR44/25

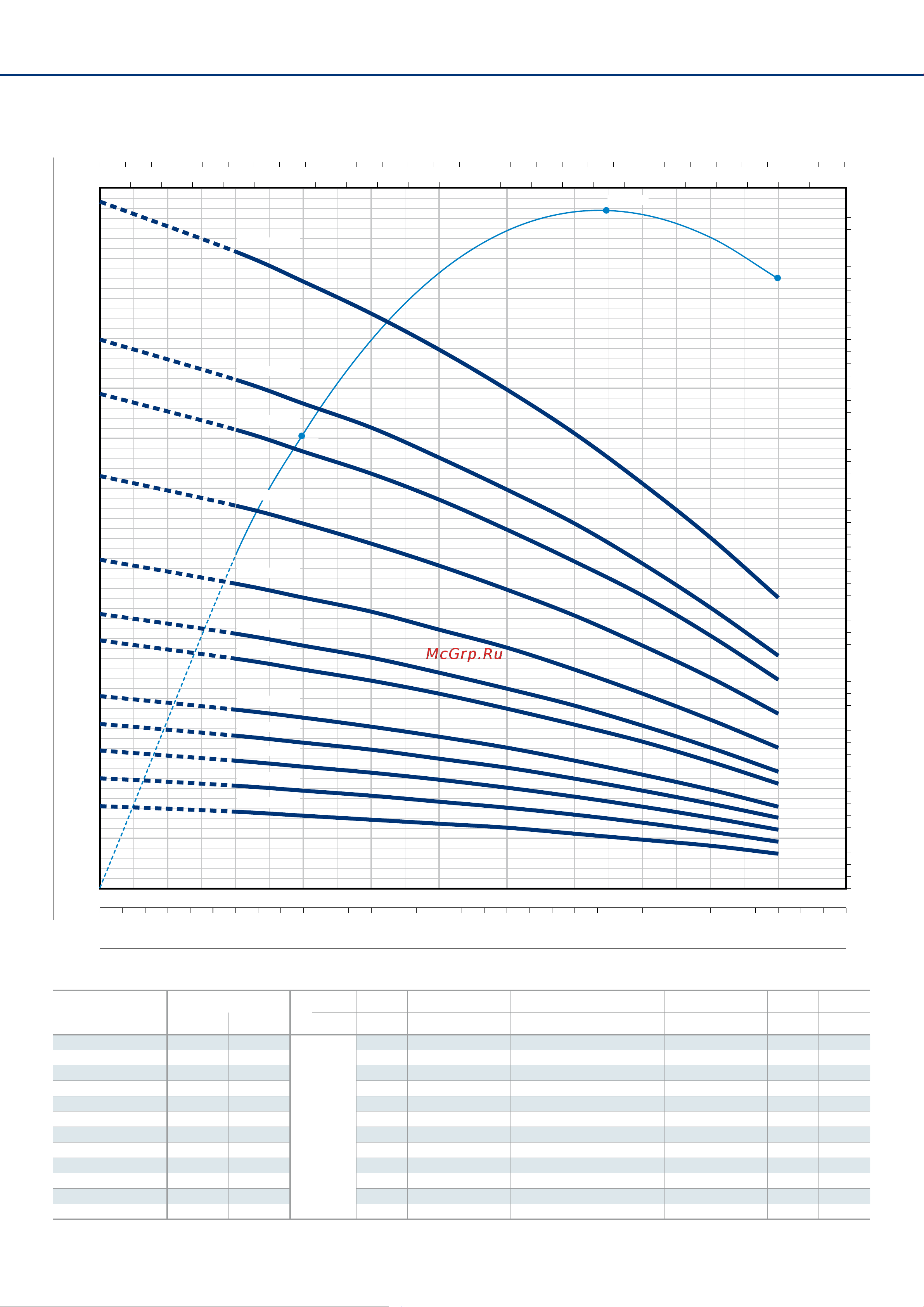

CHARACTERISTIC CURVES AND PERFORMANCE DATA 50 Hz n= 2900 min
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
(1) Pump tted with a 20 HP motor
(2) Pump tted with a 40 HP motor
MODEL POWER (P)
Q
m³/h 0 12 18 24 30 36 42 48 54 60
Three-phase kW HP
l/min 0 200 300 400 500 600 700 800 900 1000
6HR 44/3 5.5 7.5
H
metres
41 38 36 34 32 30 27 24 21 17
6HR 44/4 7.5 10
55 51 48.5 46 43 40 36.5 32.5 28 23
6HR 44/5 7.5 10
68.5 63.5 60.5 57.5 54 50 45.5 40.5 35 29
6HR 44/6 9.2 12.5
82 76 72.5 69 64.5 60 54.5 48.5 42 35
6HR 44/7 11 15
96 89 85 80.5 75.5 70 63.5 56.5 49 40.5
6HR 44/9 13 17.5
(1)
123.5 114.5 109 103.5 97 89.5 81.5 73 63 52
6HR 44/10 15 20
137 127 121 115 107.5 99.5 91 81 70 58
6HR 44/12 18.5 25
164 152 145 138 129 120 109 97 84 70
6HR 44/15 22 30
206 191 182 172 161 149 136 121 105 87
6HR 44/18 26 35
(2)
247 229 218 207 194 179 163 146 126 104
6HR 44/20 30 40
274 254 242 230 215 199 182 162 140 116
6HR 44/25 37 50
343 318 303 287 269 249 227 202 175 145
Flow rate Q
4
Head H (metres)
4
50 Hz | 6HR44
