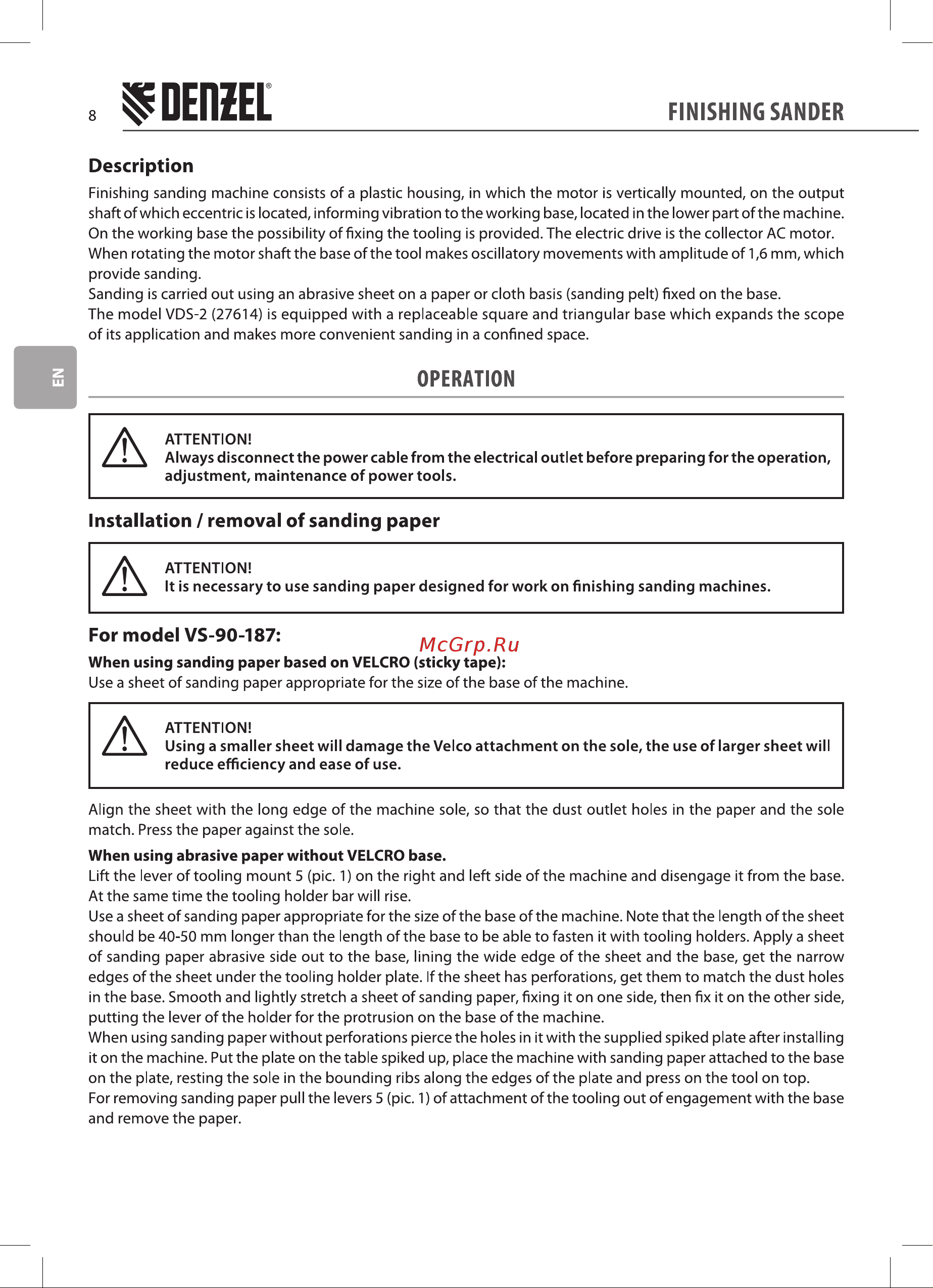

DEHZEL FINISHING SANDER Description Finishing sanding machine consists of a plastic housing in which the motor is vertically mounted on the output shaft of which eccentric is located informing vibration to the working base located in the lower part of the machine On the working base the possibility of fixing the tooling is provided The electric drive is the collector AC motor When rotating the motor shaft the base of the tool makes oscillatory movements with amplitude of 1 6 mm which provide sanding Sanding is carried out using an abrasive sheet on a paper or cloth basis sanding pelt fixed on the base The model VDS 2 27614 is equipped with a replaceable square and triangular base which expands the scope of its application and makes more convenient sanding in a confined space OPERATION A ATTENTION Always disconnect the power cable from the electrical outlet before preparing for the operation adjustment maintenance of power tools Installation removal of sanding paper A ATTENTION It is necessary to use sanding paper designed for work on finishing sanding machines For model VS 90 187 When using sanding paper based on VELCRO sticky tape Use a sheet of sanding paper appropriate for the size of the base of the machine A ATTENTION Using a smaller sheet will damage the Velco attachment on the sole the use of larger sheet will reduce efficiency and ease of use Align the sheet with the long edge of the machine sole so that the dust outlet holes in the paper and the sole match Press the paper against the sole When using abrasive paper without VELCRO base Lift the lever of tooling mount 5 pic 1 on the right and left side of the machine and disengage it from the base At the same time the tooling holder bar will rise Use a sheet of sanding paper appropriate for the size of the base of the machine Note that the length of the sheet should be 40 50 mm longer than the length of the base to be able to fasten it with tooling holders Apply a sheet of sanding paper abrasive side out to the base lining the wide edge of the sheet and the base get the narrow edges of the sheet under the tooling holder plate If the sheet has perforations get them to match the dust holes in the base Smooth and lightly stretch a sheet of sanding paper fixing it on one side then fix it on the other side putting the lever of the holder for the protrusion on the base of the machine When using sanding paper without perforations pierce the holes in it with the supplied spiked plate after installing it on the machine Put the plate on the table spiked up place the machine with sanding paper attached to the base on the plate resting the sole in the bounding ribs along the edges of the plate and press on the tool on top For removing sanding paper pull the levers 5 pic 1 of attachment of the tooling out of engagement with the base and remove the paper
