HANDLING INSTRUCTIONS

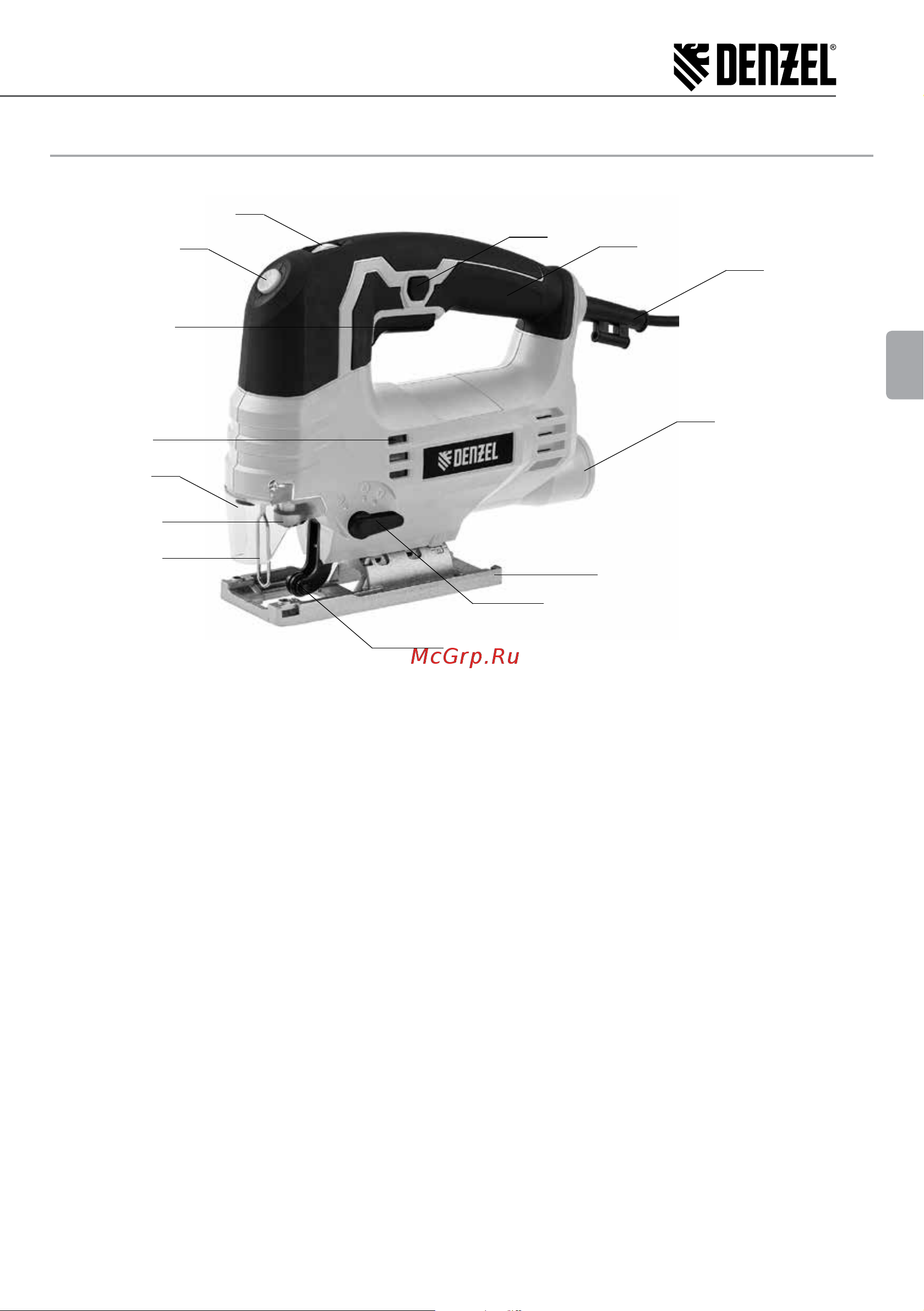

General view of the tool is shown on picture 1.

рiс. 1

1. Speed control

2. Lock on button

3. Transparent dust cover

4. Support platform

5. Switch key

6. Power cable

7. Connector for vacuum cleaner (for model M1Q-TD-

110PD2 (27107) the vacuum cleaner connects to

the adapter located in the support platform)

8. Adjustment knob of pendulum motion

9. Support roller

10. Rod with quick change of blade

11. Protection against contact with the blade

12. Air vents

13. Main handle

14. Light

Description

Electric jigsaw is a machine consisting of electric drive, gearbox and the crank-rocker mechanism that creates

reciprocating motion. The actuator is an AC collector motor, housed in a plastic housing.

Engine control is carried out using the trigger switch 5 (рiс. 1). It is possible to adjust the speed of reciprocating

tooling. The machine also has a button for holding the switch 2 (рiс. 1) for more comfortable long work.
