User Manual
A. Introduction
This product is a battery-powered, true-rms, auto-ranging digital clamp meter
with a 6000 counts, LCD display and backlight.
B. Safety Information
To avoid possible electrical shock, fire, or personal injury, please read all safety
information before you use the product.
(1) Do NOT exceed the “maximum value” indicated in the Specification.
(2) Examine the connection of the test leads and the insulation of the product
before measuring voltage higher than 36V DC or 25V AC.
(3) Disconnect the test leads from the circuit before changing the mode。
(4) Misuse of mode or range can lead to hazards, be cautious. “OL” will be shown
on the display when the input is out of range.
(5) Safety symbols:
C. Specifications
- 1 -
- 4 -
- 2 -
D. Instruction

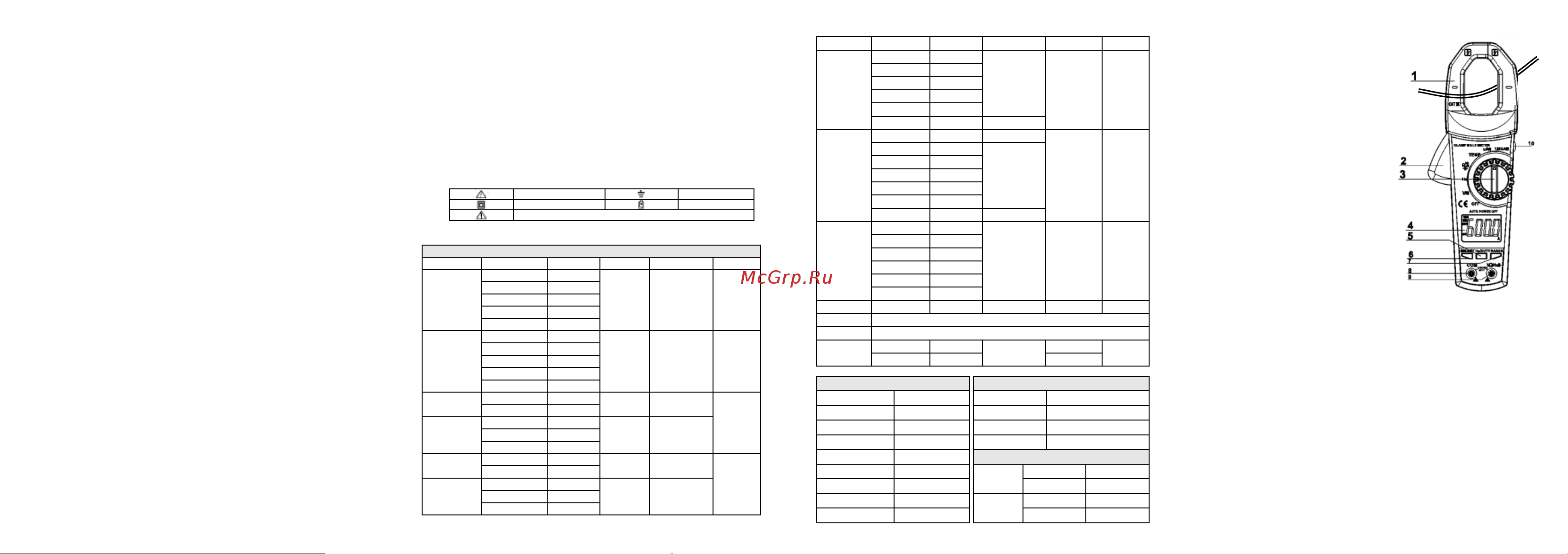

(1) Front Panel（see the picture on the right）
1. Jaws
2. Jaw Release
3. Rotary Switch: To change mode or range。
(from OFF, clockwise)
3a. OFF
3b. AC/DC Voltage
3c. Frequency
3d. Resistance/Continuity/Diode/Capacitance
3e. Temperature
3f. AC/DC Current (μA)
3g. AC/DC Current (A)
4. LCD Display
5. Hz/Duty Cycle button
6. SELECT: To toggle between AC/DC, Resistance/
Continuity/Diode/Capacitance, or ℃/℉, press
this button.
7. RANGE: press this button to enter the manual
range; each push increases the range; when
the highest range is reached, next push will go
back to the lowest range; to exit the manual
range mode, press the button for 2 seconds.
Electrical Specifications
Function Range
Resolution
Accuracy MAX.Value Other
DC Voltage
600.0mV
0.1mV
±(0.5%+3)
1000V
6.000V
0.001V
60.00V
0.01V
600.0V
0.1V
1000V
1V
AC Voltage
600.0mV
0.1mV
±(1.0%+3)
750V
40Hz
-
1kHz
6.000V
0.001V
60.00V
0.01V
600.0V
0.1V
750V
1V
DC Current
(μA)
600.0
μA
0.1
μA
±(1.2%+3)
6000μA
6000
μA
1
μA
DC Current
(A)
60.00A
0.01A
±(2.0%+30)
1200A
600.0A
0.1A
1200A
1A
AC Current
(μA)
600.0
μA
0.1
μA
±(1.5%+3)
6000μA
40Hz
-
1kHz
6000
μA
1
μA
AC Current
(A)
60.00A
0.01A
±(2.0%+30)
1200A
600.0A
0.1A
1200A
1A
8. COM: Common terminal for all measurements.
9. VΩHz: Input terminal for voltage, frequency, resistance, continuity, diode,
capacitance, temperature, current (no more than 6000 μA), and duty cycle
measurements.
10. HOLD: To hold the current reading, press this button and you will see “HOLD” on
the display; press again to cancel. To turn on the backlight, press this button for
more than 2 seconds; long-press again to turn off.
(2) Measure AC/DC Voltage
1. Connect the black test lead to the COM Terminal and connect the red test lead to
the VΩHz Terminal;
2. Turn the rotary switch to the AC/DC Voltage Mode;
3. Press SELECT to toggle between AC/DC;
4. Touch the probes to the correct test points of the circuit to measure the voltage;
5. Read the measured voltage on the display.
*Caution:
a. Do not measure voltage that exceeds the MAX Value as indicated in the
Specifications;
b. Do not touch high voltage circuit during measurements.
- 3 -
Function Range Resolution Accuracy MAX.Value Other
Resistance
600.0
Ω
0.1
Ω
±(0.5%+3)
60MΩ
6.000k
Ω
0.001k
Ω
60.00k
Ω
0.01k
Ω
600.0k
Ω
0.1k
Ω
6.000M
Ω
0.001M
Ω
60.00M
Ω
0.01M
Ω
±(1.5%+3)
9.999nF
0.001nF
±(5.0%+20)
9.999mF
99.99nF
0.01nF
±(2.0%+5)
999.9nF
0.1nF
9.999
μF
0.001
μF
99.99
μF
0.01
μF
999.9
μF
0.1
μF
9.999mF
0.001mF
±(5.0%+5)
Frequency
99.99Hz
0.01Hz
±(0.1%+2)
9.999MHz
999.9Hz
0.1Hz
9.999kHz
0.001kHz
99.99kHz
0.01kHz
999.9kHz
0.1kHz
9.999MHz
0.001MHz
Duty Cycle
1%~99%
0.1%
±(0.1%+2)
Diode √
Continuity √
(-
20~1000)
℃
1
℃
±(2.5%+5）
1000℃
(-
4~1832)℉
1
℉ 1832℉
General Specifications
Display (LCD)
6000 counts
Ranging
Auto/Manual
Material
ABS
Update Rate
3 times/second
True RMS
√
Data Hold
√
Backlight
√
Low Battery
Alert √
Auto Power Off
√
Mechanical Specifications
Dimension
240*90*45mm
Weight
288g
Battery Type
9V 6F22 Battery * 1
Warranty
One year
Environmental Specifications
Operating
Temperature 0~40℃
Humidity
＜75%
Storage
Temperature -20~60℃
Humidity
＜80%
Hazardous Voltage
Earth
Double Insulated
Low Battery
Risk of Danger. Check the User Manual.
