Zotek ZT-TC13 [10/24] Using instruction
![Zotek ZT-TC13 [10/24] Using instruction](/views2/1893303/page10/bga.png)

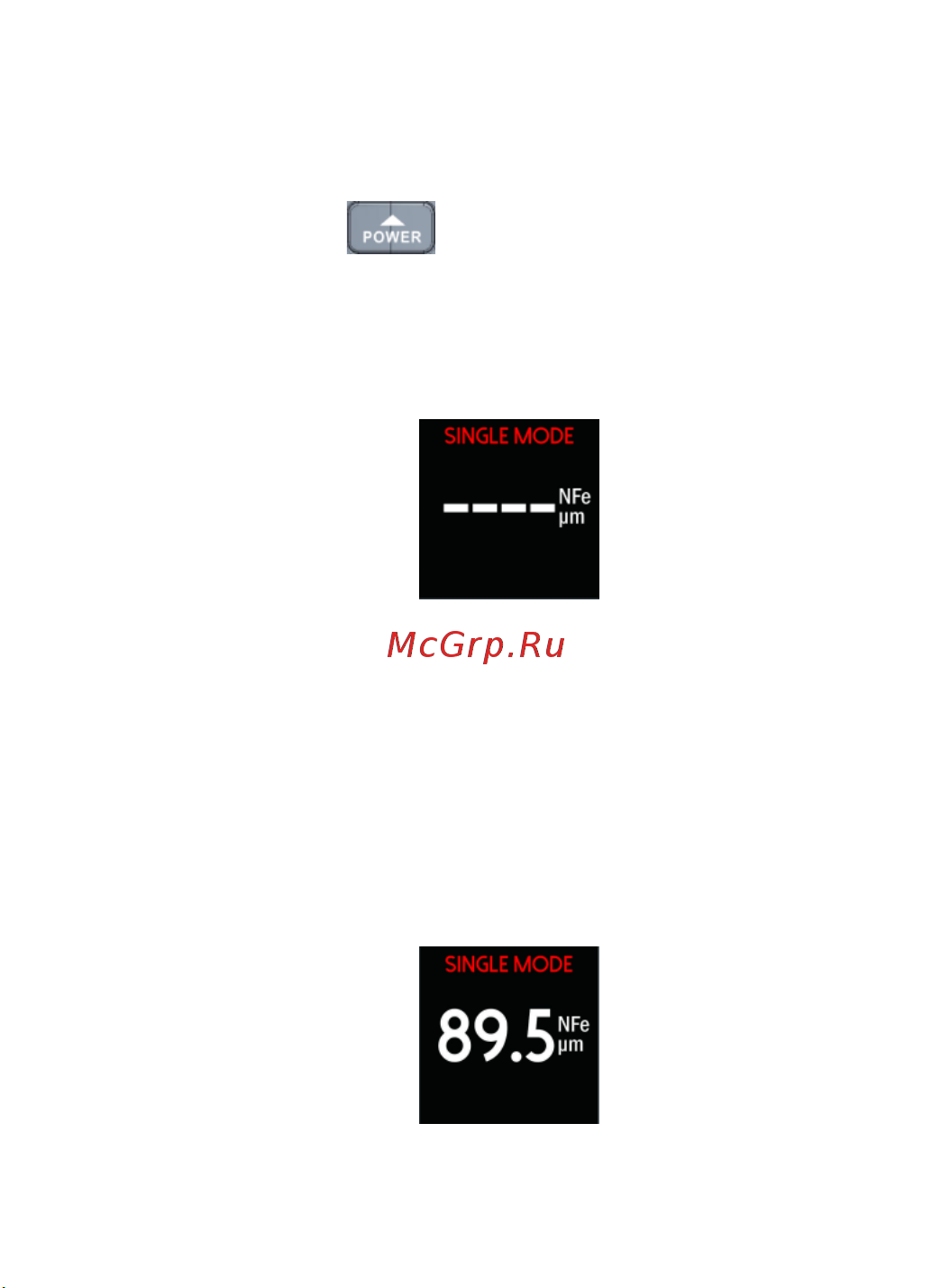

6. Using instruction
(1) Single point test:
a. Short press button to turn it on, it will
calibrate automatically, it will enter into single
point test mode by default , check the
following picture:
b. Now, the single point mode measurement can
be carried out, and the meter can
automatically judge whether the measured is
Fe or NFE substrate, and the displayed unit is
μm by default. check the following picture:
8
