Attention:
a) If you need to change the display unit to mil, you
can enter "system settings" - "unit" setting change
(please refer to the introduction of unit settings later
for the change operation steps).

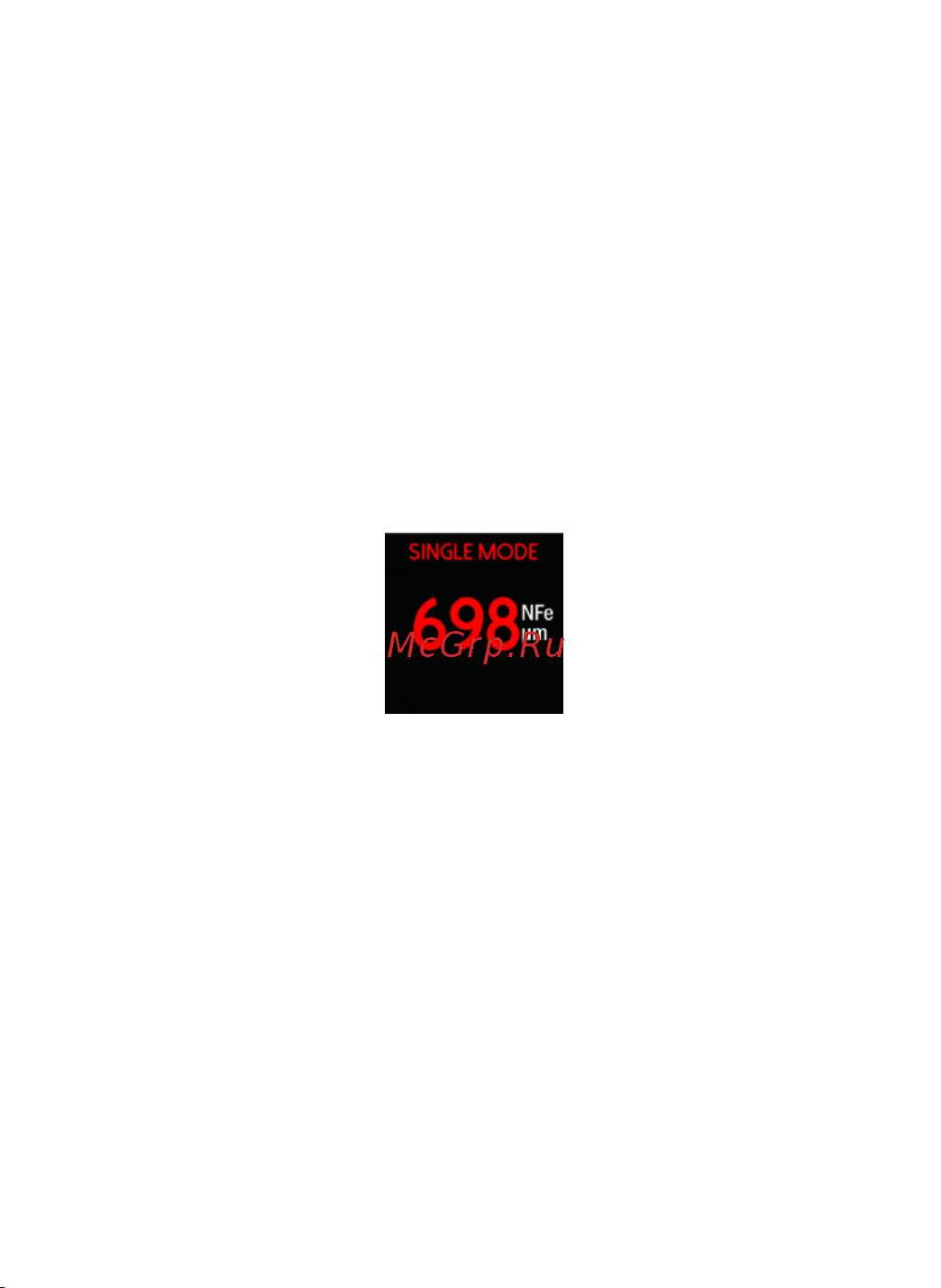

b) When the measured value is lower or higher than
the limit value, the data displayed on the screen will
be displayed in red, as showing in the following
picture:
c) In the single point measurement mode, the speed
of jumping from the previous measurement point to
the next measurement point should not be too fast
to avoid misjudgment.
d) During the measurement, 3-5 points are
selected on the surface of the object to be
measured, each point is measured 5 times, and the
9
