- 8 -
* Ensure that the appliance is not exposed to impacts
* Ensure that the appliance is not squeezed and squahed
* Follow the markings on the package
* Be attentive to carry with original package.
ENVIROMENT AND HUMAN HEALTH
You can contribute to enviroment protection!
Please do not forget to follow the local regulations. Take the inactive electrical
devices to the proper disposal centers.
There is no problem that may damage human and enviroment health during usage.
ASSEMBLY OF THE APPLIANCE
ASSEMBLY OF BODY
* Pass motor shaft throught the hole that is located in the middle of the Fan back
cover,then screw on the 4 unit M5X8 YSB screw , which is supplied with the appliance,
with the screw driver.

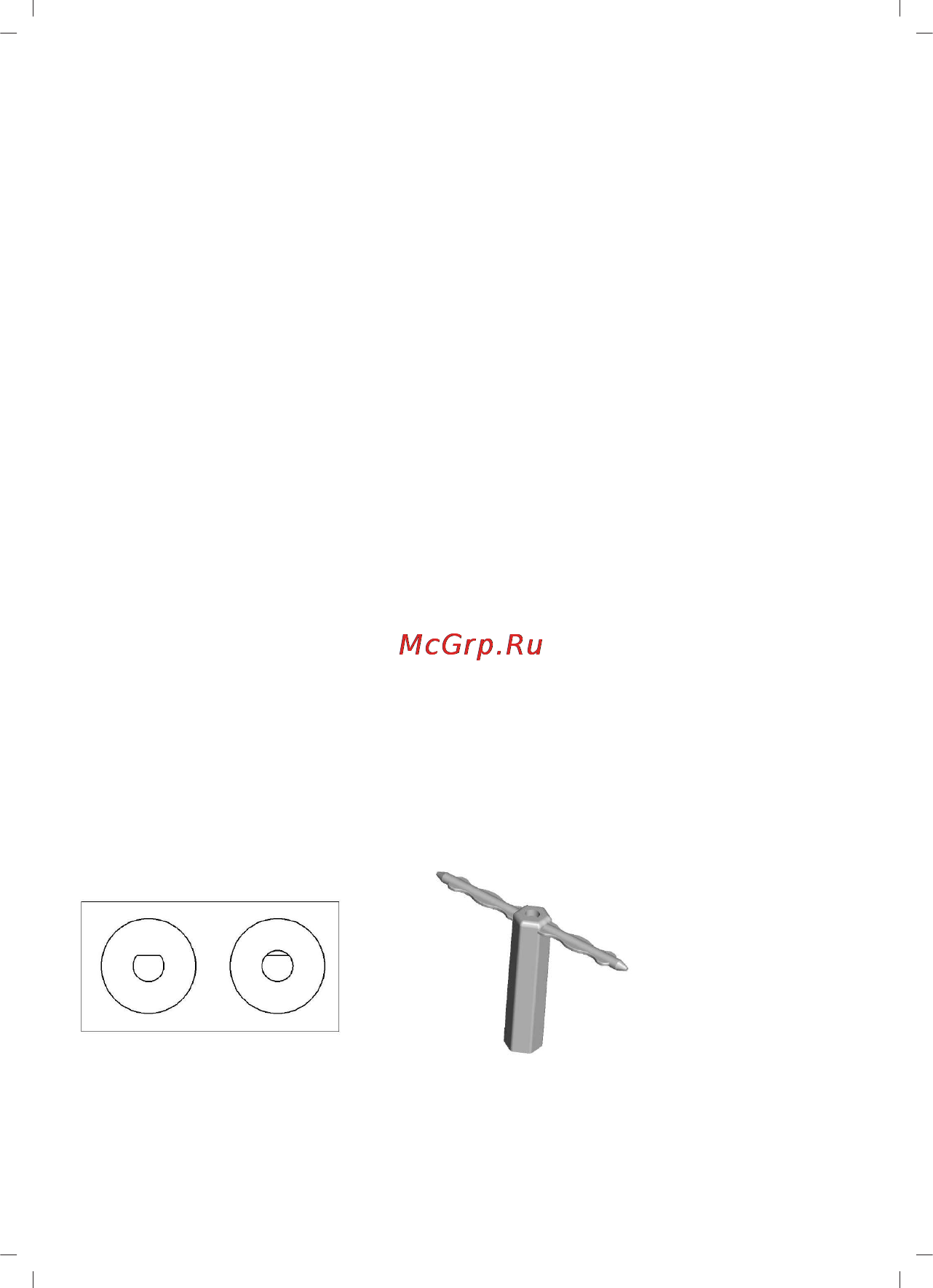

* Mount the blade as the spiles interwine to each other as it shown in Figure 2 ,then
screw the M8 nut with the portable screw driver which is supplied with the product.
* Set the gap on the front cover as shown in Figure 1 ( A) onto the spur on the back cover
( B). Screw the front grill to the rear grill with using 4 unit screw, then tighten it to the
stand which you assembled, with the screw that is located under the motor
Warning: Do not use replacement parts other than the parts that are supplied with the
product
Note: Make sure all the connections are done properly before operating the fan. In case
that the appliance does not work , check the connections.
PARTS NAME
1. Motor, 2. Screw, 3. Rear Gril, 4. Screw, 5. Blade, 6. Nut, 7. Front Gril
Pinyon
Blade Housing
Figure 2 Figure 3
