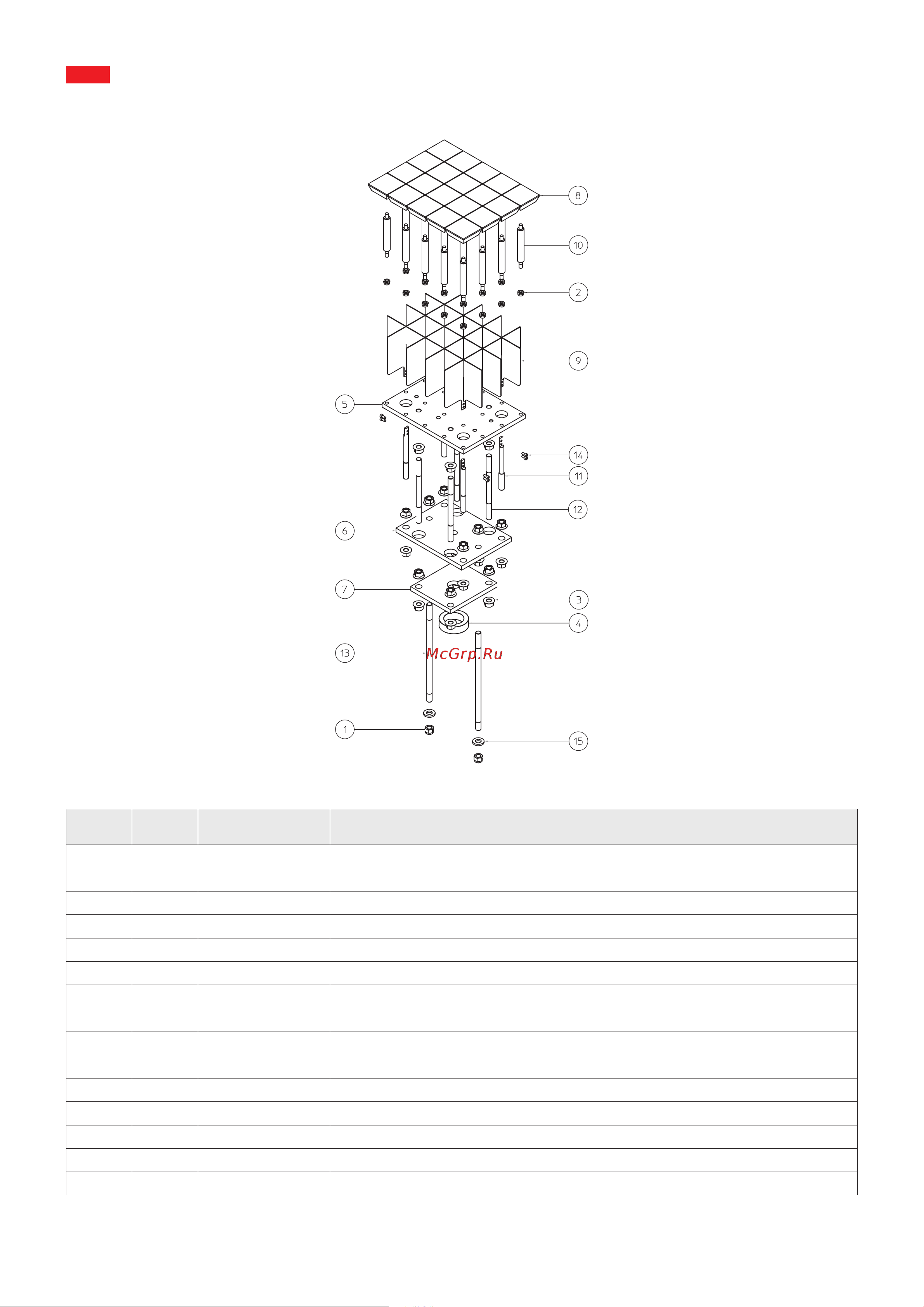

20s DIVISIONS KNIFE GROUP COD. TG000038
POSITION QUANTITY CODE DESCRIPTION
1 2 30081601 NUT SELFLOCKING M10 ZINC.
2 20 30091001 NUT SELFLOCKING M10 ZINC.
3 24 30191601 NUT M16 ZINC.
4 1 30860007 CYLINDER RACING SPACER
5 1 49420159 PRESS SUPPORT PLATE
6 1 49420160 KNIFE SUPPORT PLATE
7 1 49420161 PRESS SUPPORT GUIDE ROD PLATE
8 20 52600004 PRESS PLATES
9 1 60040165 KNIFE
10 20 62000006 PRESS PLATE SUPPORT
11 4 65810010 CUTTING KNIFE SUPPORT SHAFTS
12 4 65810011 PRESS SUPPORT PLATE GUIDE RODS
13 2 65810012 FIXED LIMIT ROD
14 8 69280612 SCREW TCEI M6X12 INOX
15 2 59091635 WASHER D.16X35 SP. 5 ZINC.
