Apach SE A37s [40/44] Electrical group
![Apach SE A37s [40/44] Electrical group](/views2/1897369/page40/bg28.png)
40

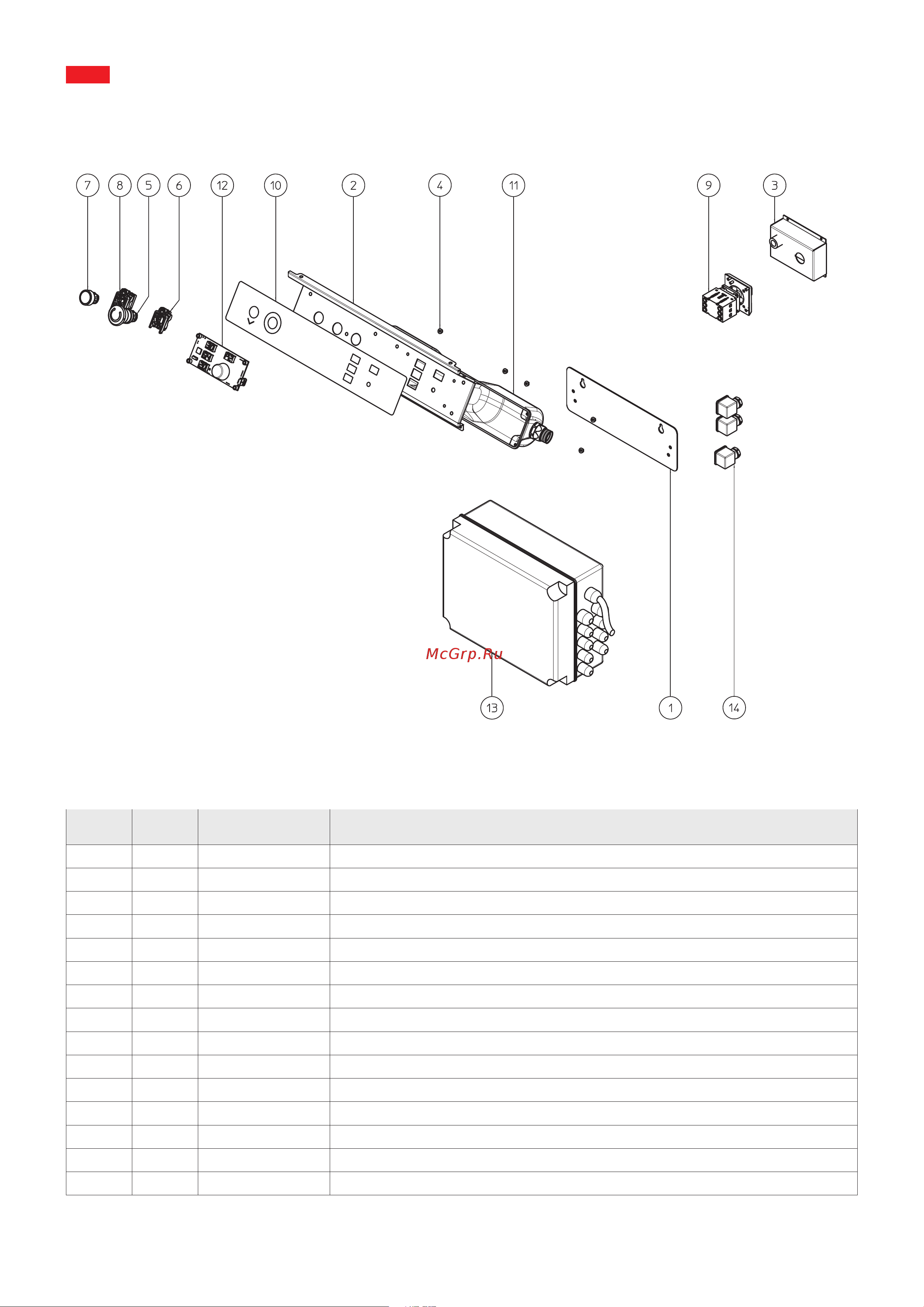

ELECTRICAL GROUP
POSITION QUANTITY CODE DESCRIPTION
1 1 20100417 FIXING PLATE
2 1 20120304 CONTROL PANEL PLATE
3 1 20120324 POWER SUPPLY COVER
4 6 30190401 NUT M4 ZINC.
5 1 53800001 EMERGENCY STOP BUTTON
6 1 53800014 EMERGENCY STOP BUTTON SUPPORT
7 1 53800017 GREEN LIGHT
8 1 53800018 LID LIGHT SUPPORT
9 1 53800033 MAIN SWITCH
10 1 60850007 SERIGRAPHY
11 1 65610001 CONTROL PANEL REAR COVER
12 1 49200023 PLC BOARD PANEL
13 1 53800051 PLASTIC ELECTRICAL BOX (STANDARD)
13 1 53800045 PAINTED STEEL ELECTRICAL BOX (UL)
14 3 25300001 CONNECTOR VDR-220V CNT532 PG09 NE
