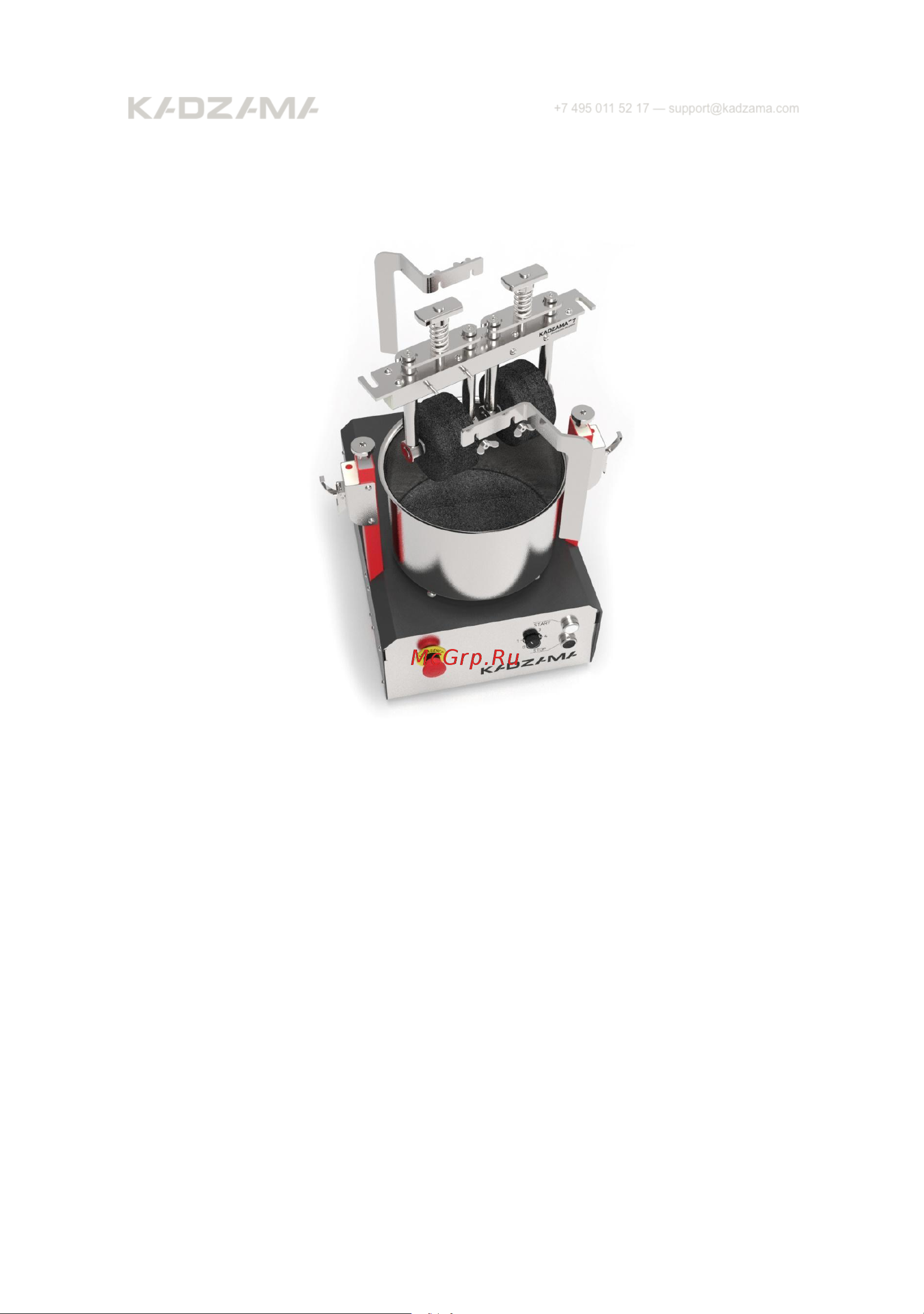

7.2. Install the frame with runners and removable scrapers,

lock it with nuts.

7.3. Before starting the rotation, you need to turn on the circuit

breaker located on the rear wall of the body (under the

casing). Also check button (4): if it turned on — rotate it

clockwise to turn off.

7.4. Melangeur 7 kg is equipped with a lid. To start the tank

rotation, cover it with the lid, placing it on top of the sensor,

and fix it with toggle latches (7). The tank rotation will stop as

soon as the lid is removed. To restart the rotation, fix the lid on

the sensor and press the START button. Choose the tank

rotation speed by turning the control knob (5).

Содержание

A pleasant work experience 2
Acquainted with this manual and understood the rules of 2
Before use carefully read the instructions below 2
Characteristics operating principle and rules of technical 2
Improper use of the equipment can be a source of danger by 2
Kadzama ltd appreciates your purchase and wishes you 2
Operation of a melangeur 7 kg 2
Operation of the device 2
Starting work with the device you confirm that you are fully 2
This manual is designed for study the main technical 2
Melangeur 7 kg is designed for grinding cacao beans sugar 3
Nuts and other dry ingredients to a paste substance 3
Purpose of the device 3
Specifications 3
Назначение изделия 3
Технические характеристики 3
Configuration 4
Safety measures 4
Комплектность 4
Указания мер безопасности 4
Constructive elements description 7
Описание конструктивных элементов 7
Before start 8
Подготовка к работе 8
Exploitation 9
Эксплуатация 9
After the work is complete pour off the produced mass to do this loosen the nuts of the adjustable tensioner for stones unscrew the nuts of the frame with runners and removable scrapers to remove it and remove the tank 12
If there is cacao butter in the recipe it may be added at the same time with cacao nibs that will ease primary grinding it is recommended to add cacao butter in liquid form 12
Load the ingredients gradually in order to avoid tank jamming 12
To make chocolate gradually add roasted cacao nibs add sugar as soon as the mass becomes fluid then wait until you get a homogeneous mass with the dispersion you need 12
Unused millstones need some breaking in to reach maximum grinding intensity 12
Troubleshooting 14
Выявление и устранение неисправностей 14
If all the conditions listed above are met and the tank does not start rotating visually check the fan impeller of the electric motor inform kadzama manager with the result rotating not rotaing for further consultation 15
The tank starts rotating when the knob is turned to the on if available pushing the start button you will hear a click sound and the button itself lights up 15
During the operation keep melangeur clean 16
It is allowed to wash suspension stones unit under the stream of water 16
It is allowed to wipe melangeur with a damp cloth after disconnecting it from the power supply 16
Maintenance and care 16
You can wash the tank under warm water and wash it with detergents do not allow water into the body 16
Обслуживание и уход 16
Are specified in the warranty card 17
The warranty period as well as the terms of warranty service 17
Warranty 17
Гарантия изготовителя 17
Certificate of acceptance 18
Controller signatur 18
Release dat 18
Tcd stamp 18
Свидетельство о приемке 18
