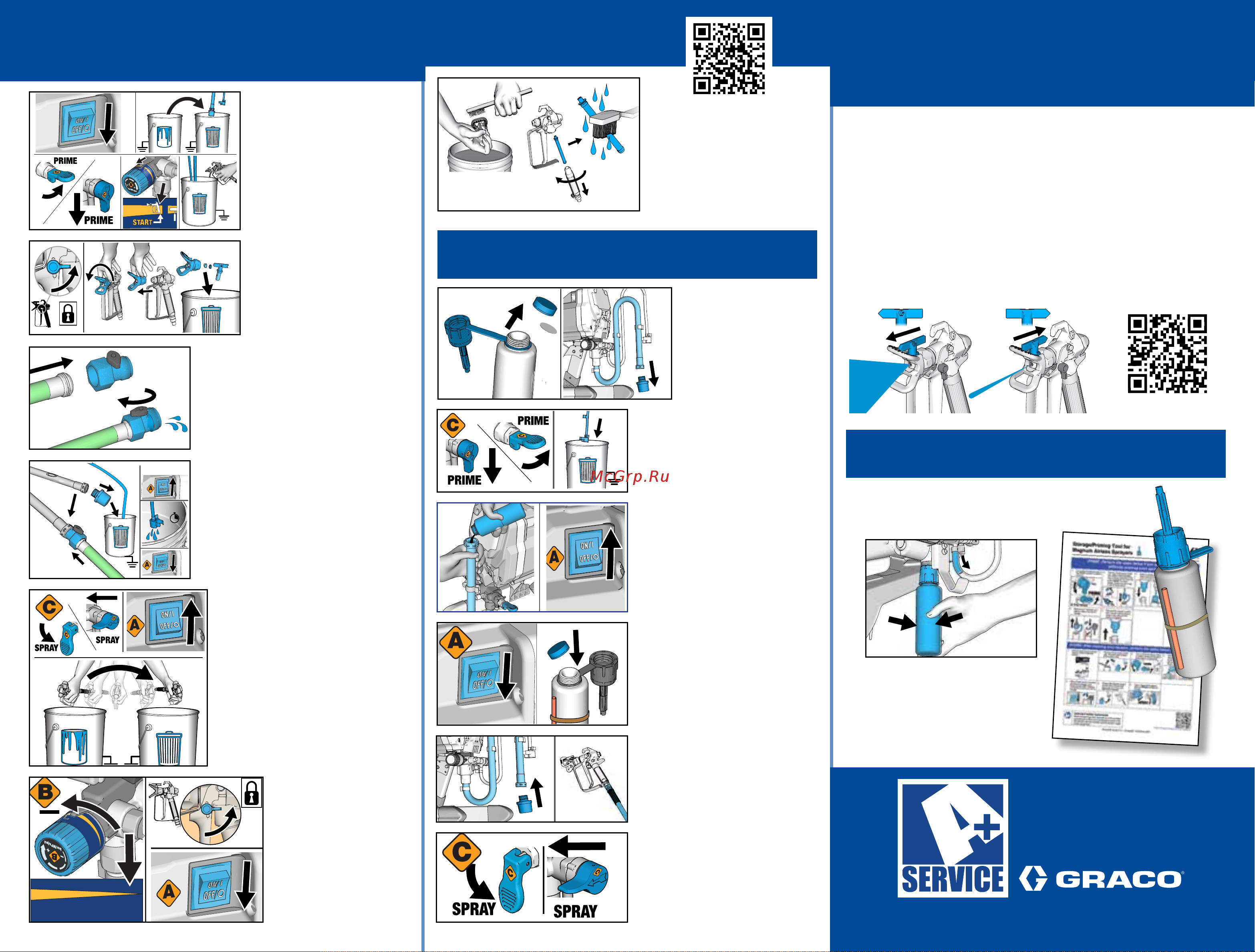

REVERSIBLE
SPRAY TIPS
STORAGE/PRIMING TOOL
Your sprayer is shipped with a Spray Tip to spray paint. If
you are spraying stain see the store associate to purchase a
smaller Spray Tip size.
If your sprayer stops spraying, you most likely have a Spray
Tip clog. Engage Trigger Lock and reverse the Spray Tip to
the UNCLOG position. Disengage Trigger Lock and spray into
a waste area to remove the clog. Engage Trigger Lock and
return the Spray Tip to SPRAY position. See Owner’s Manual
for more information.
Use the Storage/Priming Tool if you are
experiencing difficulty priming your sprayer.
QUESTIONS?
go to
magnumbygraco.eu
ti32204a
1
Turn Power Switch OFF.
Place Suction and Drain
Tubes in waste pail. Move
Prime/Spray Valve to PRIME.
Turn Pressure Control Knob
to START position. Trigger
gun into a waste pail.
2
Engage Trigger Lock.
Remove Spray Tip Guard
assembly from gun and
place in waste pail.
3
Screw Power Flush Valve (included
with sprayer) to a garden hose. Turn
on water. Open Power Flush Valve.
Rinse paint off Suction and Drain Tubes,
inlet screen and Spray Tip and Spray
Tip Guard. Close Power Flush Valve.
4
Unscrew inlet screen and
place in waste pail. Thread
Power Flush Valve to Suction Tube.
Open Power Flush Valve. Turn
Power Switch ON and let water run
through Drain Tube for 20 seconds.
Turn Power Switch OFF.
5
To save paint in hose,
disengage Trigger Lock and
trigger gun into paint pail, move
Prime/Spray Valve to SPRAY and
turn Power Switch ON. When
water comes out of gun, keep gun
triggered and aim into waste pail.
Continue to flush until
water runs clear.
6
Turn Pressure Control
Knob to lowest setting
and release trigger.
Engage Trigger Lock.
Move Prime/Spray
Valve to PRIME and turn
Power Switch OFF.
7
Clean Spray Tip, Spray Tip
Guard and inlet screen with
brush. Remove gun filter and
clean. Reassemble gun filter,
Spray Tip and Spray Tip guard.
20s
1
Remove Pump
Armor bottle cap
and foil seal. If needed,
unscrew inlet screen
from Suction Tube.
2
Move Prime/Spray Valve
to PRIME. Place Drain Tube
in waste pail. Turn Pressure
Control Knob to START position.
3
While holding the Suction
Tube above the sprayer,
pour approximately 2 ounces
(60 ml) of Pump Armor into the
Suction Tube and turn
Power Switch ON.
4
When Pump Armor is flushed
through the sprayer, turn
Power Switch OFF. Replace
and tighten child-proof cap
for storage.
5
Screw inlet screen back
to Suction Tube. Ensure
that spray gun and hose
stay attached to sprayer.
6
Move Spray/Prime
valve to SPRAY position
for storage. Turn Power Switch
OFF and unplug sprayer from
outlet.
3A5655 Revision A, February 2018, Original Instructions. This Quick Guide contains English.
Source Manuals: 3A5709, MM 3A5655. Copyright 2018
CLEANUP
Garden hose cleanup for water-based paints only.
See Owners Manual for pail cleanup or oil-based materials.
STORAGE
Perform CLEANUP before STORAGE.
CLEANUPcontinued
See your Storage/Priming
Tool Instruction Guide for
information on how to use
the Priming/Storage Tool.
SPRAY
UNCLOG
magnum.graco.com/rac
magnum.graco.com/quickcleanup
