Graco Ultra Max II 695 17E633 [18/22] Parts pump 17h827 17h835 17h837
![Graco Ultra Max II 695 17E634 [18/22] Parts pump 17h827 17h835 17h837](/views2/1899673/page18/bg12.png)

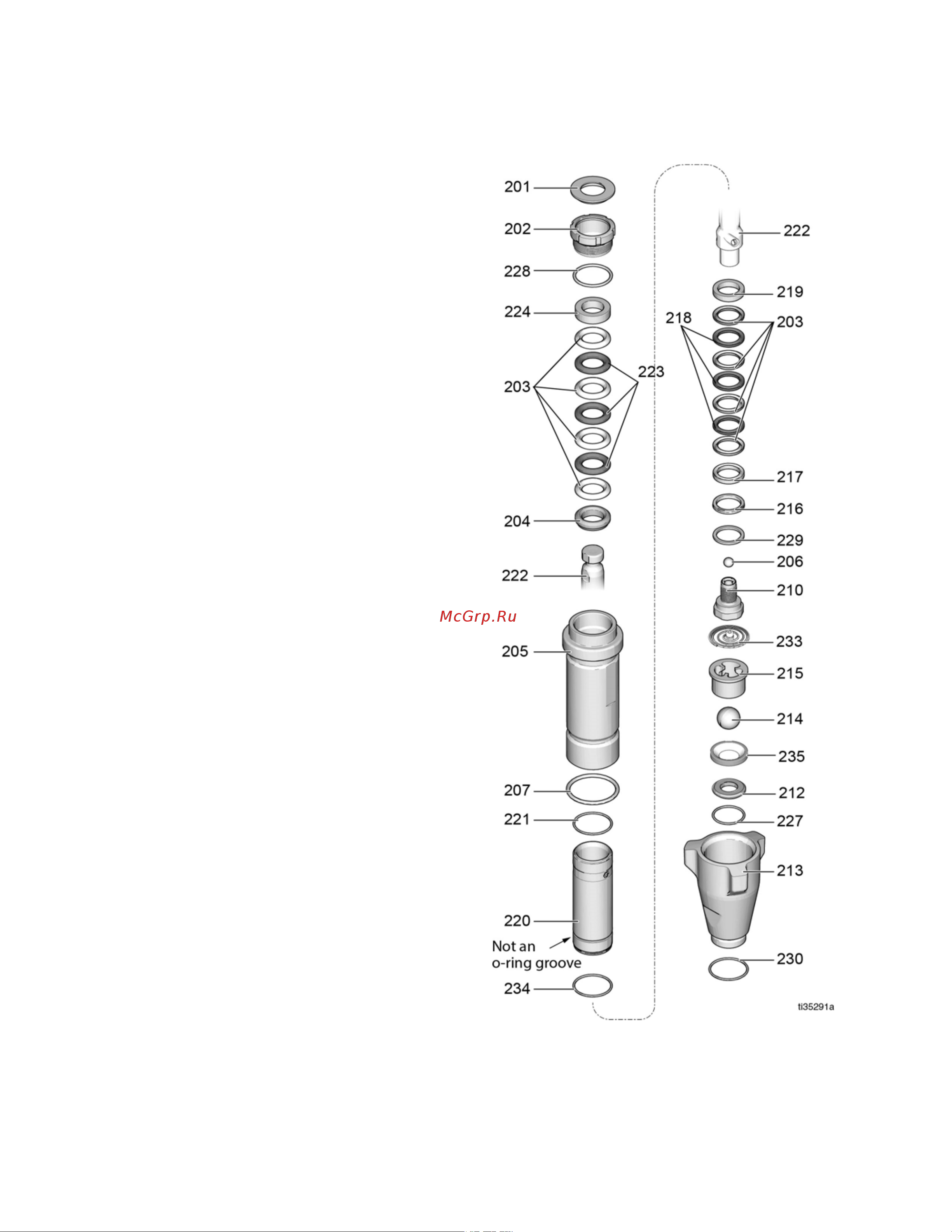

Parts - Pump 17H827, 17H835, 17H837
18 3A6583A
Parts - Pump 17H827, 17H835, 17H837
Ref. Part Description Qty.
201*
112590 SEAL, throat
1
202 16X768 NUT, packing
1
203*
193722 V-PACKING, throat, V-Max,
UHMWPE, blue
8
204*
15G658 GLAND, male, throat
1
205 CYLINDER, pump
1
17H869 Model 17H827
17H873 Model 17H835
17H875 Model 17H837
206*
17R047 BALL, check (Ceramic)
1
207*
160325 PACKING, o-ring
1
210 249177 VALVE, piston
1
212 KIT, seat, carbide
1
17H889 Model 17H827 includes 214, 227
(Ceramic check ball)
24N013 Model 17H835, 17H837 includes 214,
227, 233 (ceramic check ball)
213 VALVE, intake (foot)
1
15E655 Model 17H827
15A303 Model 17H835, 17H837
214 BALL, check, inlet
1
17Y504* Model 17H827 (Ceramic)
17R046
Model 17H835, 17H837 (Ceramic)
215 GUIDE, ball
1
198505 Model 17H827
17Y281 Model 17H835, 17H837
216*
119636 WIPER, piston
1
217*
189588 GLAND, female, piston
1
218*
15E639 V-PACKING, leather, piston
3
219*
189585 GLAND, male, piston
1
220 249121 SLEEVE, cylinder, MaxLife
1
221*
108822 O-RING, ptfe
1
222 ROD, piston
1
17H880 Model 17H827
17H883 Model 17H835
17H885 Model 17H837
223*
112591 V-PACKING, leather, throat
3
224*
15G657 GLAND, female, throat
1
227*
107098 O-RING, ptfe
1
228*
156593 O-RING
1
229*
15J800 WASHER, backup
1
230* 118494 O-RING, fluoroelastomer
(Model 17H827 only)
1
233 SPRING, intake, ball
1
249770 Model 17H827
24E027 Model 17H835, 17H837
234*
17E793 O-RING, FX90
1
235 17Y288 SEAL, ball guide (Model 17H835,
17H837)
1
* These parts are also included in Repair Kit 17H844
(ceramic balls), which may be purchased separately.
These parts are also included in Repair Kit 17H852
(ceramic balls), which may be purchased separately.
