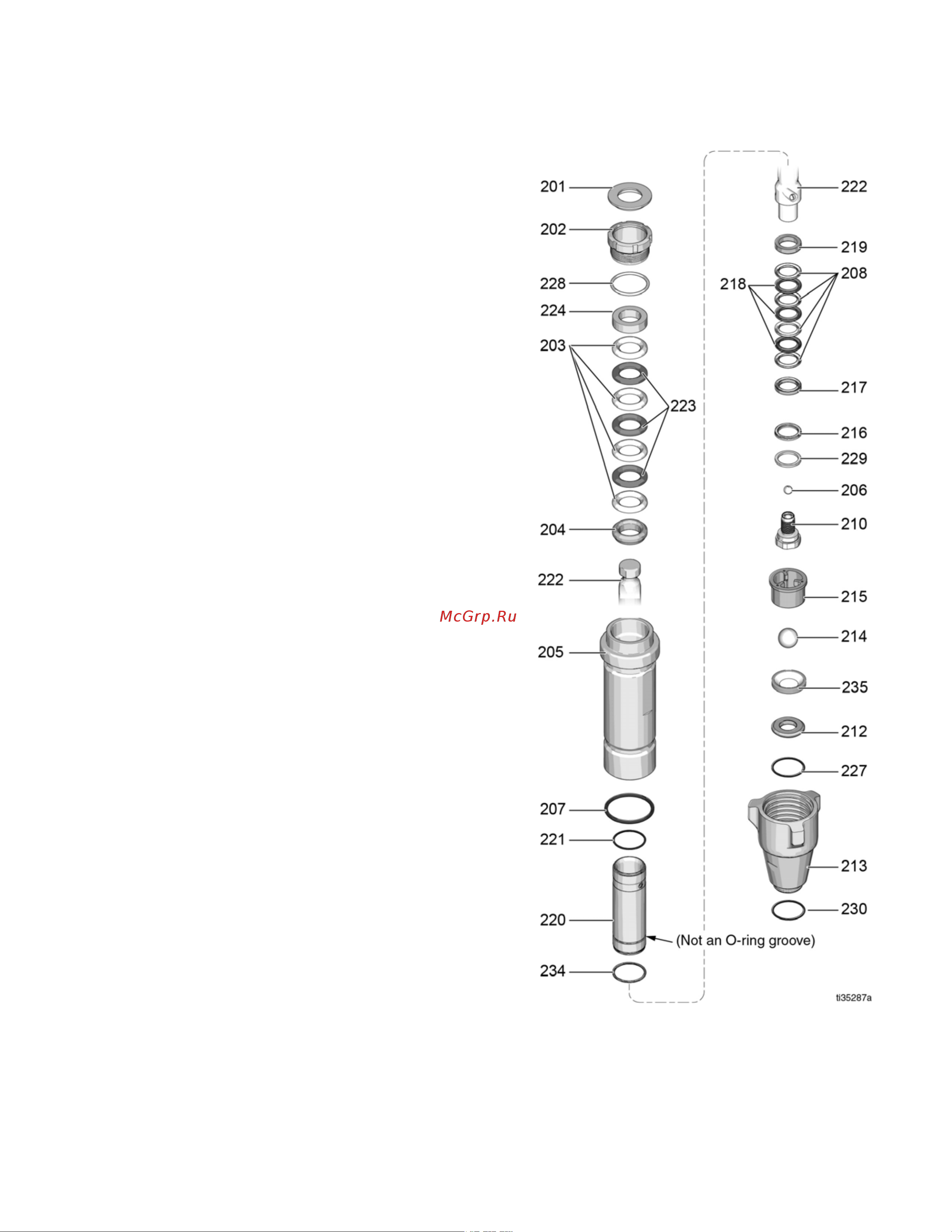

Parts - Pump 17H826, 17H836
14 3A6583A
Parts - Pump 17H826, 17H836
Ref. Part Description Qty.
201*† 183171 SEAL, throat
1
202 193032 NUT, packing
1
203*† 193124 V-PACKING, throat, V-Max,
UHMWPE, blue
4
204*† 15C989 GLAND, male, throat
1
205 CYLINDER, pump
1
17H868 Model 17H826
17H874 Model 17H836
206*† 124249 BALL, check
(Ceramic)
1
207*† 156633 PACKING, o-ring
1
208*† 128779 V-PACKING, piston, UHMWPE, blue
4
210 14U993 VALVE, piston
1
212 KIT, seat, carbide
1
17H888 Model 17H826 includes 214, 227
244571
Model 17H836 includes 214, 227
213 VALVE, intake (foot)
1
15E654 Model 17H826
196753 Model
17H836
214 BALL, check, inlet
1
17R046* Model 17H826 (Ceramic)
17Y533† Model
17H836
(Ceramic)
215 GUIDE, ball
1
193027 Model 17H826
17Y280 Model
17H836
216*† 118504 WIPER, piston
1
217*† 183185 GLAND, female, piston
1
218*† 128296 V-PACKING, brown poly seal
3
219*† 183178 GLAND, male, piston
1
220 257031 SLEEVE, cylinder
1
221*† 107098 O-RING, ptfe
1
222 ROD, piston
1
17H879 Model 17H826
17H884 Model 17H836
223*† 183175 V-PACKING, leather, throat
3
224*† 15C990 GLAND, female, throat
1
227*† 108526 O-RING, ptfe
1
228*† C20987 O-RING
1
229*† 15C998 WASHER, backup
1
230* 118494 O-RING, fluoroelastomer
(Model 17H826)
1
234*† 17E792 O-RING, FX90
1
235 17Y287 SEAL, ball guide (Model 17H836)
1
* These parts are also included in Repair Kit 17H843
(stainless steel balls), which may be purchased separately.
† These parts are also included in Repair Kit 17H850
(ceramic balls), which may be purchased separately.
