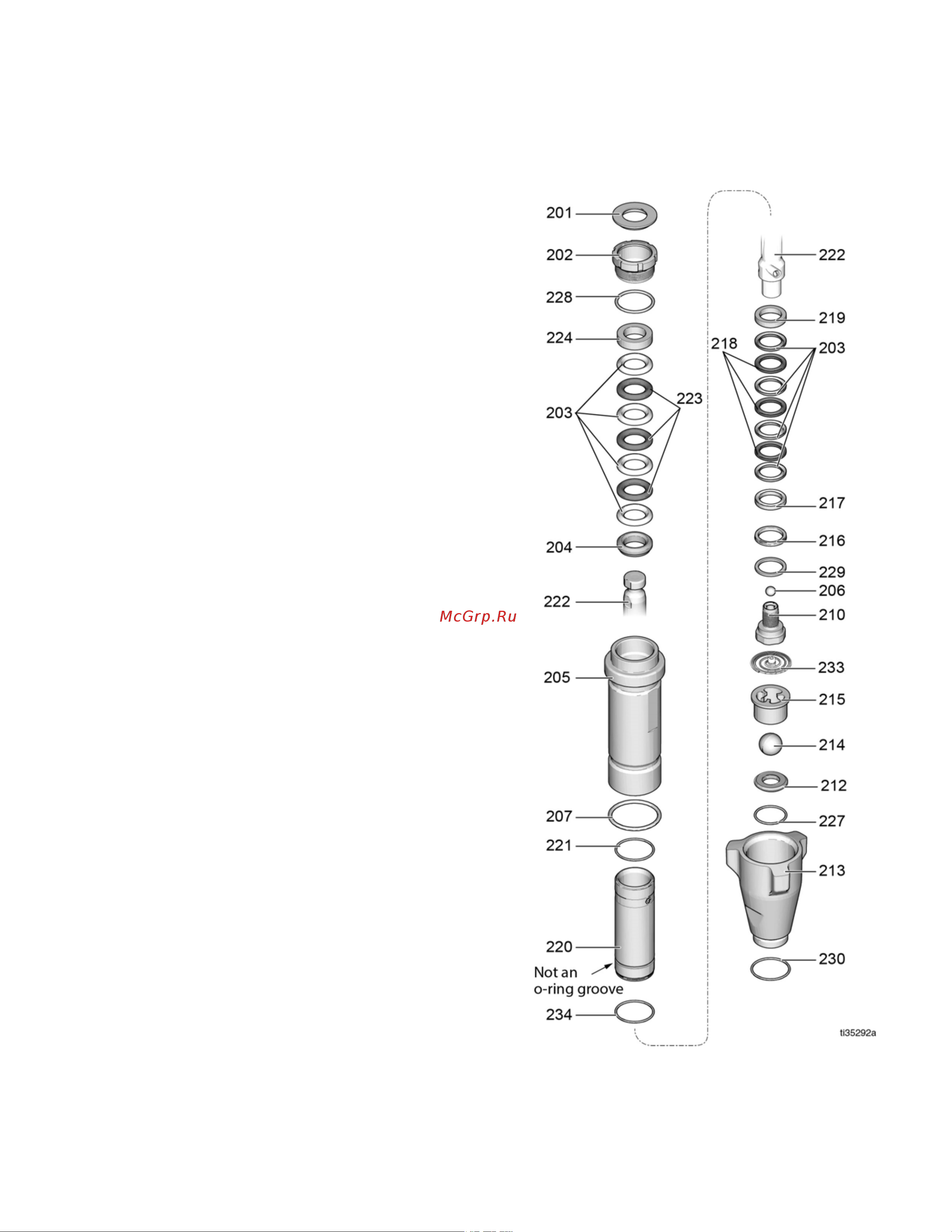

Parts - Pump 17H825
3A6583A 19
Parts - Pump 17H825
Ref. Part Description Qty.
201* 112590 SEAL, throat
1
202 16X768 NUT, packing
1
203* 193722 V-PACKING, throat, V-Max,
UHMWPE, blue
8
204* 15G658 GLAND, male, throat
1
205 17H867 CYLINDER, pump
1
206* 107203 BALL, check (Stainless Steel)
1
207* 160325 PACKING, o-ring
1
210 249177 VALVE, piston
1
212 240918 KIT, seat, carbide includes 214, 227
(stainless steel check ball)
1
213 15E655 VALVE, intake (foot)
1
214* 107167 BALL, check, inlet (Stainless Steel)
1
215 198505 GUIDE, ball
1
216* 119636 WIPER, piston
1
217* 189588 GLAND, female, piston
1
218* 15E639 V-PACKING, brown, piston
3
219* 189585 GLAND, male, piston
1
220 249121 SLEEVE, cylinder, MaxLife
1
221* 108822 O-RING, ptfe
1
222 17H878 ROD, piston
1
223* 112591 V-PACKING, leather, throat
3
224* 15G657 GLAND, female, throat
1
227* 107098 O-RING, ptfe
1
228* 156593 O-RING
1
229* 15J800 WASHER, backup
1
230* 118494 O-RING, fluoroelastomer
1
233 249770 SPRING, intake, ball
1
234* 17E793 O-RING, FX90
1
* These parts are also included in Repair Kit 17H840
(stainless steel balls), which may be purchased separately.
