Repair
Repair Repair
Repair
Heated Heated
Heated
Hose Hose
Hose
Refertoyourheatedhosemanualforreplacement
hoseparts.
Check Check
Check
Hose Hose
Hose
Wires Wires
Wires
1.PerformShutdown,page46.NOTE: NOTE:
NOTE:
Whiphose
mustbeconnected.
2.Removethecover.

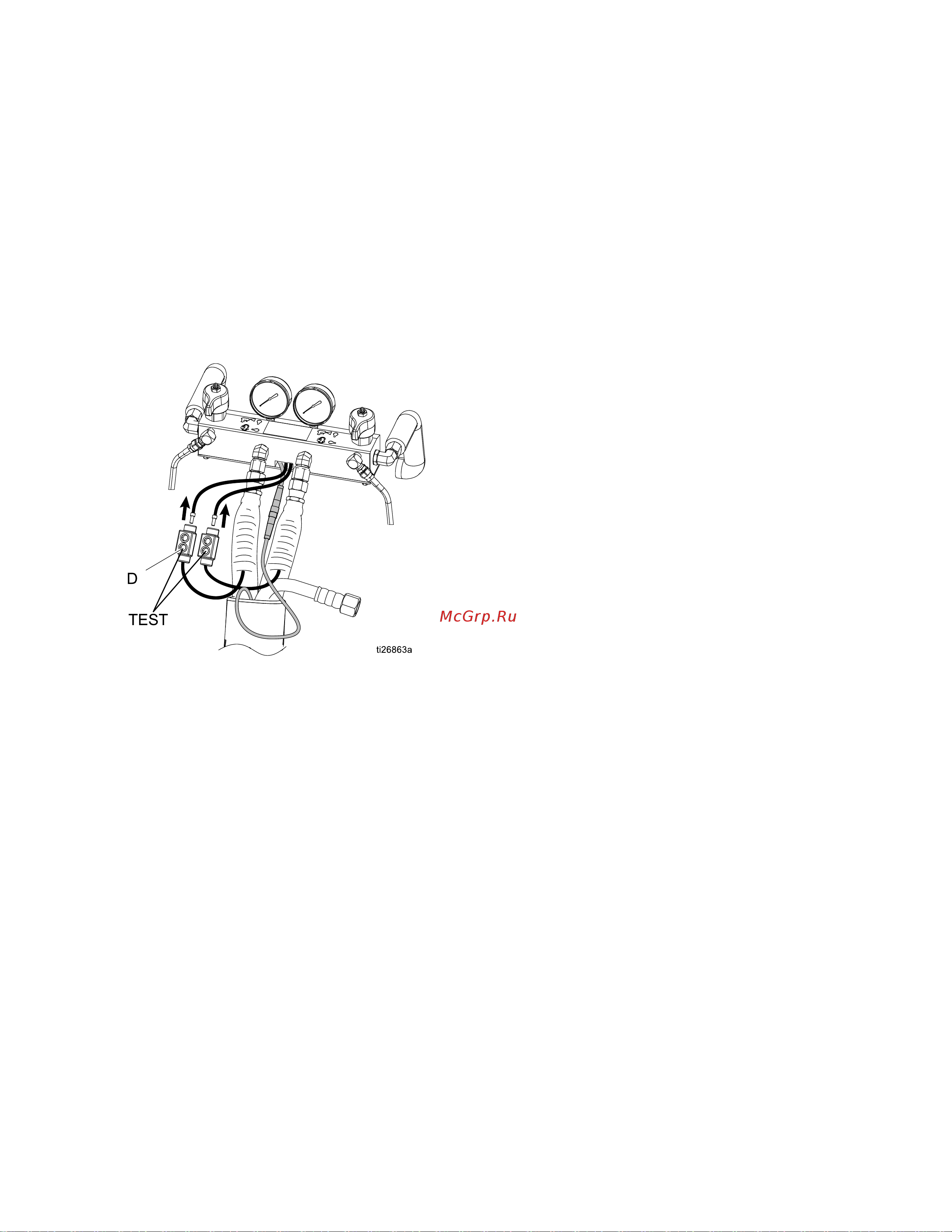

3.ForseriesAonly:Disconnecthoseconnector
(D)atReactor.
Figure13
4.Disconnectsystemwiresfromterminalblock.
5.Useandohmetertocheckbetweenthehose
wires.Thereshouldbecontinuity.
6.Ifthehosefailsthetest,retestateachlengthof
hosefromthesystemouttothegun,including
whiphose,untilthefailureisisolated.
7.Reconnectwiresandinstallthecover.
68 333024T
