Parts
18 3A7683G
Parts

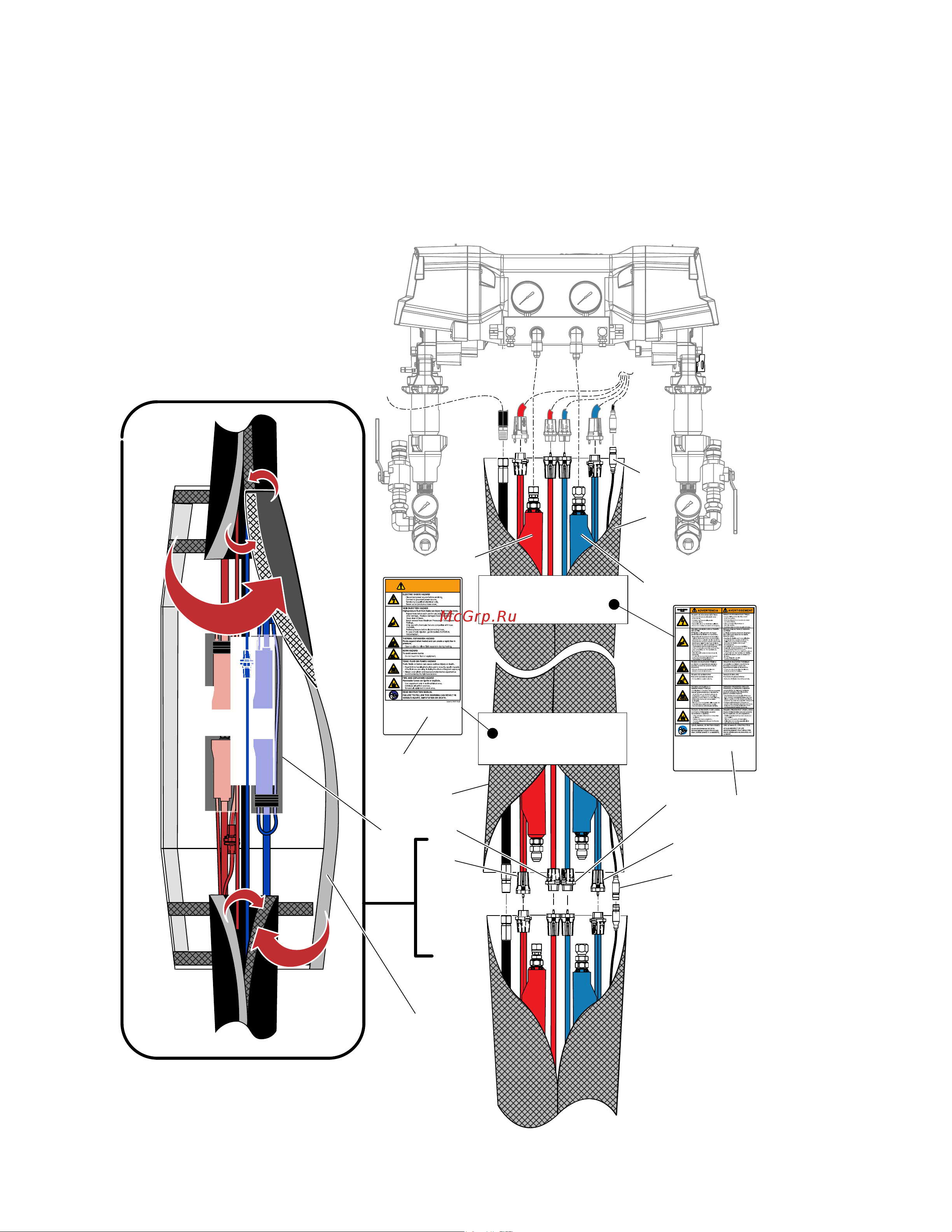

Internally Heated Hose (25P437)
ti40110a
27
2
1
19
7
7
19
30
31
33
32
13
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
WARNING
11
*
*
*
*
36
NOTE: The hose model is shown
with the optional sensor cable, but
is representative of all internally
Heated Hoses.
