Hardware Connections

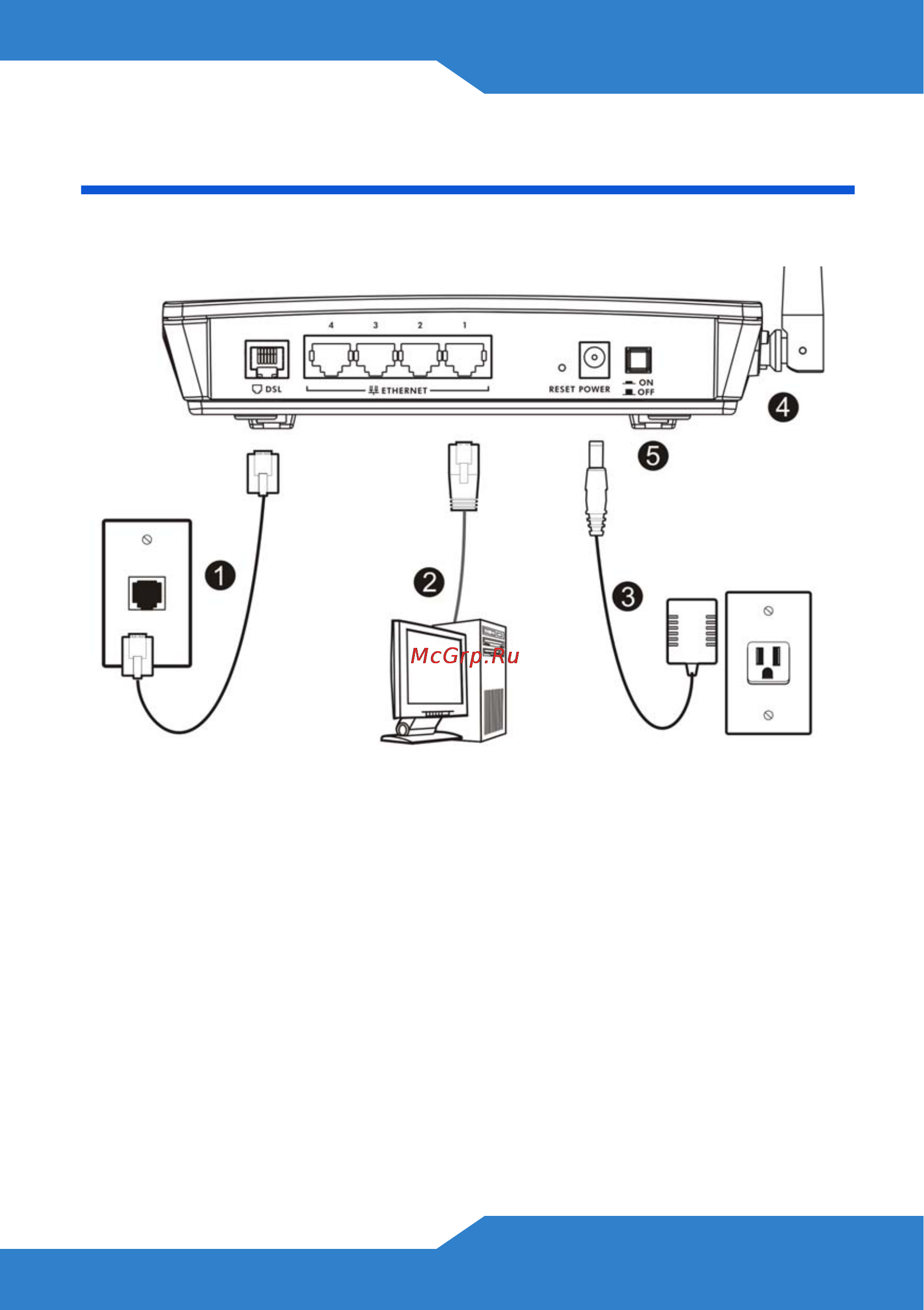

This section shows you how to set up your P-870H/HW Series.

1. DSL: Use a telephone wire to connect this port to a telephone jack (or

the DSL or MODEM jack on a splitter, if one is already installed).

2. ETHERNET 1-4: Use an Ethernet cable to connect a computer to this

port for initial configuration and/or Internet access.

3. Use the power adaptor provided with your P-870H/HW Series to

connect an appropriate power source to this socket.

4. Attach the antenna onto the P-870HW Series. The antenna is not

available on the P-870H Series.

5. Push the power switch to the on position.
