Operation
3A6283H 45

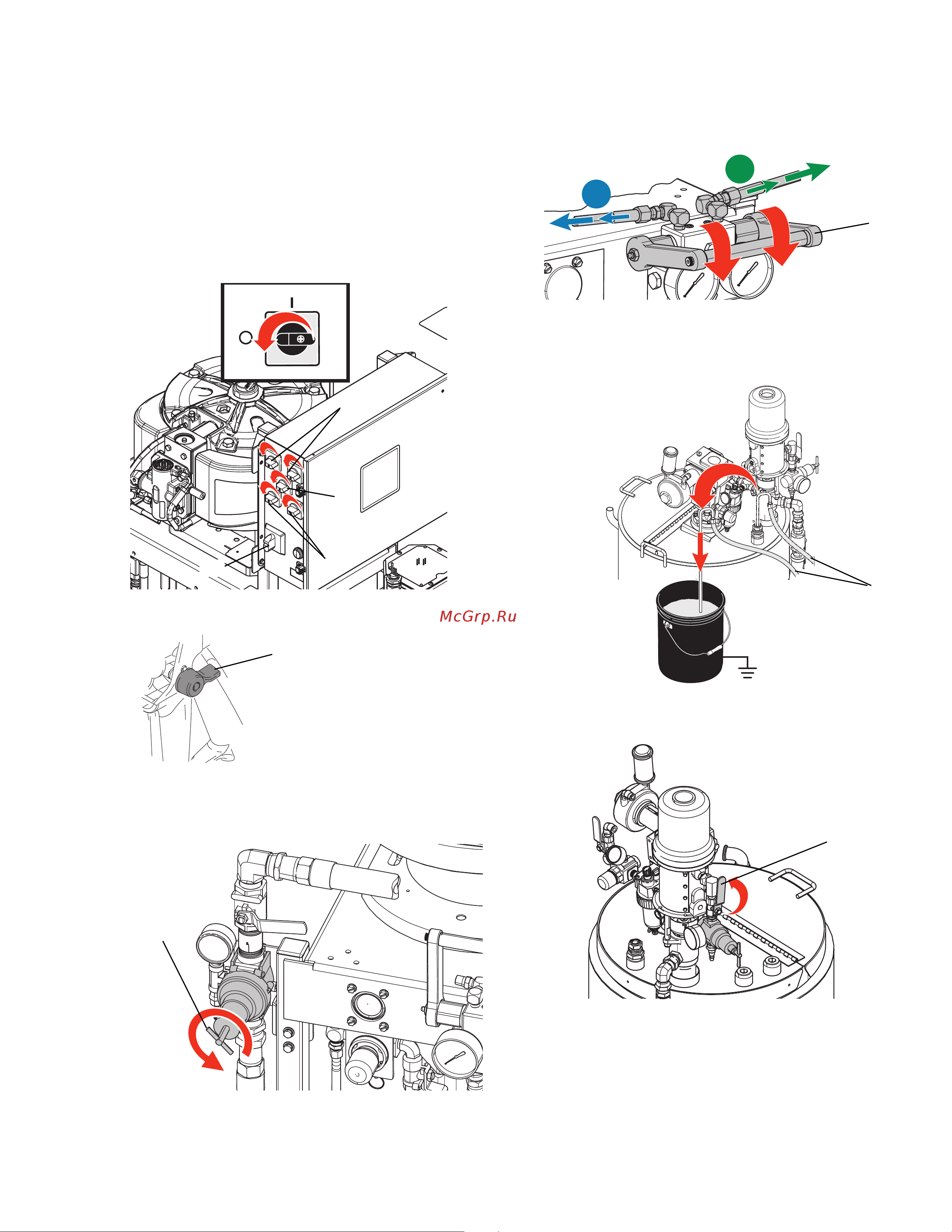

Flush Hoppers Procedure
1. Follow the Flush Mixed Material procedure on
page 44.
2. Turn off all heater switches (ZB, ZE, ZN) and the
main power switch (MP). Allow the system to cool
before flushing.
3. Engage the trigger lock (TL).
4. Turn the XP-hf motor air pressure regulator (CB)
fully counter-clockwise to shut off.
5. Open the recirculation handle (AC).
6. Move the recirculation lines (U) to separate
grounded fluid containers and pump remaining
spray material out of the system.
7. Open the feed pump air valve (EM) and pump
material out of the hopper.
WLD
ZB
ZE
ZN
MP
TI1949a
TL
WLD
CB
WLD
B
A
AC
WLE
U
WLD
EM
