Contracor DMH [2/4] Назначение

CONTRACOR DMH remote control handle/Fernbedienungshebel/Пульт дистанционного управления

Function

The Contractor remote control handle DMH is designed for installation on Contractor blast

machines DBS-100RC/DBS-100RCS/DBS200RC/DBS-200RCS to perform within remote

control valve RCV.

Allgemeine Informationen

Der Contracor Fernbedienungshebel DMH ist für die Verwendung in Strahlmaschinen

DBS-100RC/DBS-100RCS/DBS200RC/DBS-200RCS in Verbindung RCV Fernbedienung

konzipiert.

Назначение

Пульт ДУ DMH предназначен для установки на пескоструйные аппараты Contracor DBS-

100RC/DBS-100RCS/DBS-200RC/DBS-200RCS для работы в составе блока дистанцион-

ного управления RCV.

Major components , description of mechanism and usage

By pressing the lever (3) the remote control valve RCV will be powered and compressed air

ows in the abrasive blast hose. By intentional or unintentional (emergency) release of the

lever (3) the spring supported lock (4) will returned in vertical position. The remote control

valve RCV will be turned off and compressed air supply will be shut off.

Hauptkomponente und Funktionsprinzip

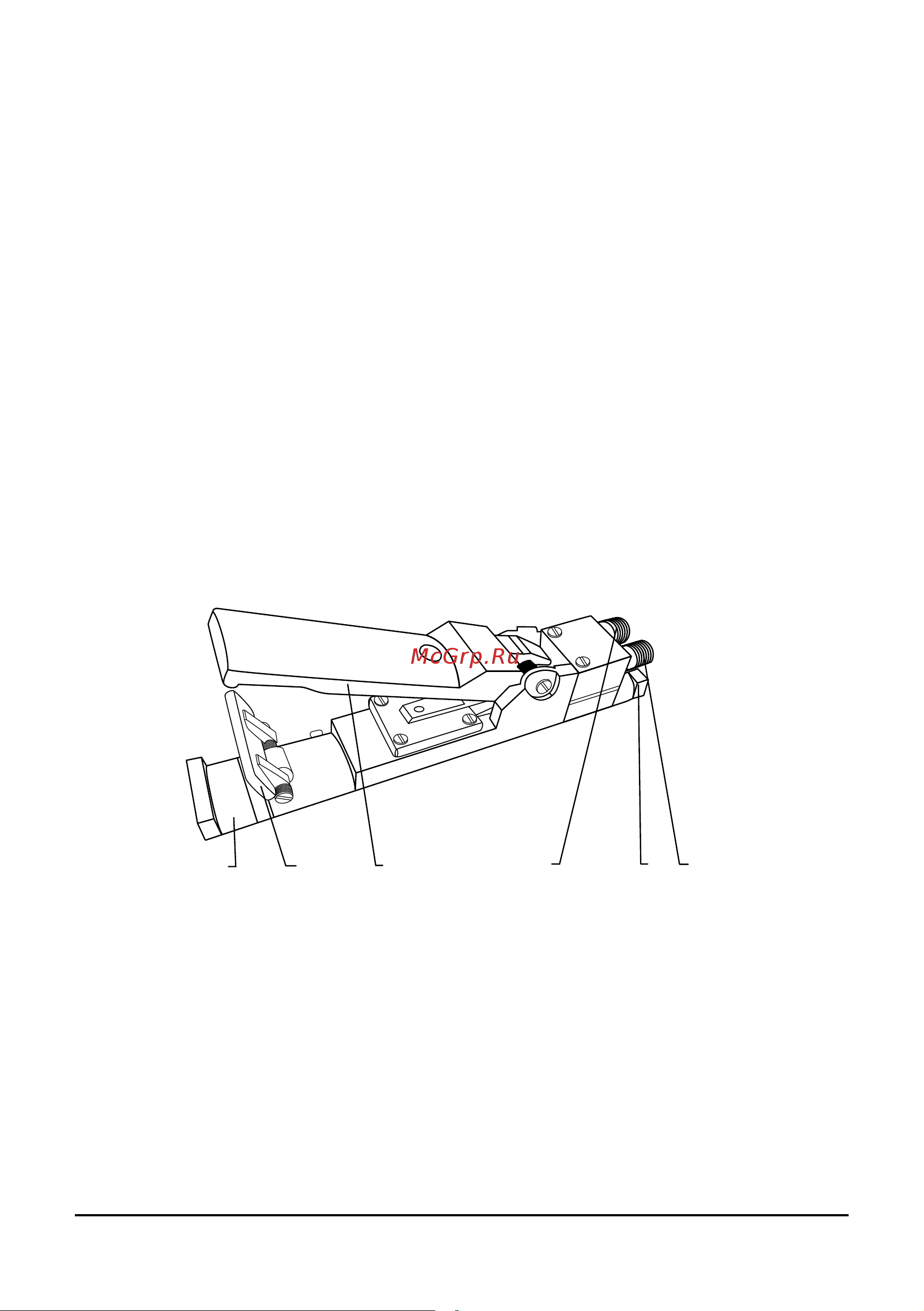

1 - Drucklufteingang; 2 – Druckluftausgang; 3 – Hebel;

4 – Riegel ; 5 – Befestigung

4 3

2 5 1

1 - Inlet, compressed air; 2 - Outlet, compressed air; 3 – Lever; 4 – Lock, 5 - Band xing plate
